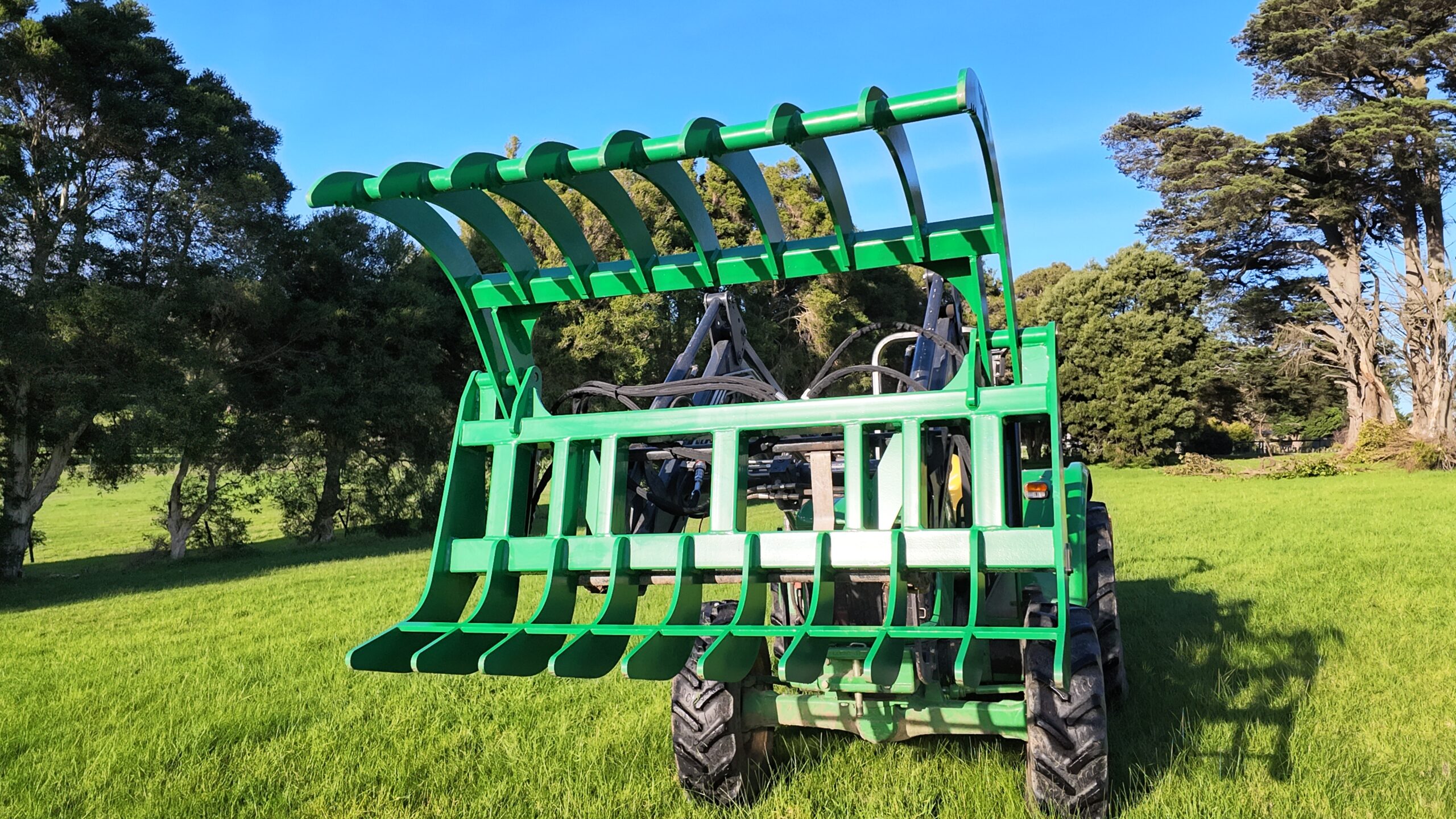

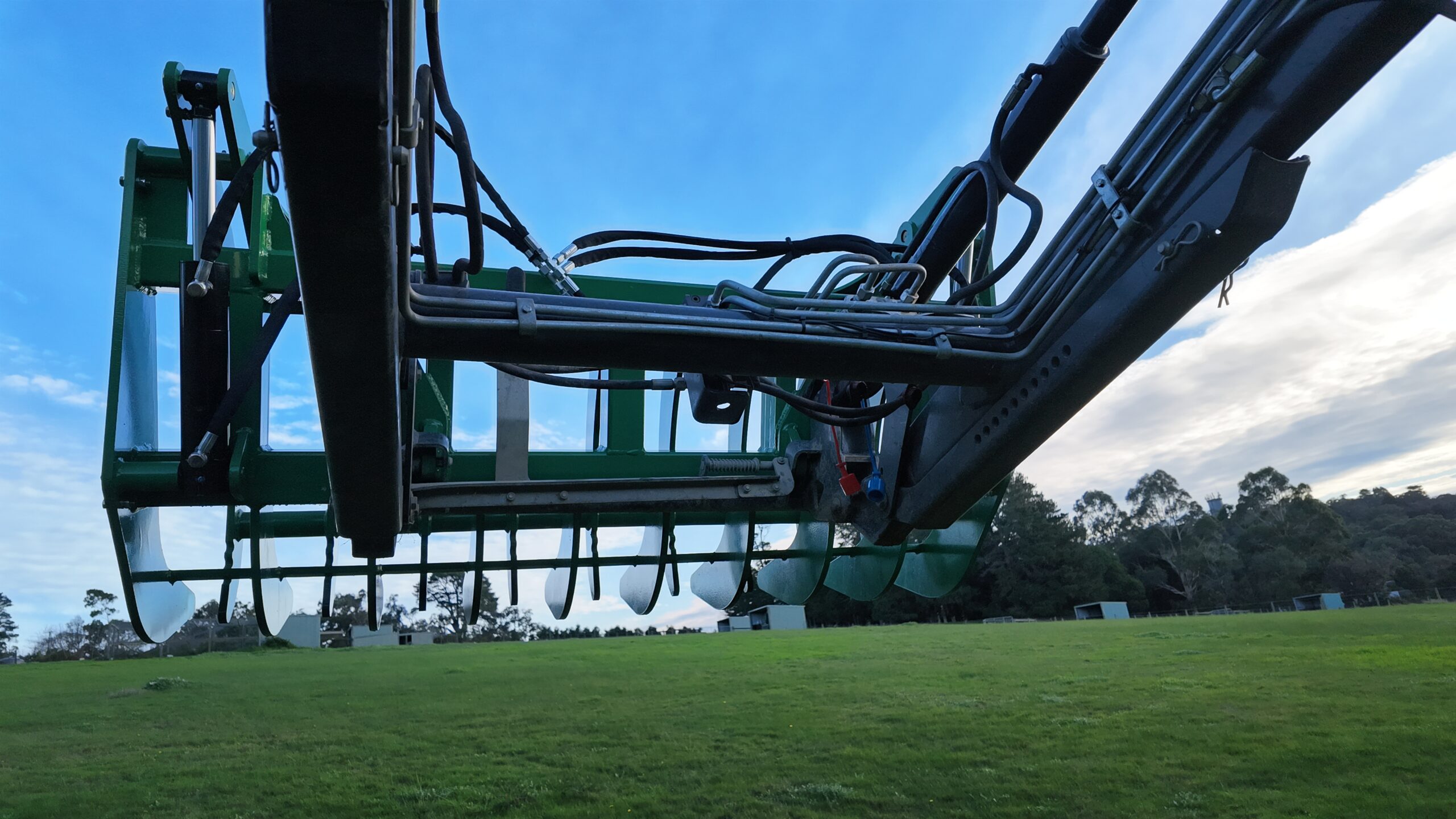

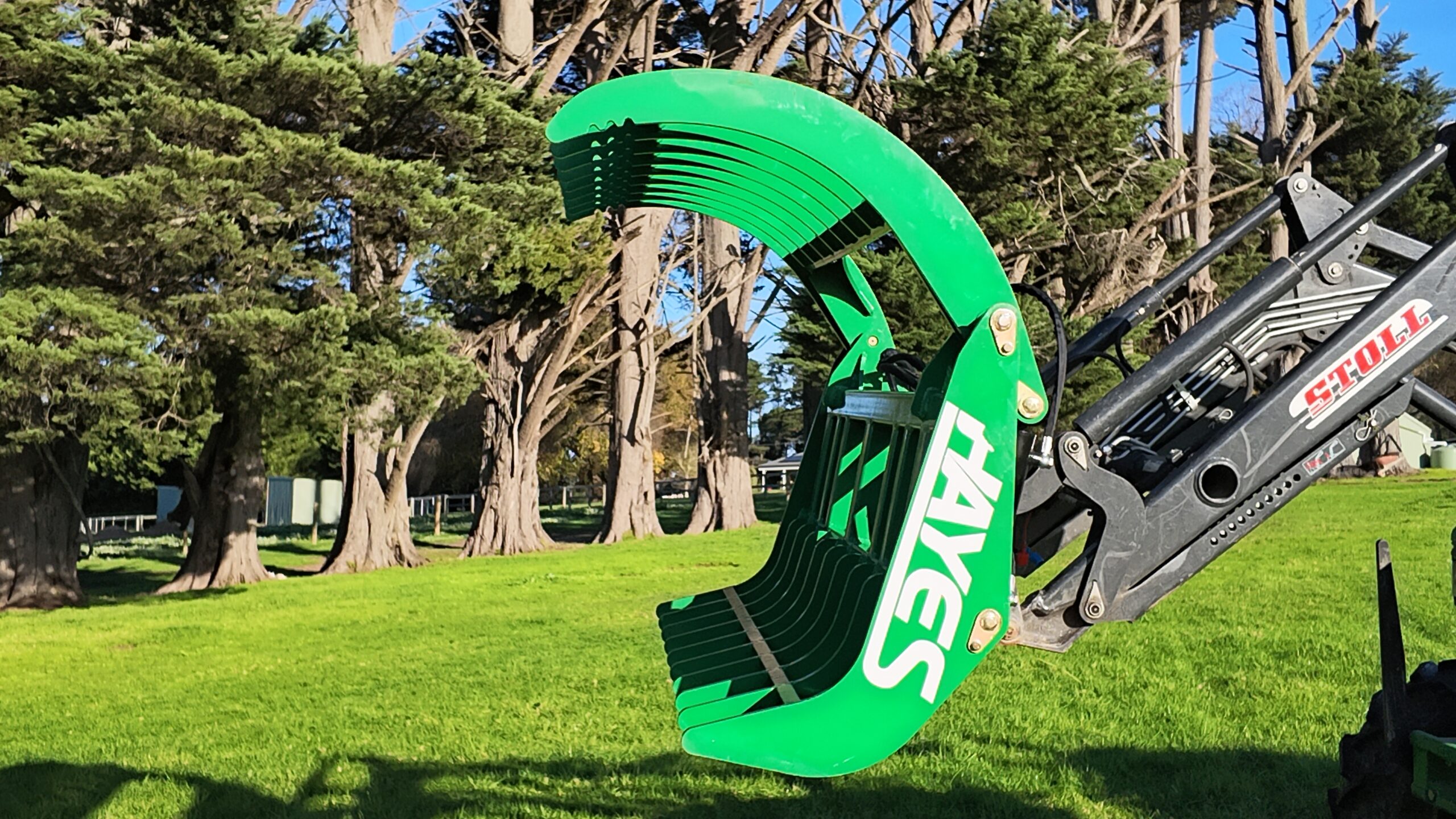

Log Grapple – Euro Hitch

$3,990 inc gst

SKU: 54016 Categories: ,

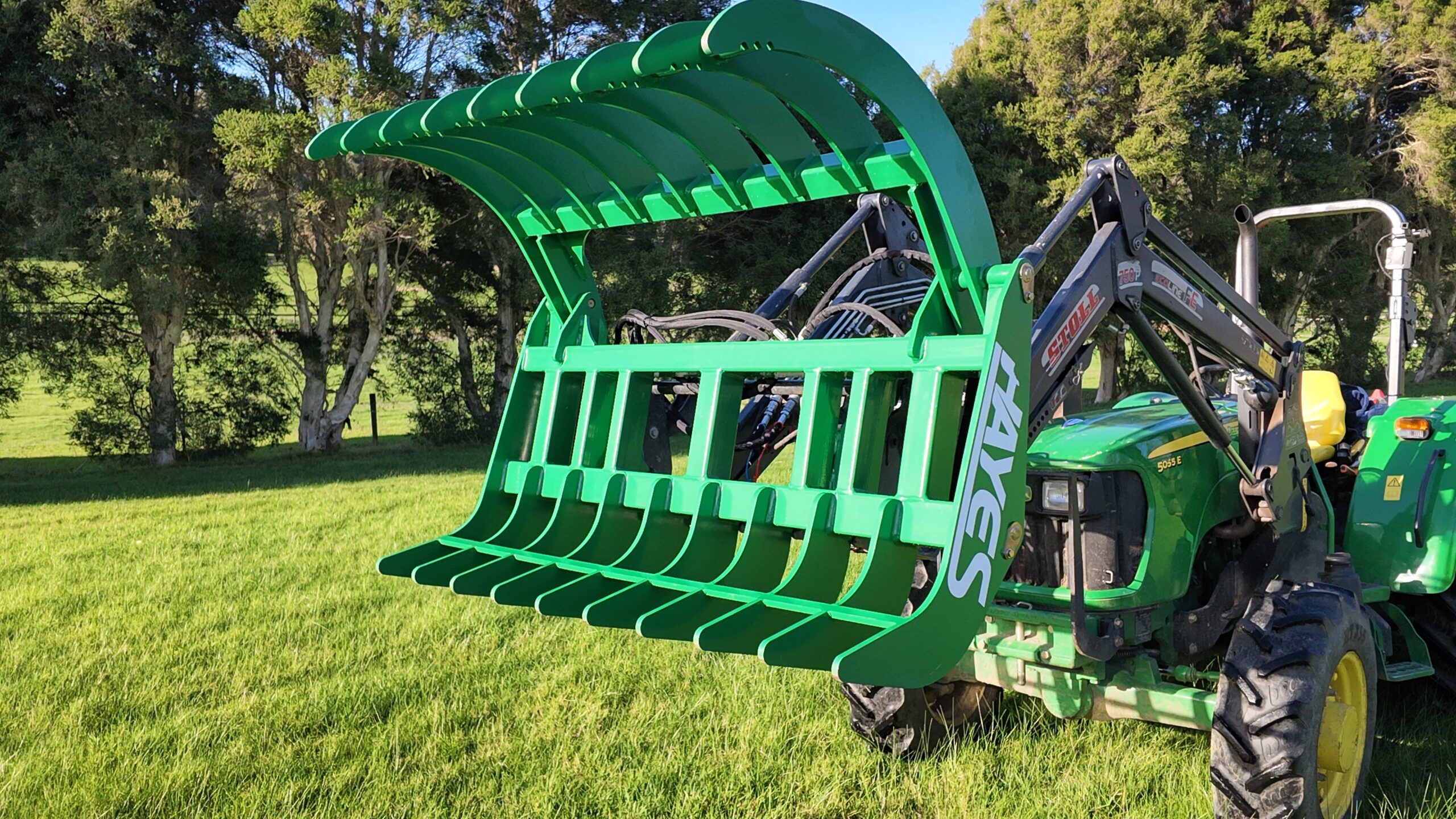

Log Grapple - Euro Hitch

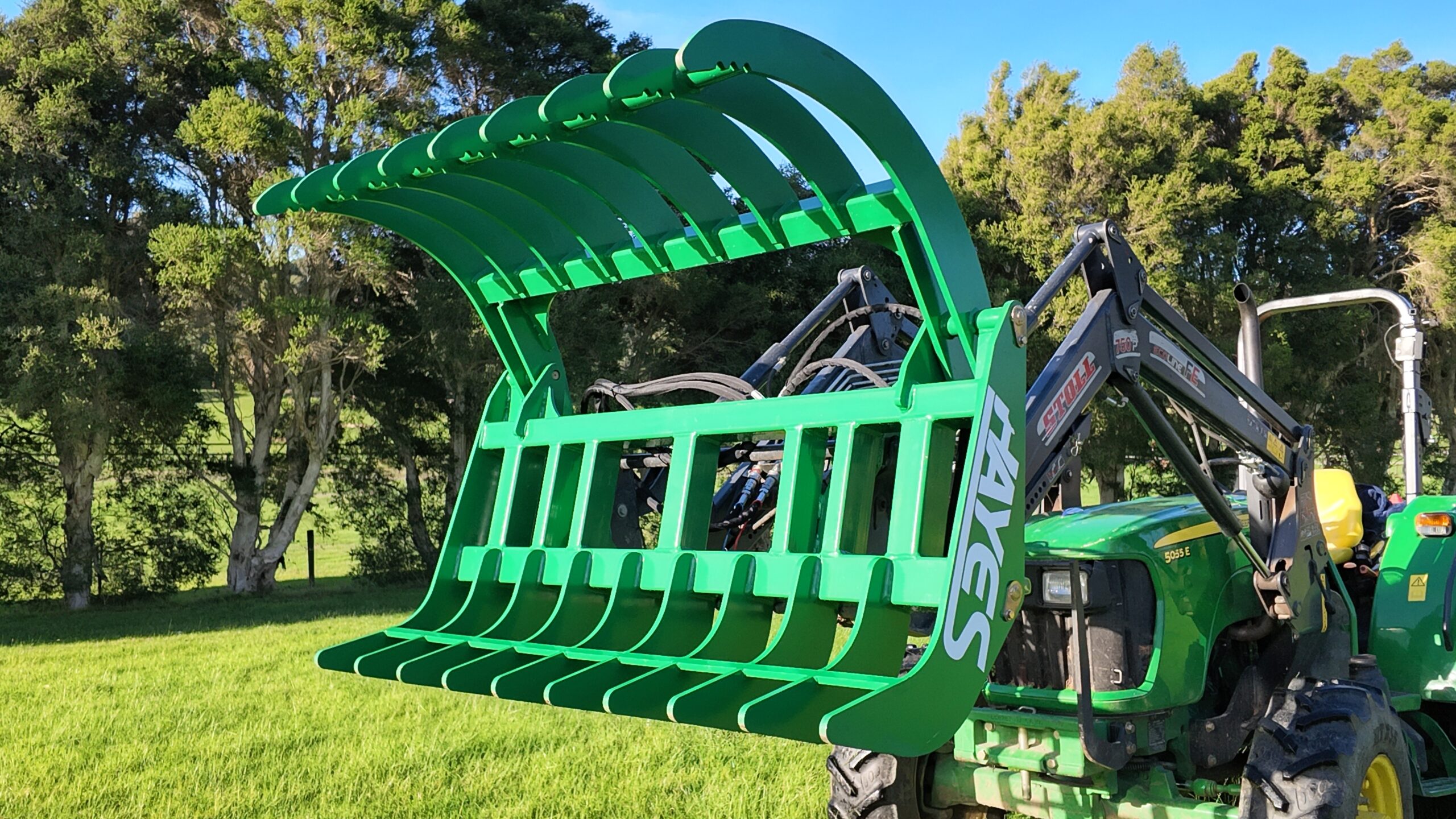

Log Grapple - Euro Hitch - Image 2

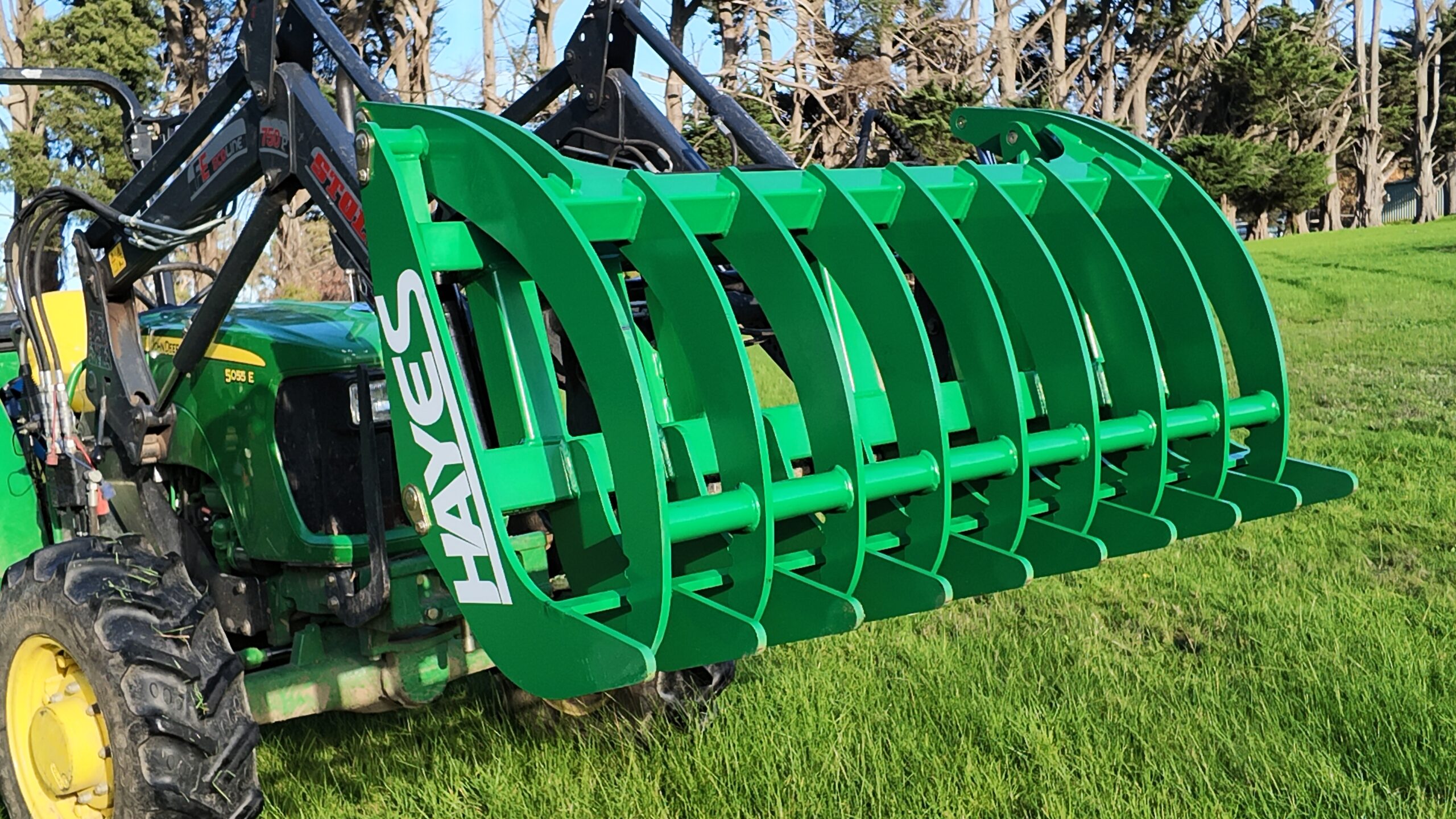

Log Grapple - Euro Hitch - Image 3

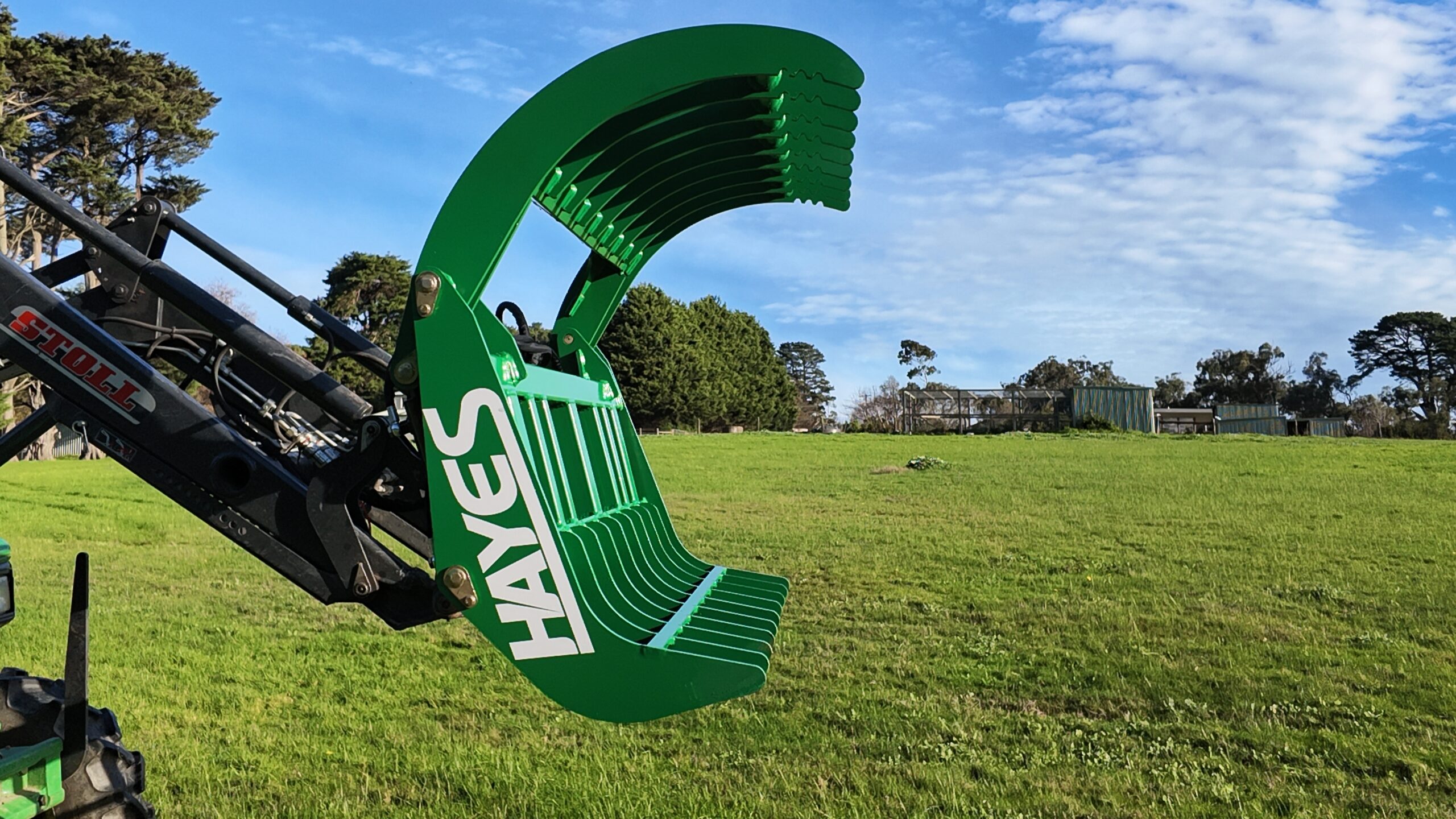

Log Grapple - Euro Hitch - Image 4
Log Grapple - Euro Hitch - Image 5

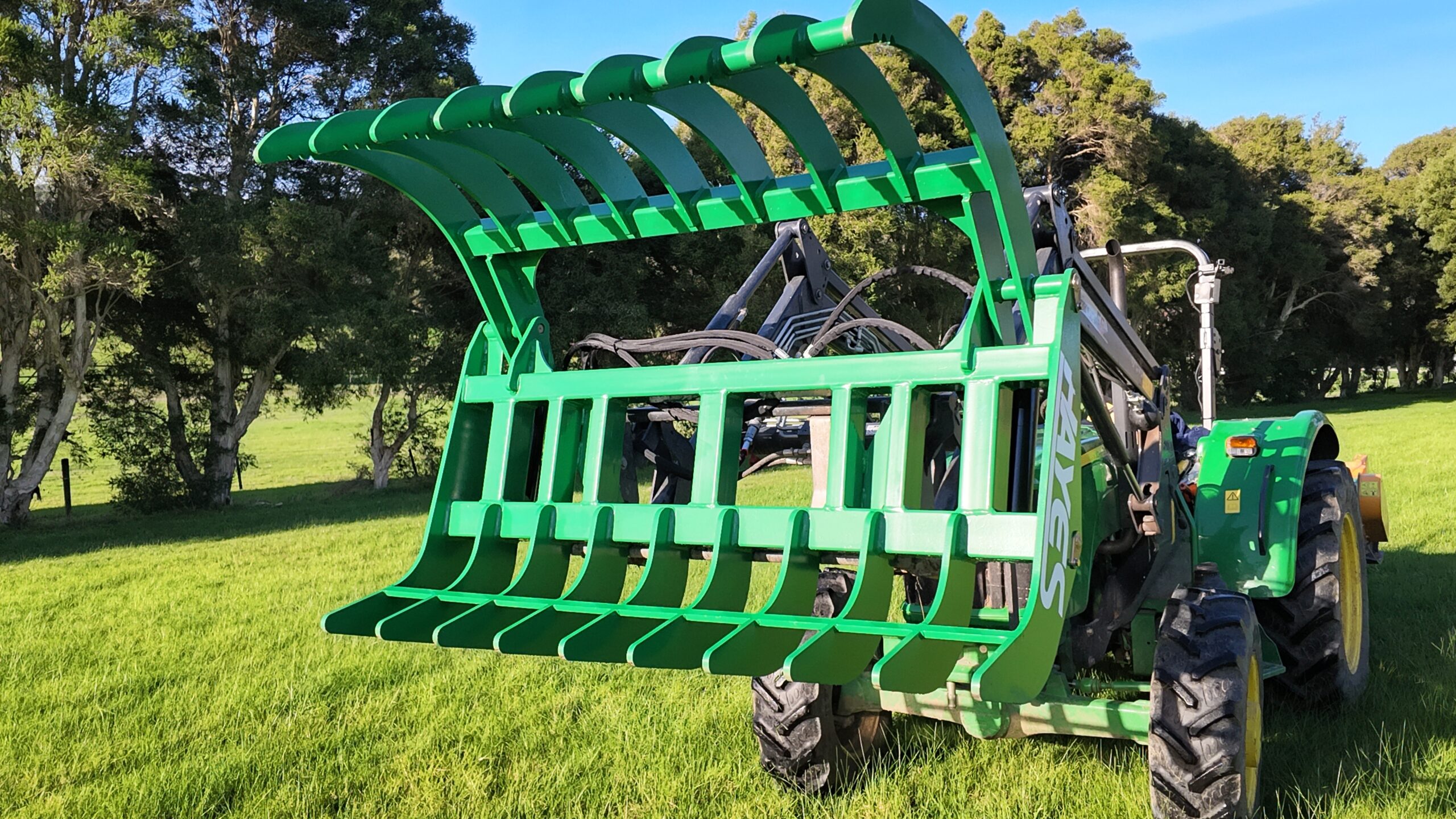

Log Grapple - Euro Hitch - Image 6

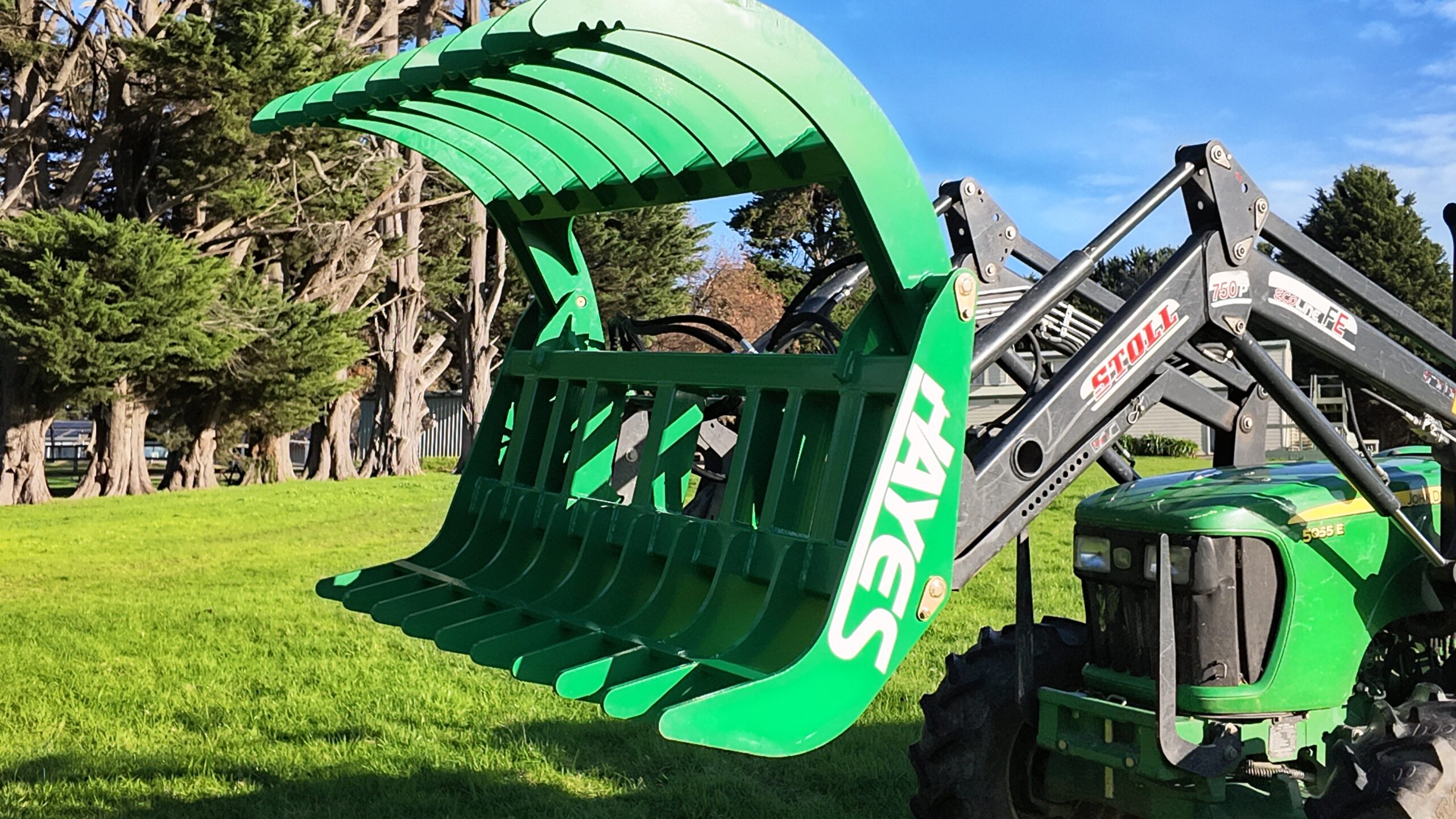

Log Grapple - Euro Hitch - Image 7

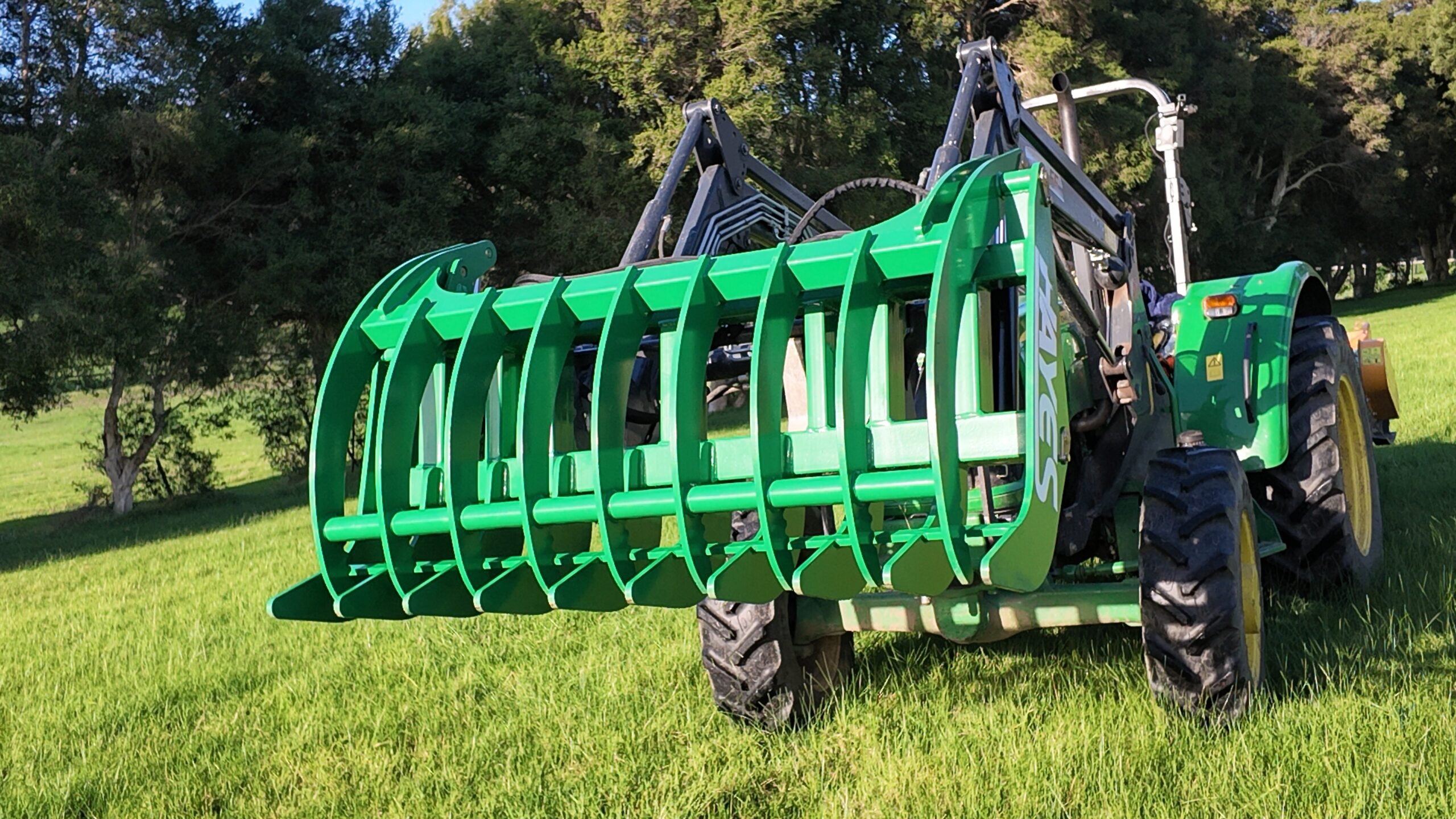

Log Grapple - Euro Hitch - Image 8
Log Grapple - Euro Hitch - Image 9
Log Grapple - Euro Hitch - Image 10
Log Grapple - Euro Hitch - Image 11
Log Grapple - Euro Hitch - Image 12
Log Grapple - Euro Hitch - Image 13
Log Grapple - Euro Hitch - Image 14
Log Grapple - Euro Hitch - Image 15
Log Grapple - Euro Hitch - Image 16
Log Grapple - Euro Hitch - Image 17
Log Grapple - Euro Hitch - Image 18
Log Grapple - Euro Hitch - Image 19
Log Grapple - Euro Hitch - Image 20
Log Grapple - Euro Hitch - Image 21
Log Grapple - Euro Hitch - Image 22
Log Grapple - Euro Hitch - Image 23
Log Grapple - Euro Hitch - Image 24
Log Grapple - Euro Hitch - Image 25
Log Grapple - Euro Hitch - Image 26

Description

*** OUT OF STOCK ***

STOCK ARRIVING EARLY OCTOBER 2026 – TO SECURE YOURS PLEASE CONTACT US, WE WILL INVOICE YOU, BUT NO PAYMENT WILL BE REQUIRED UNTIL STOCK ARRIVES



  • Designed to fit Euro hitch front end loaders and bob cat hitch
  • Includes hoses and 1/2 inch male hydraulic fittings
  • Maximum opening width of ….mm wide

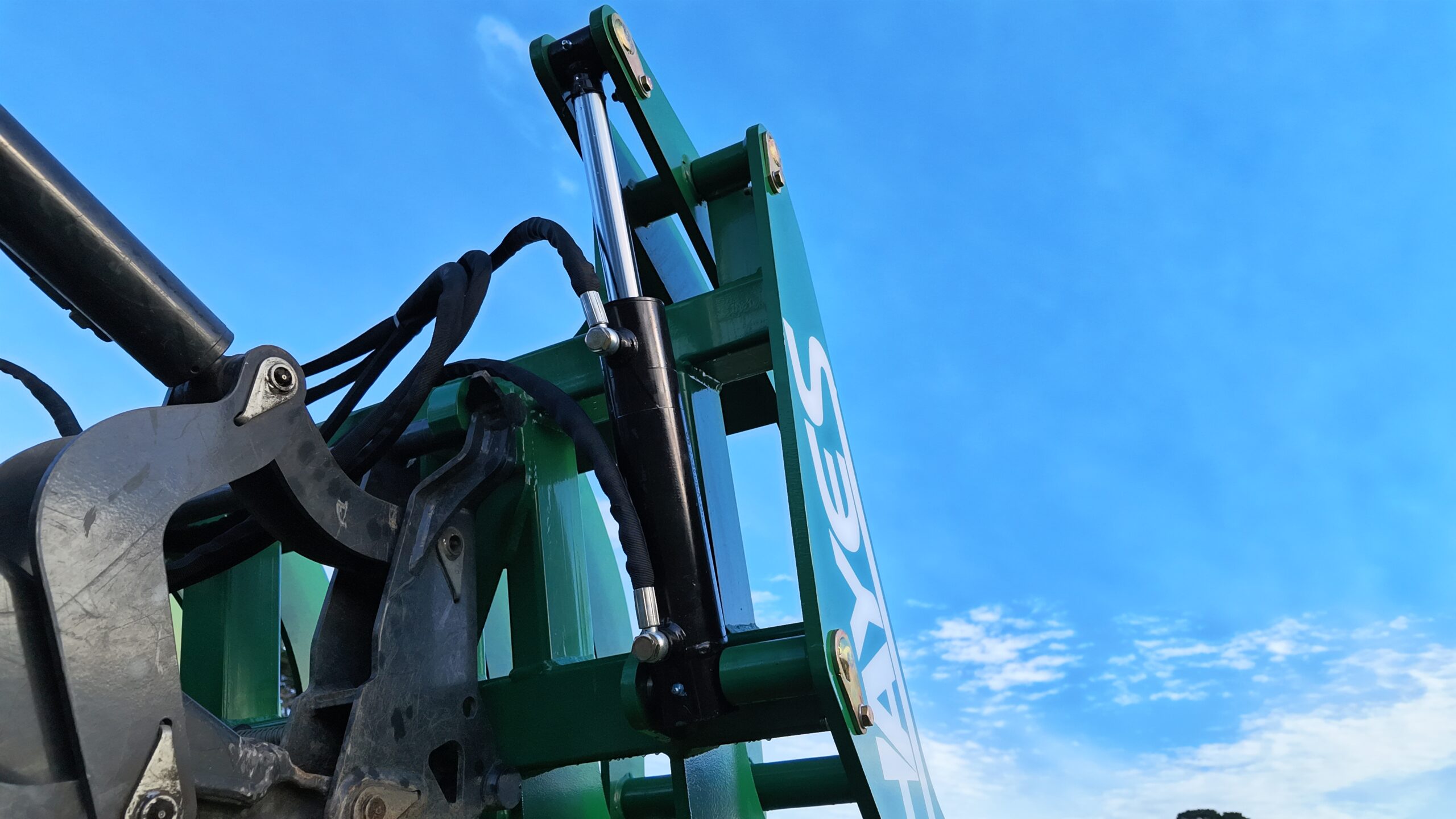

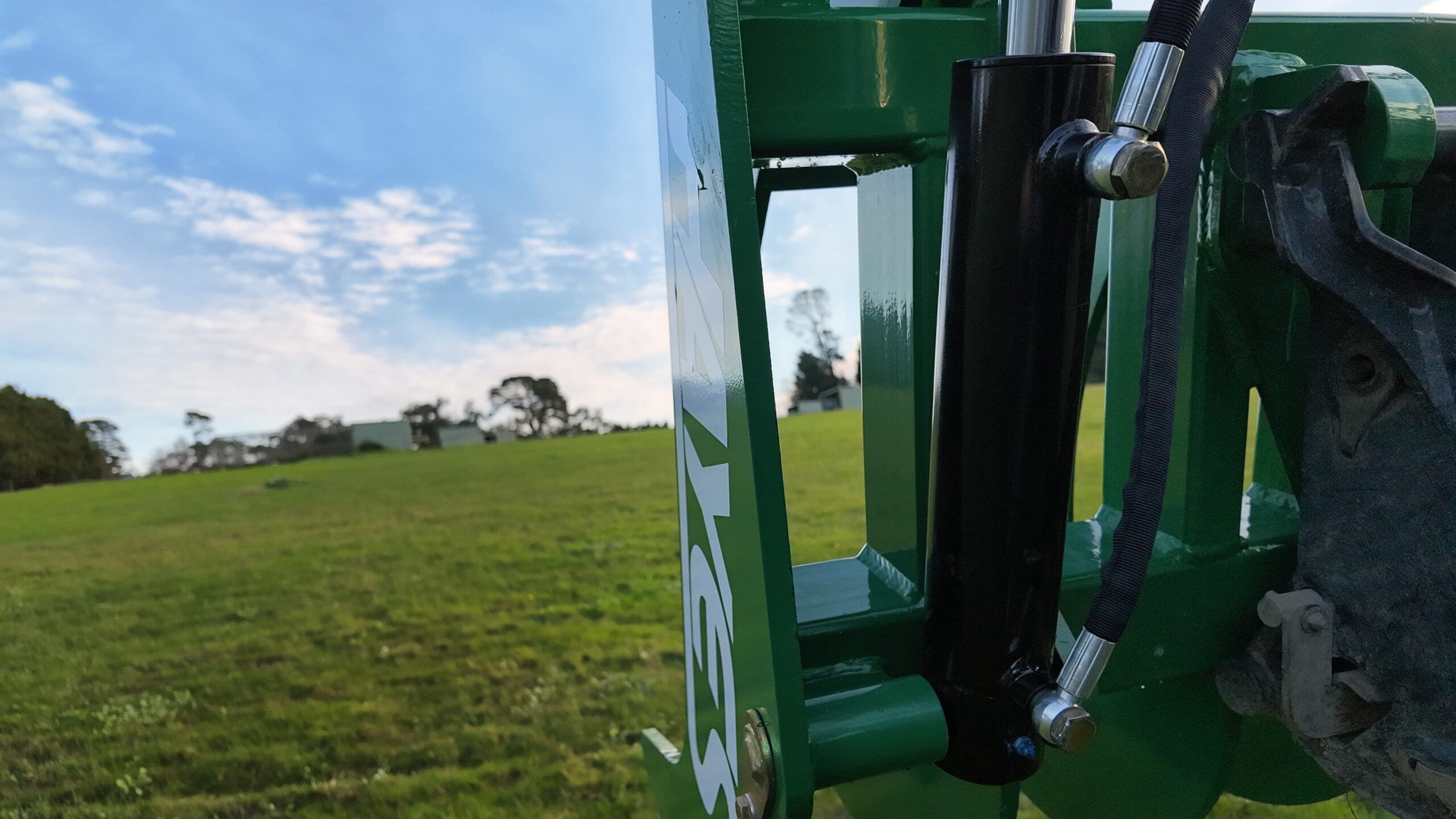

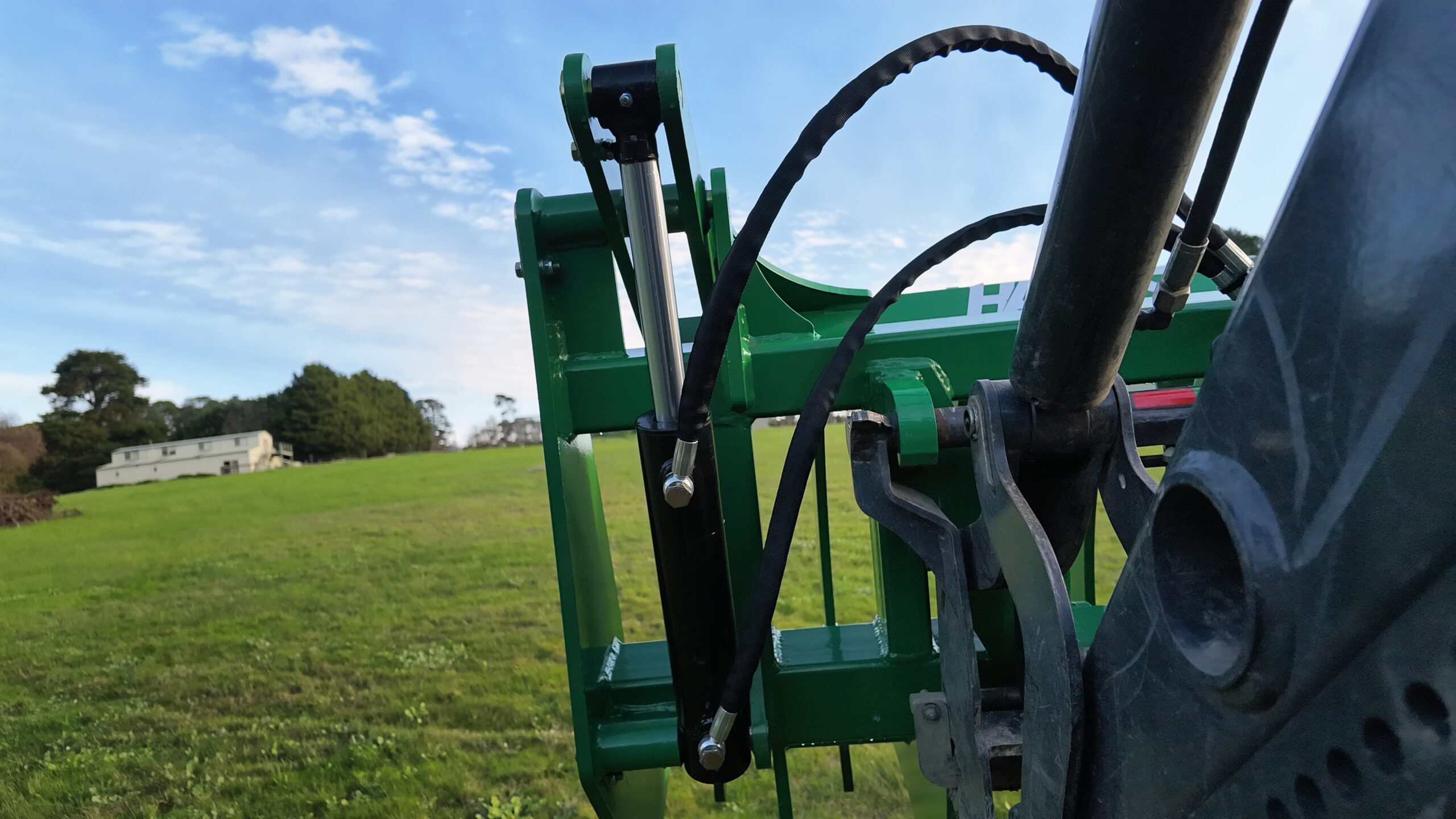

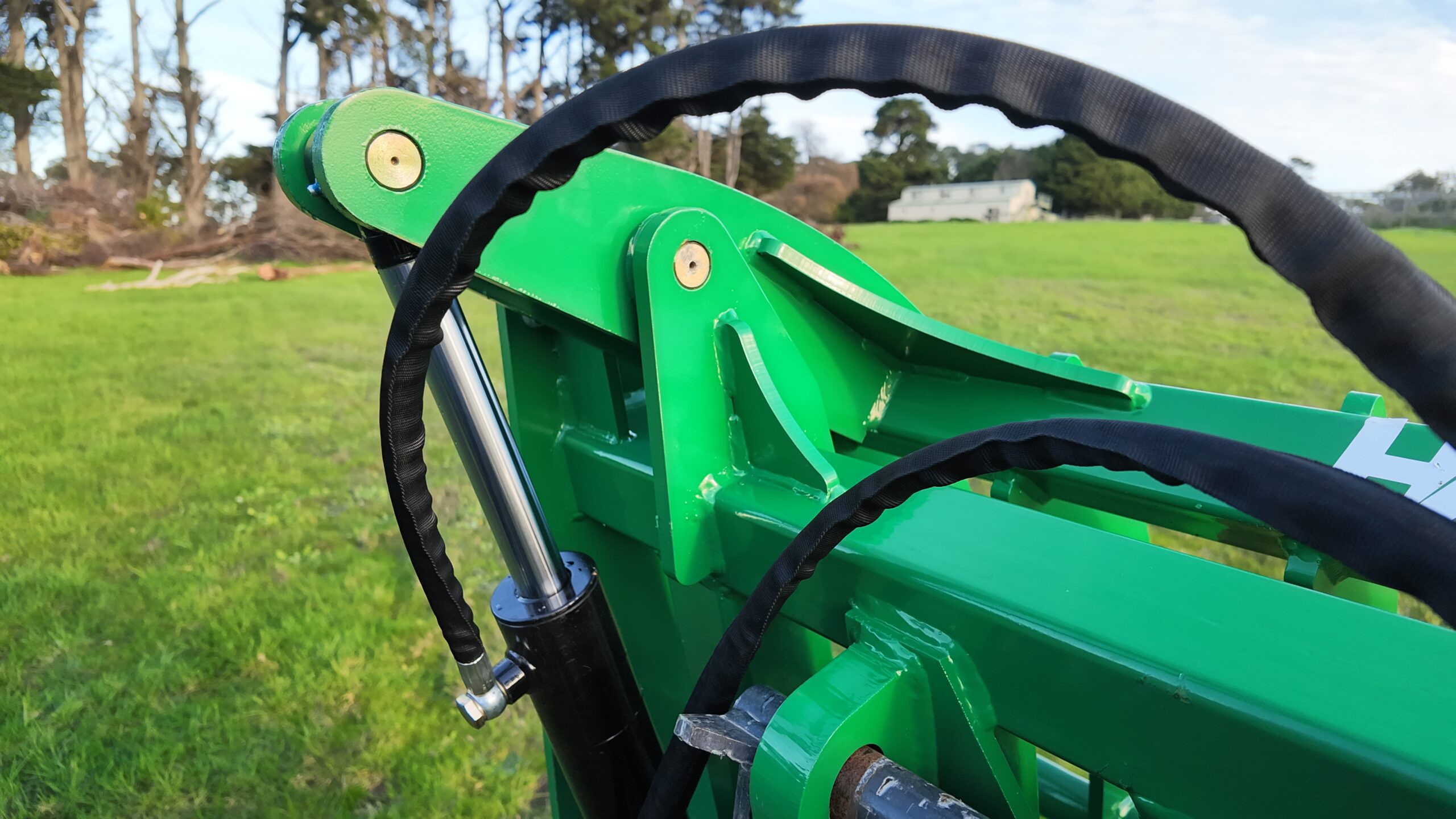

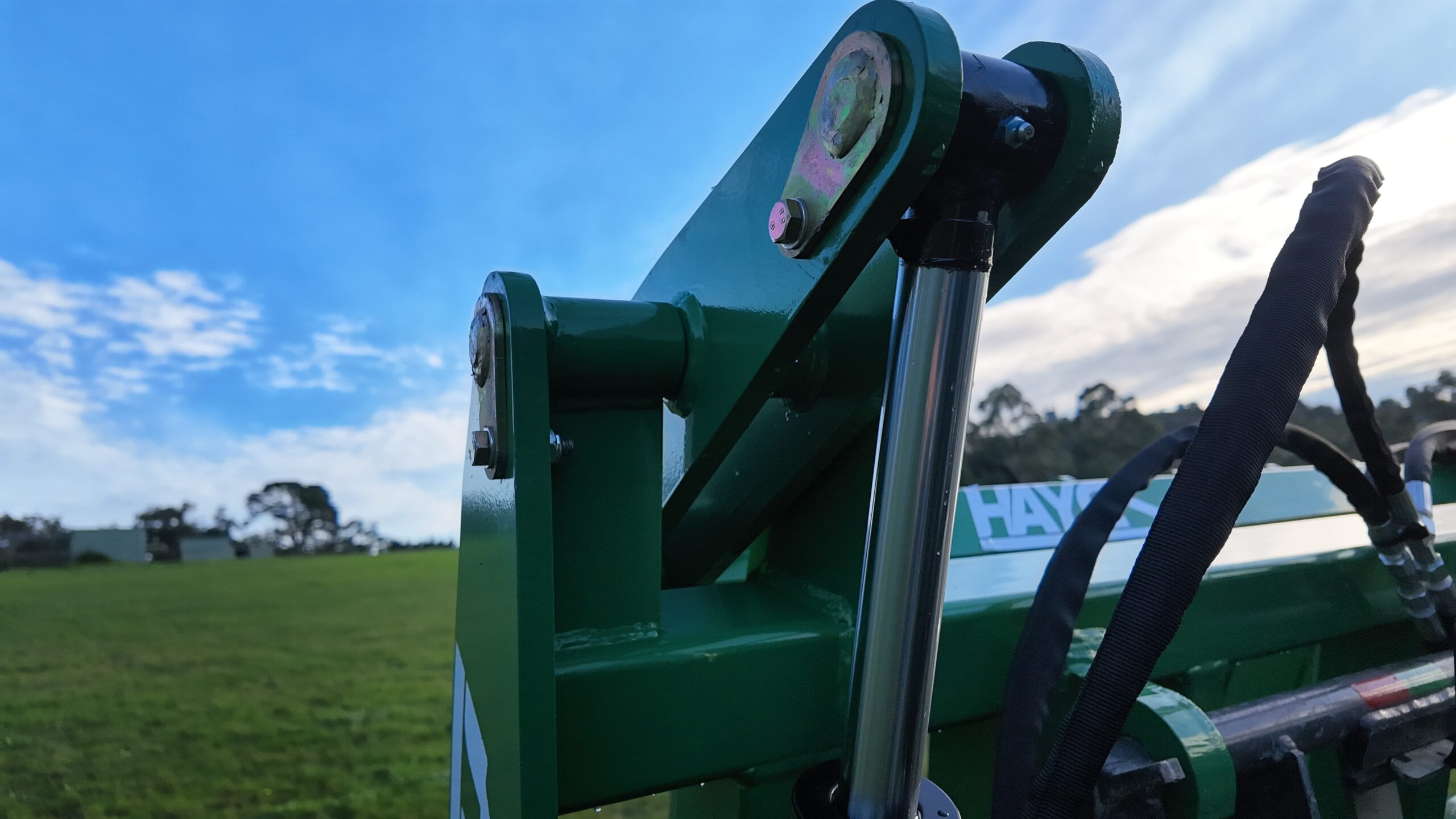

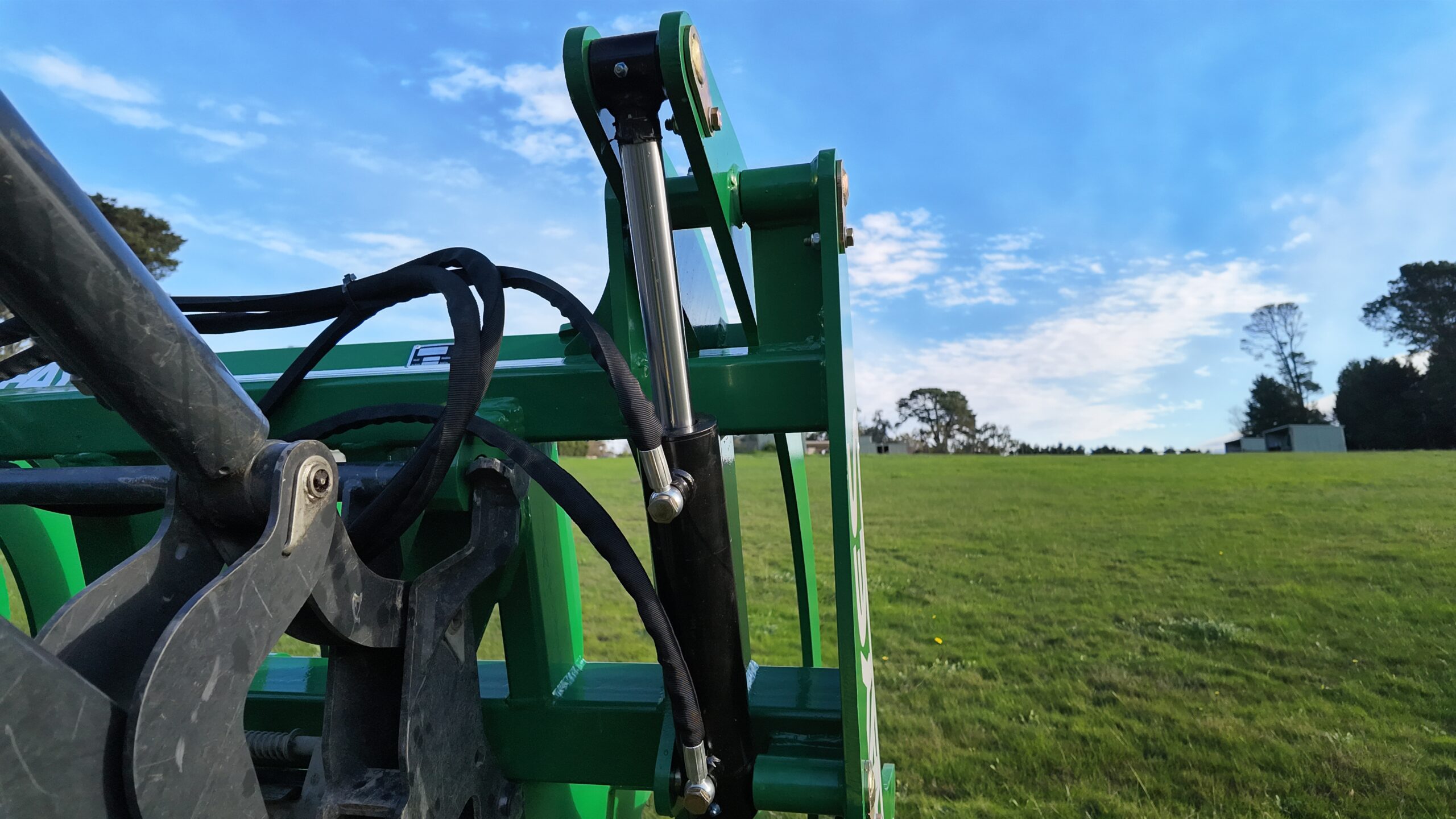

  • Oversized twin hydraulic rams
  • 1800mm wide
  • 408kg
  • Rated to lift 1500kg
  • 100x100mm main lower frame
  • 16mm tines Using AR450 steel (many others on the market are only using mild steel)
  • High-carbon alloy steel enriched with manganese, chromium, and boron to enhance deep hardening and prevent stress cracking.
  • Optimal wear resistance combined with excellent impact toughness
  • Great for varying log sizes and debris
  • Fully greaseable.



*Supplied with 2 male hydraulic fittings. If you require female fittings please advise us at the time of order.



Euro Hitch measurements

  • Top hook diameter 40mm
  • Lower pin hole diameter 23mm
  • 319mm from top of top hook to centre of lower pin
  • 1080mm outside to outside of top hooks
  • Lower pins 740mm inside to inside

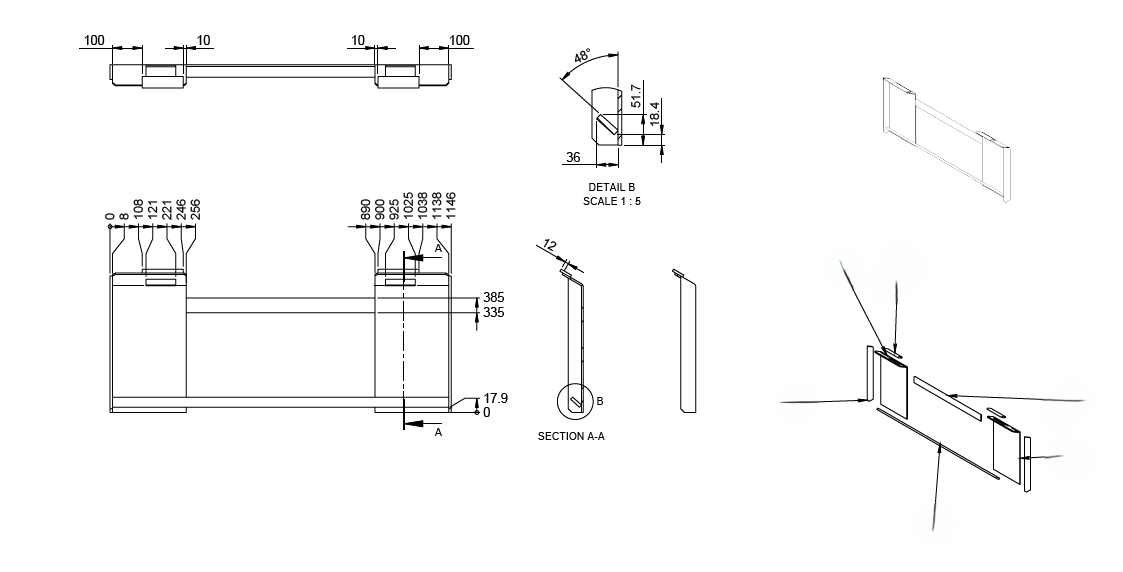

Bob Cat Hitch

See attached dimensions – in photo gallery

  • The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
  • 12 months manufacturing warranty

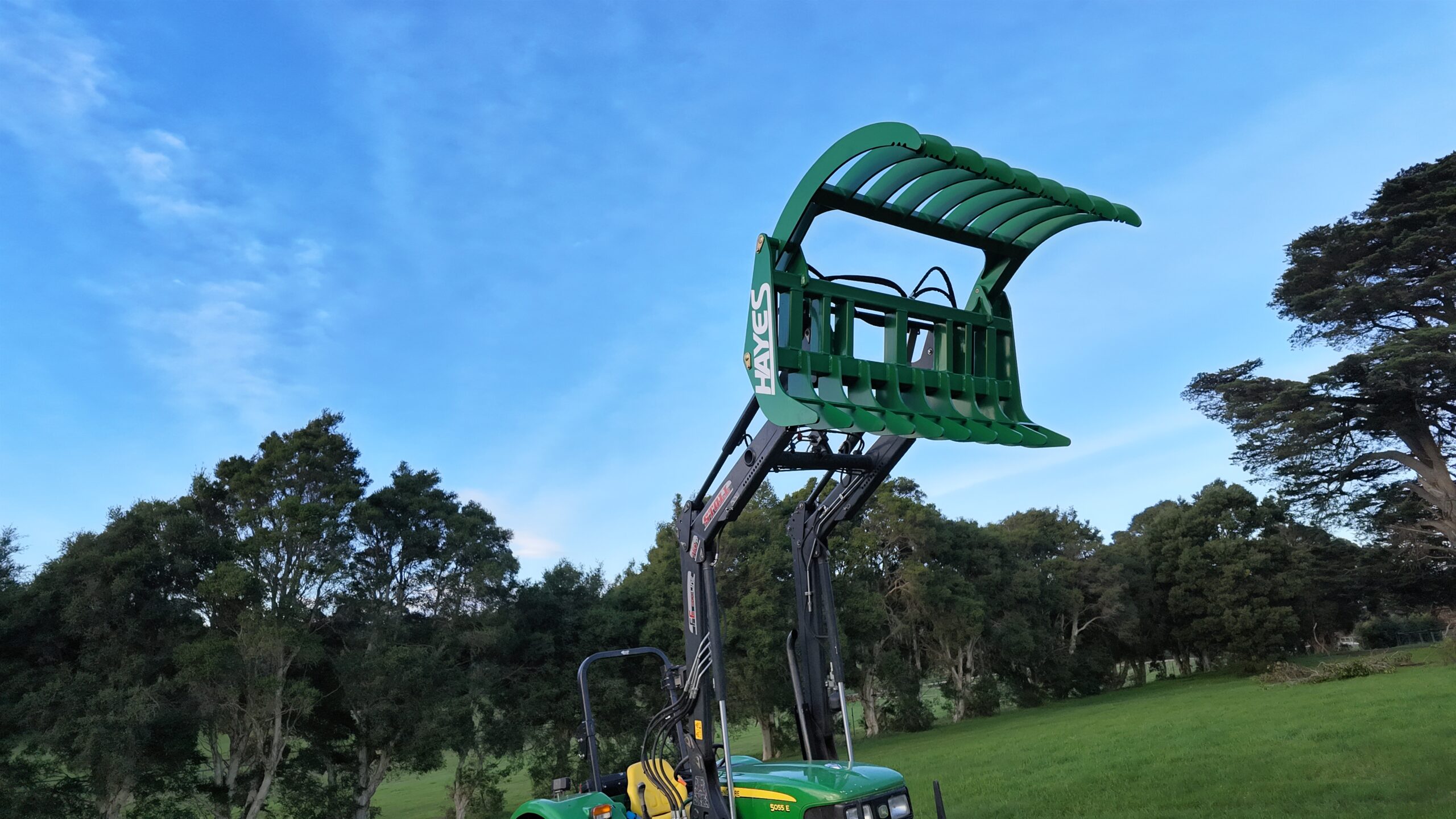

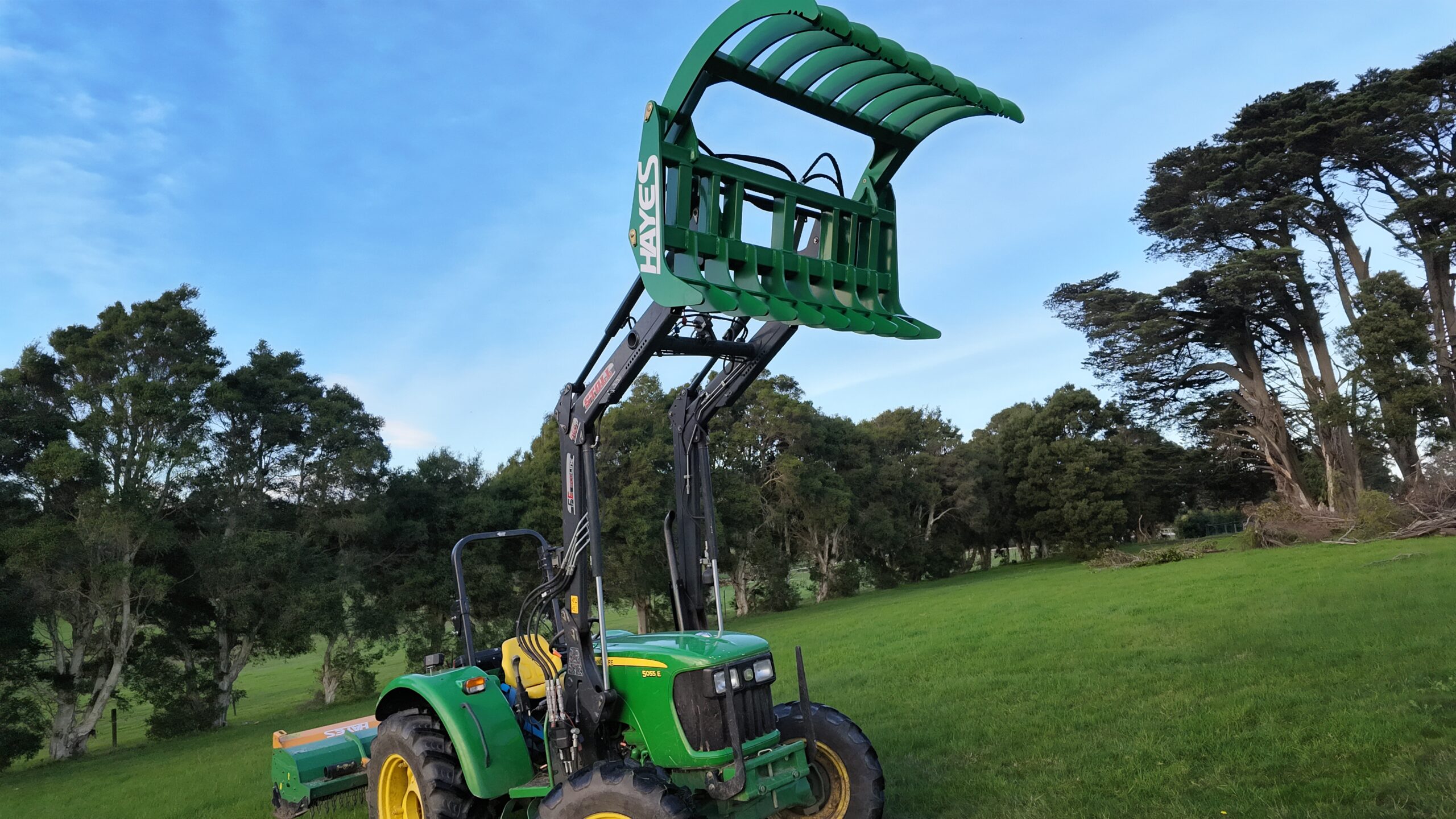

***Tractor used in demonstration is a 55hp, and handled the job with ease. Please check your tractors lift capacity***
