Hayes Contractor Series I 1500 flail mower with mechanical side shift, designed for 38–80 hp tractors. SKU 24000.

1500 mm cutting width with 50–100 mm adjustable cutting height

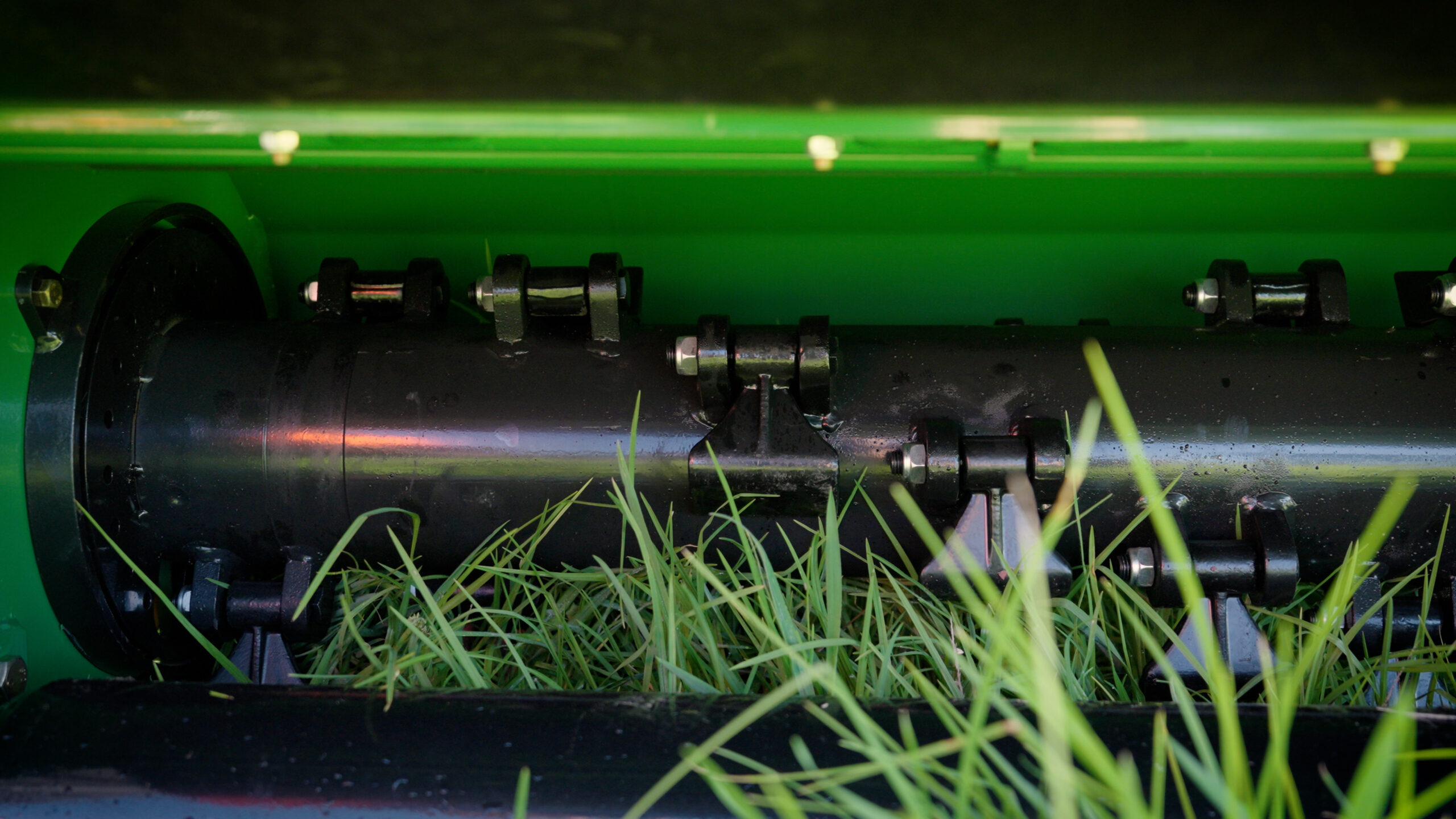

168 mm blade shaft for strength and improved balance
Blade shaft runs on 50 mm dual-race SKF bearings with external access
168 mm rear roller running on 35 mm bearings

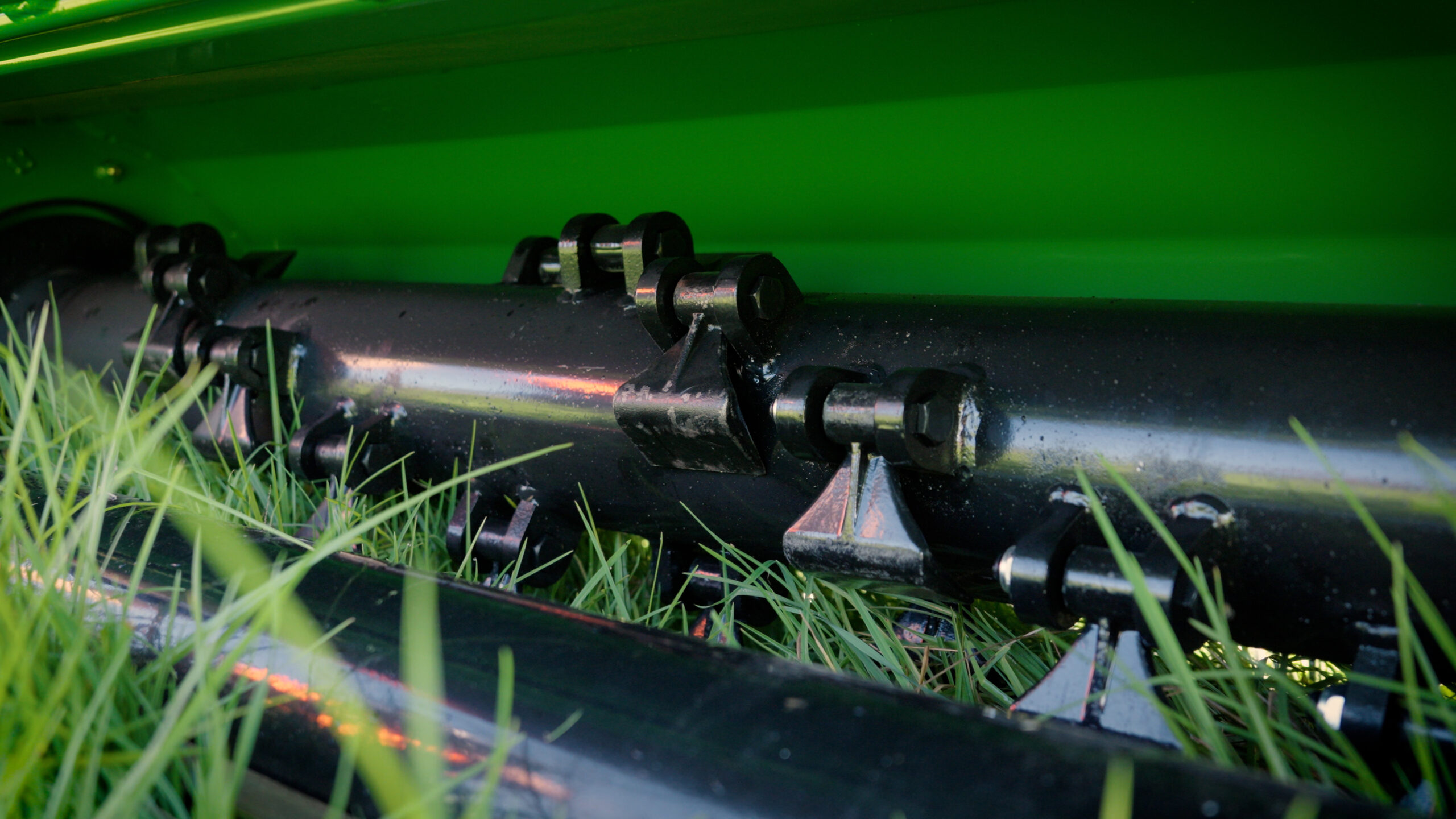

22 hammer blades in a spiral layout for efficient cutting
Four B-section drive belts
High-discharge design to support higher working speeds
Mechanical side shift
When shifted to the non-belt side, the cut extends approximately 1350 mm from the tractor centreline
When shifted to the belt side, the cut extends approximately 1150 mm from the tractor centreline
Category 1 hitch; Category 2 shim kit available
540 PTO rpm
Overall width 1770 mm
Weight 545 kg

Please note: the photo shown in the comparison material is of the Contractor Series I 1800 model.

The PTO shaft is included. The gearbox and shaft require oil before use. The mower is shipped in a steel frame for cost-effective freight, so some assembly is required.

12-month manufacturing warranty excluding consumables such as blades and belts, plus 24-month gearbox warranty.
