FLAIL MOWER CONTRACTOR SERIES I – 1800 Mechanical Side Shift

$5,090 inc gst

Hayes Contractor Series I 1800 flail mower with mechanical side shift, 1800 mm cut and 26 hammer blades for 45–80 hp tractors. SKU 24070-M.

SKU: 24070 - 24070-M Capacity: 45-80hp Categories: ,
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I flail mower – SKU 24000
Hayes Contractor Series I flail mower – SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

Description

Hayes Contractor Series I 1800 flail mower with mechanical side shift is designed for 45–80 hp tractors. It has a 1800 mm cutting width, 26 hammer blades, a 168 mm blade shaft, SKF bearings and Category 1 linkage. SKU 24070-M.

  • 168 mm (6.6 inch) diameter blade shaft for increased strength and superior balancing
  • Blade shaft runs on 50 mm dual-race SKF bearings with external access
  • 168 mm diameter rear roller running on 35 mm bearings
  • High-discharge design to increase ground speed
  • Spiral placement of cutting blades to maximise efficiency and reduce the power required to drive the mower
  • Extra-high cut setting up to 100 mm, useful in heavier conditions and areas where rocks or tree stumps may protrude from the ground
  • When fully side shifted to the non-belt side, the cut extends 1200 mm from the tractor centreline
  • When fully side shifted to the belt side, the cut extends 1000 mm from the tractor centreline

See sizing guide and comparison sheet below.

Hayes Contractor Series I 1800 mechanical side shift flail mower sizing guide, SKU 24070-M

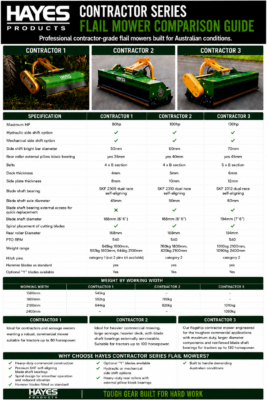

Hayes flail mower comparison information for Contractor Series I 1800 mechanical side shift, SKU 24070-M

Specifications

Horsepower 45–80 hp
Cut Width 1800 mm
Cut Height 50–100 mm
Sideshift Mechanical
Blade shaft 168 mm
Qty blades 26
Std blades Hammer type
Belts 4 x B Section
Bearing SKF
Deck thickness 4 mm
Hitch pins CAT 1 (shim kit available for CAT 2)
PTO rpm 540
Overall width 2070 mm
Weight 592 kg
  • The PTO shaft is included in the price
  • The gearbox and shaft require oil. To ensure the unit is filled in the correct locations, to the correct level and with the correct oil, Hayes can fill it for $20 inc GST
  • The product is shipped in a steel frame to enable cost-effective freight, therefore some assembly is required
  • 12 months manufacturing warranty excluding consumables such as blades and belts, and 24 months gearbox warranty
