FLAIL MOWER CONTRACTOR SERIES I – 2100 Hydraulic side shift

$5,990 inc gst

Hayes Contractor Series I 2100 flail mower with hydraulic side shift, 2100 mm cut and 30 hammer blades for 53–80 hp tractors. SKU 24080-H.

SKU: 24080 - 24070-H Capacity: 53-80hp Categories: ,

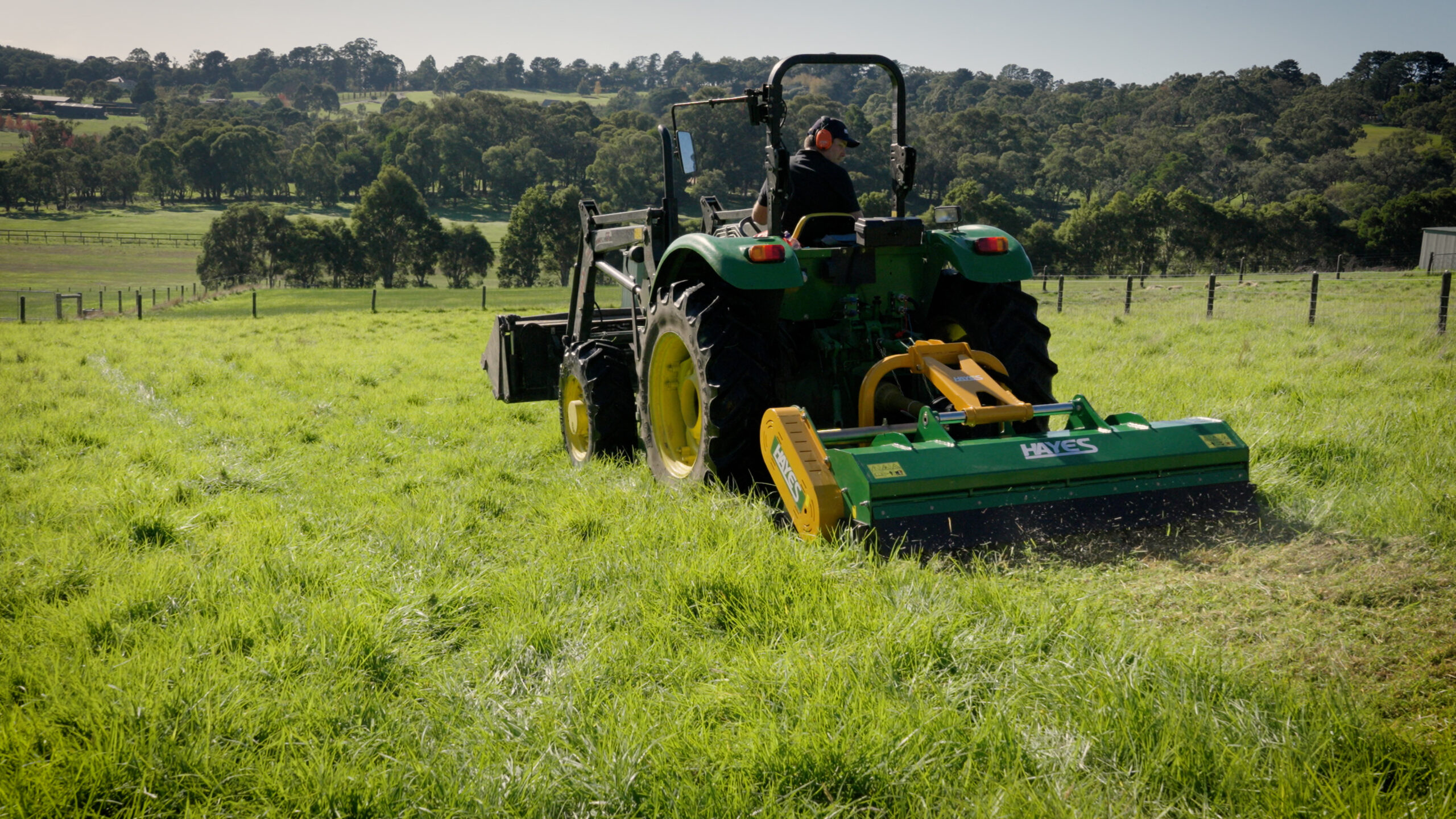

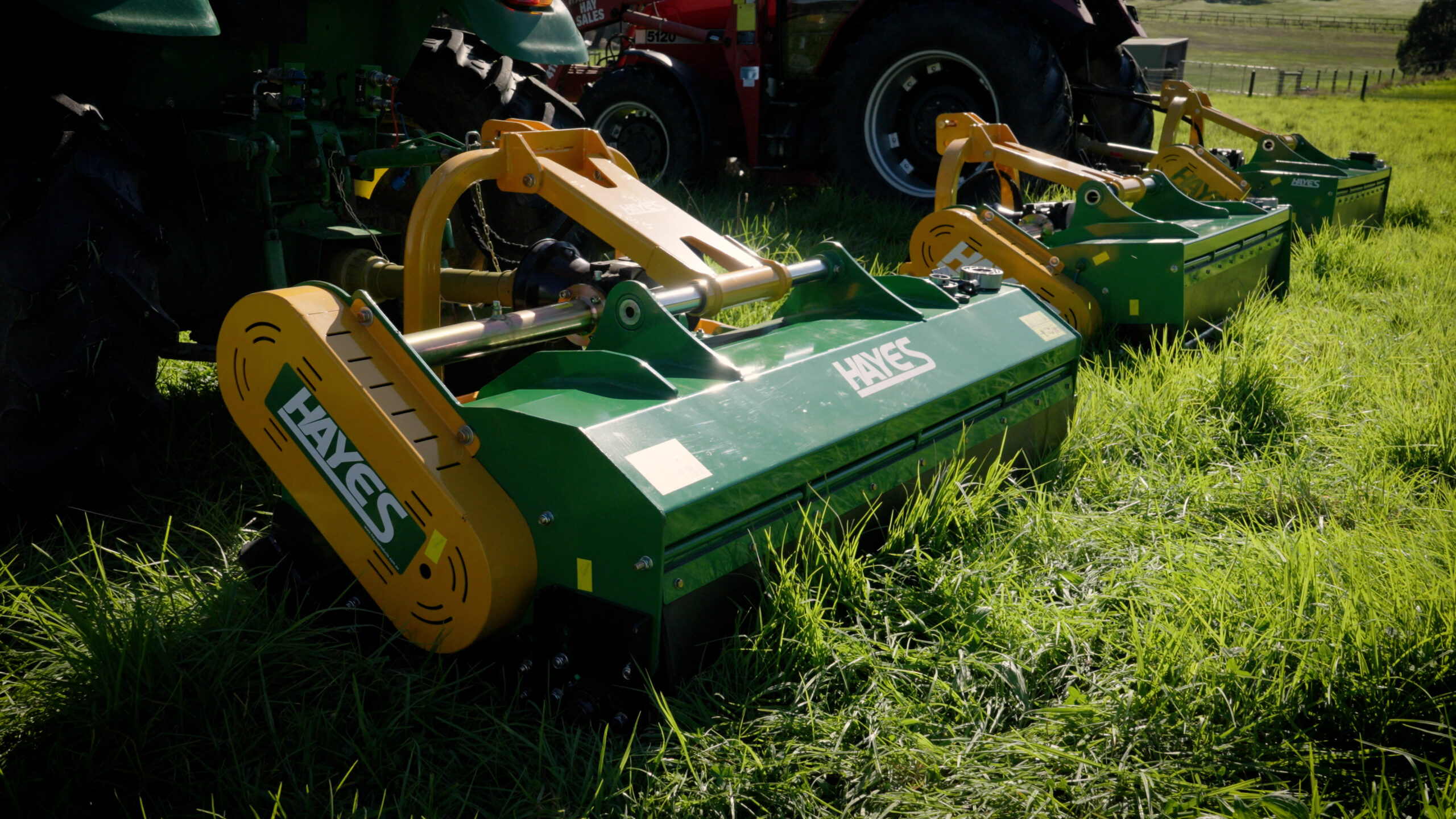

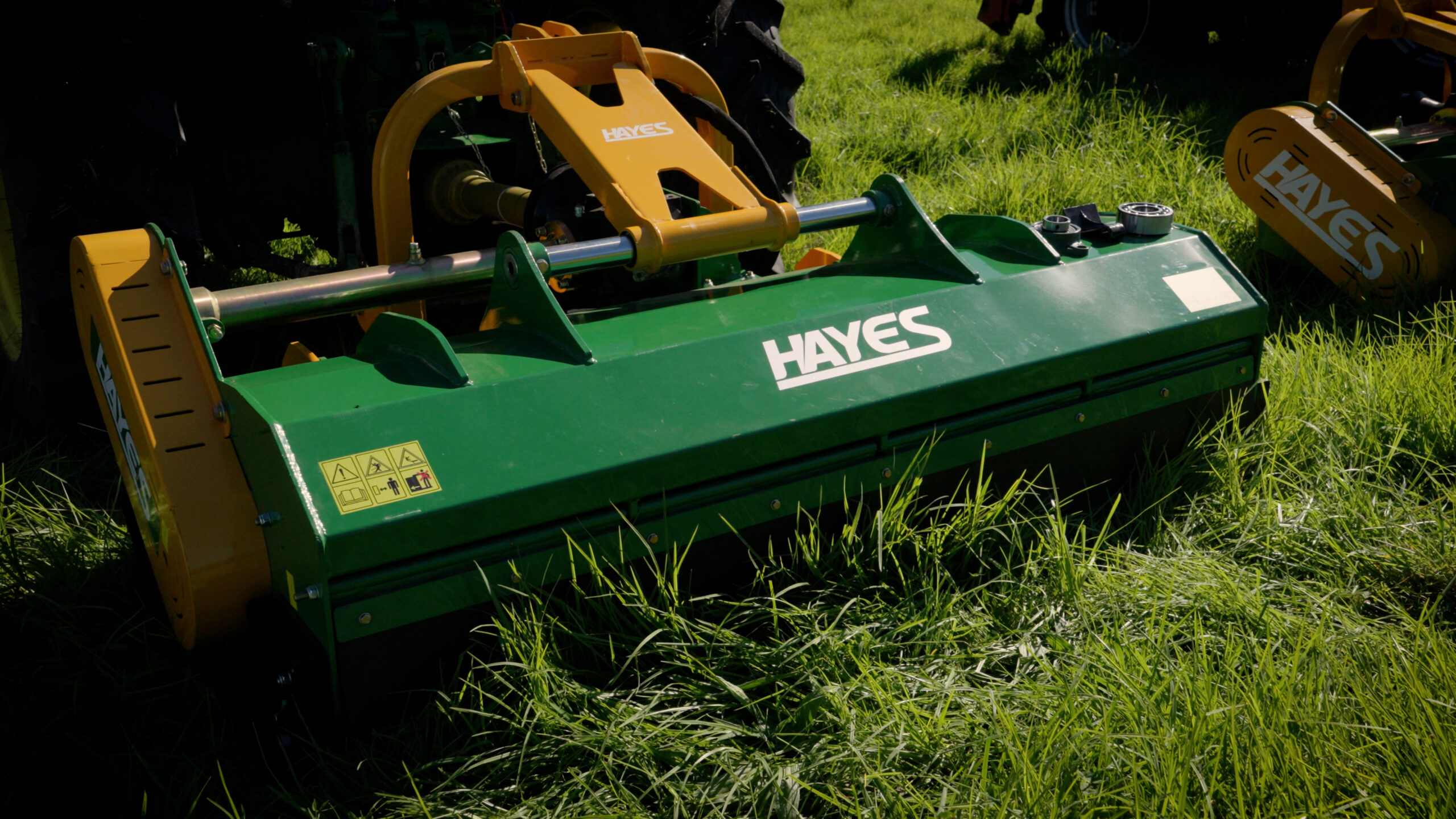

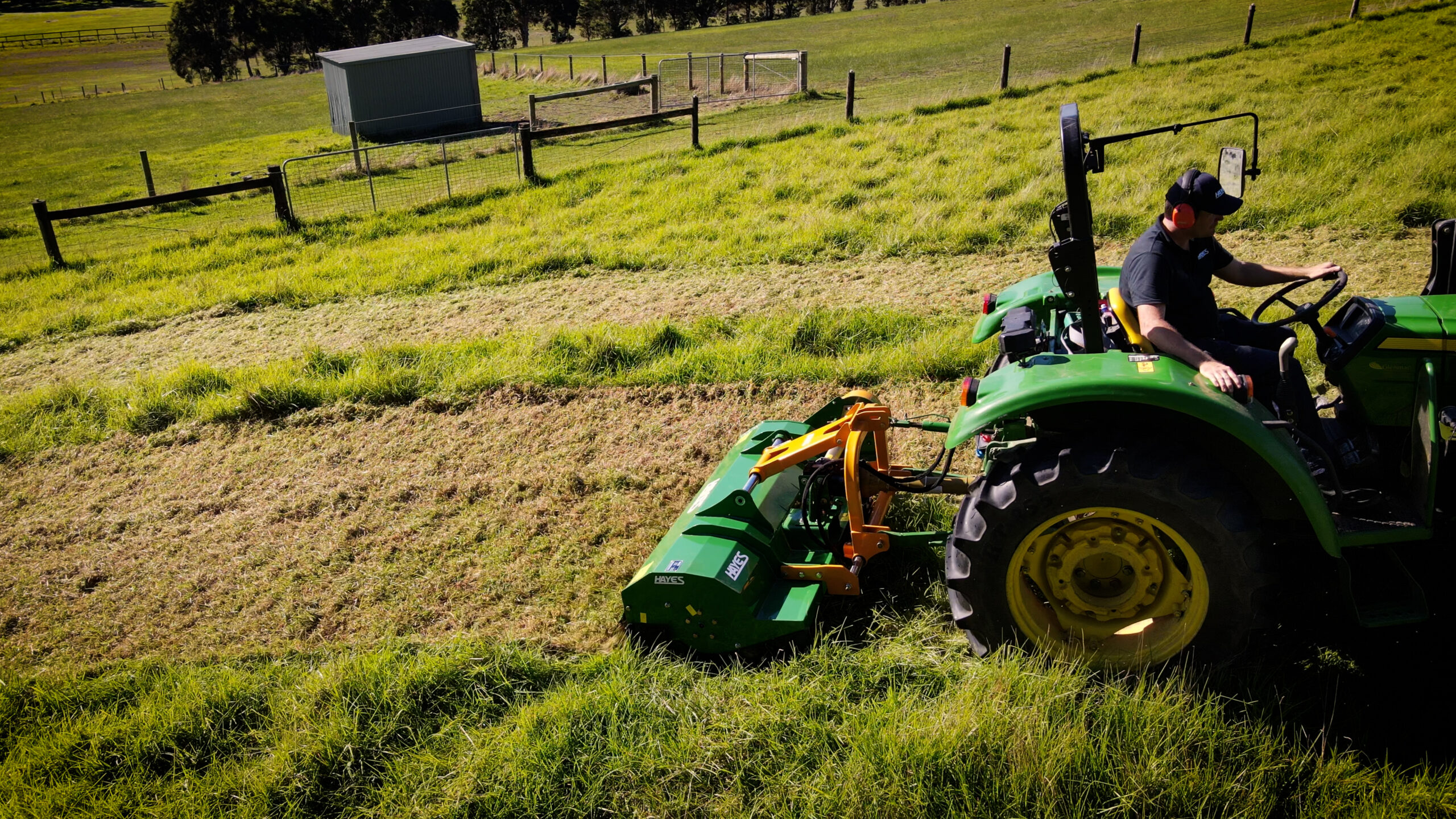

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

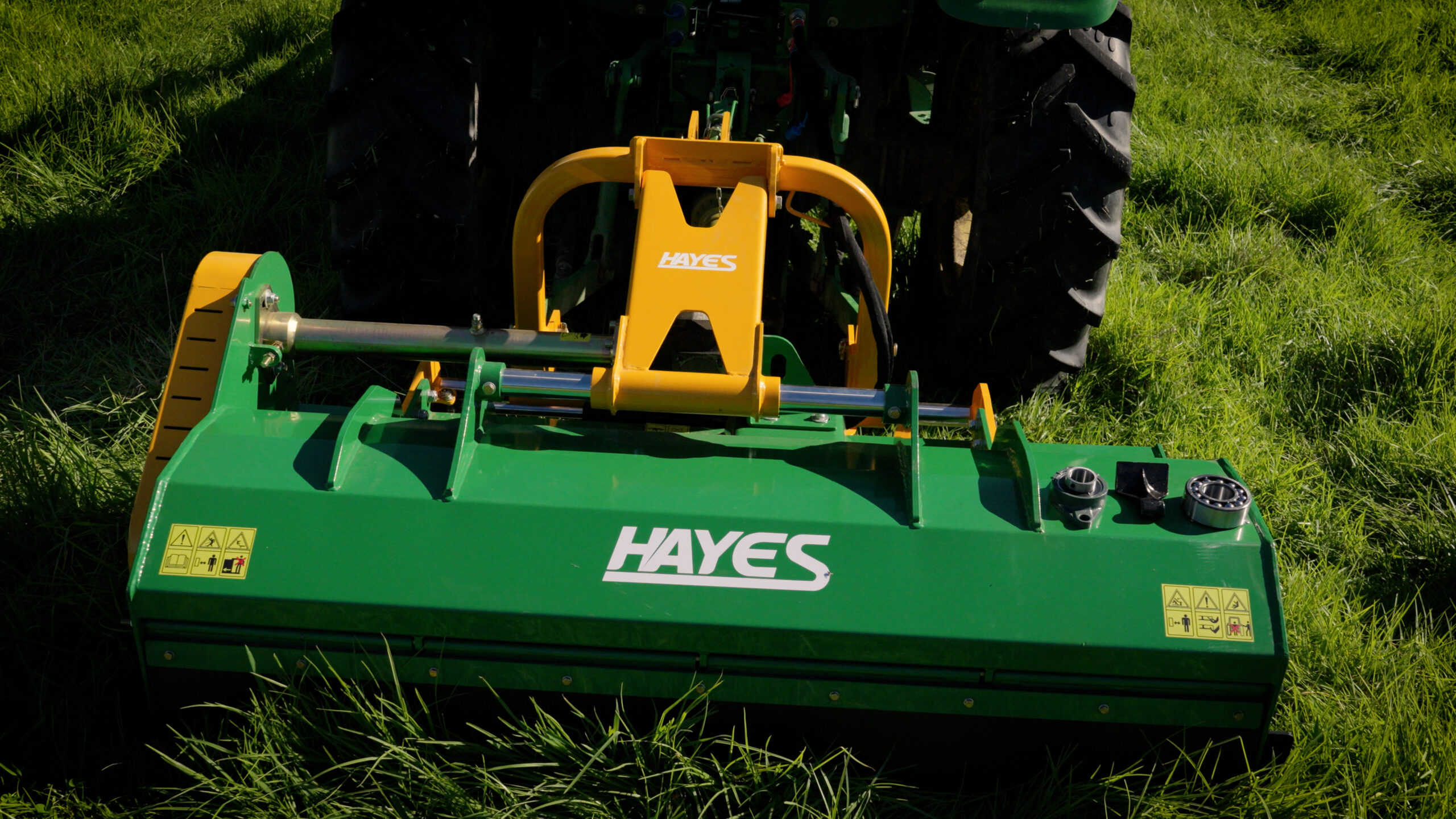

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

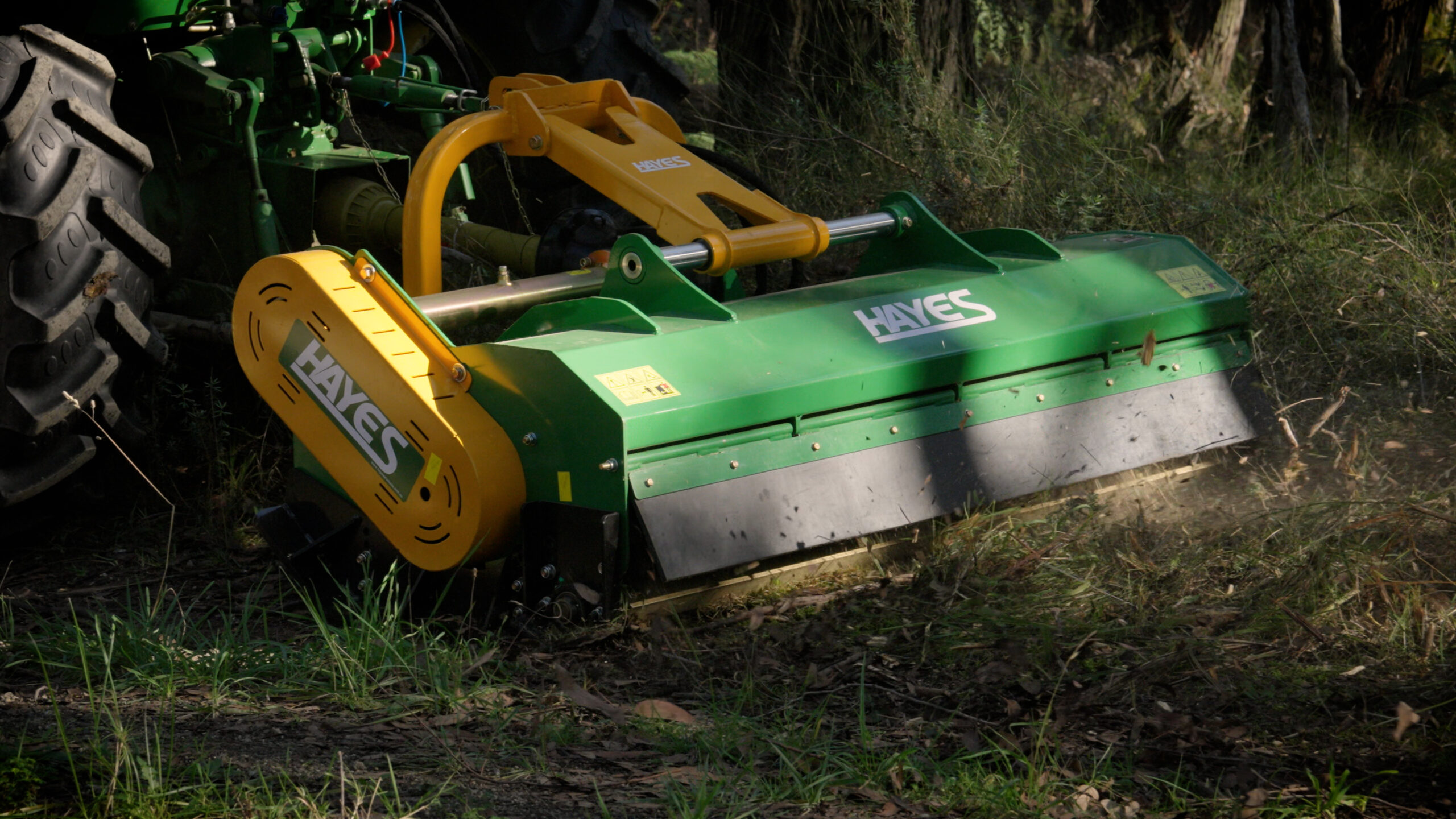

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

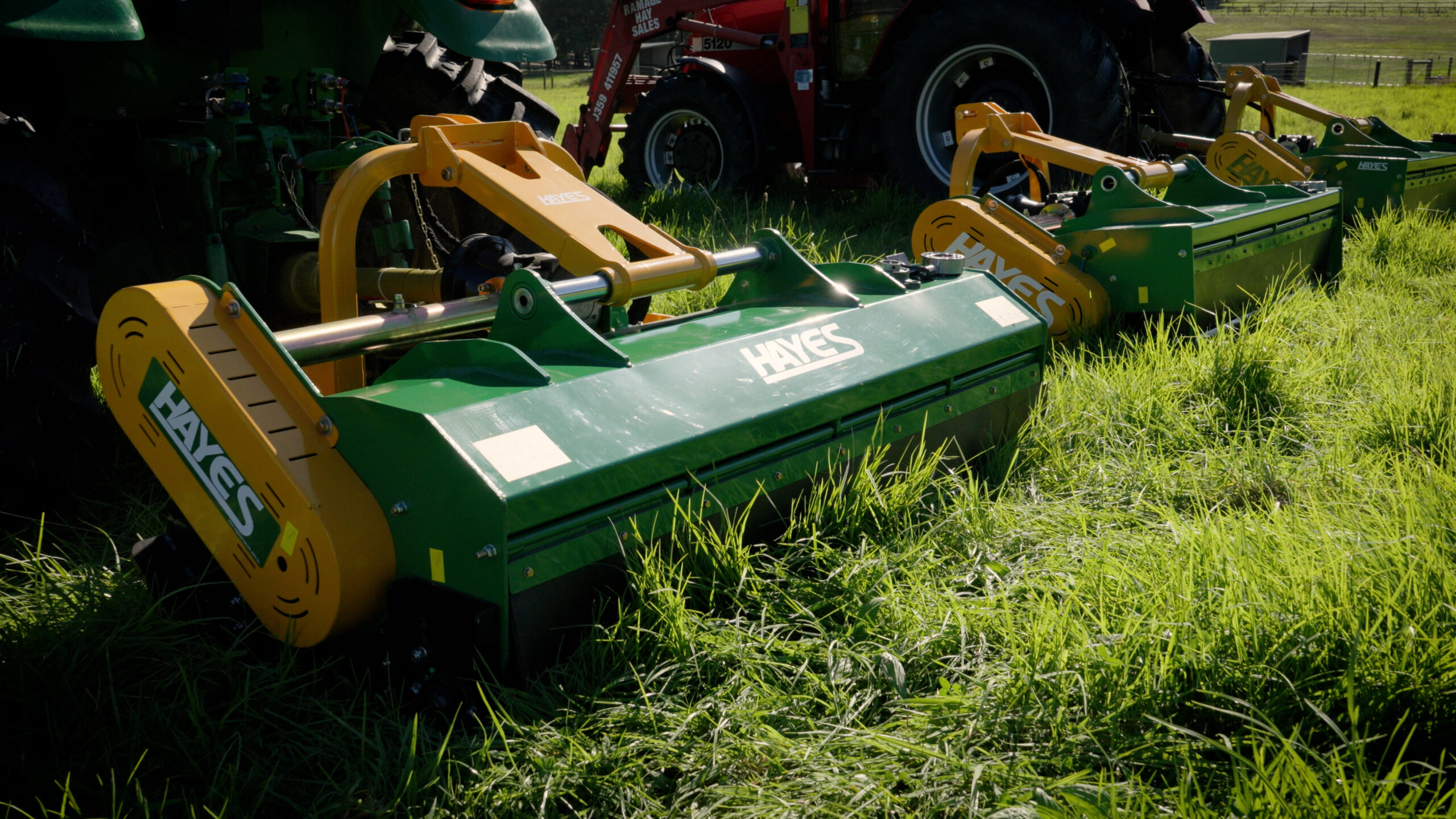

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

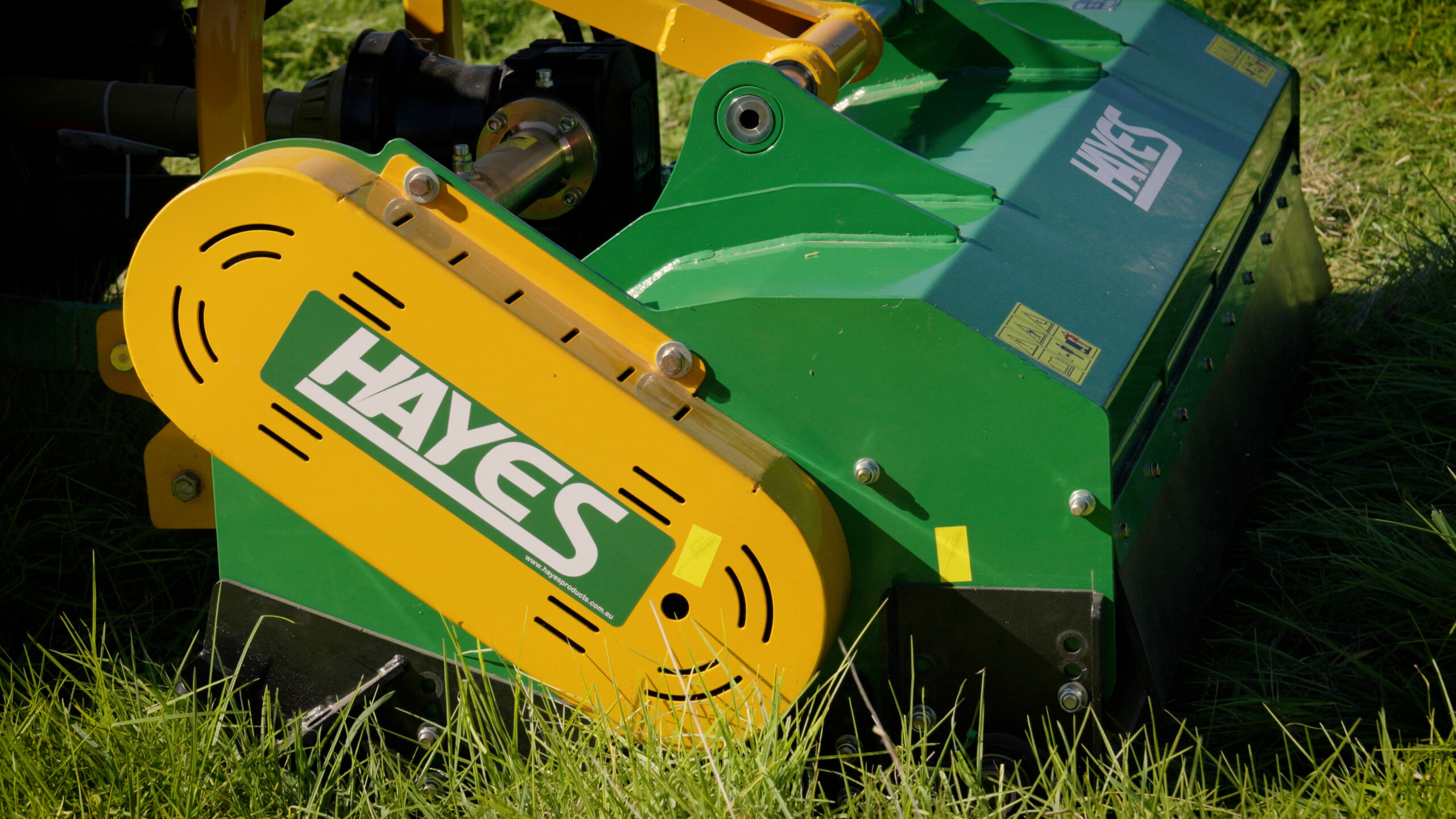

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

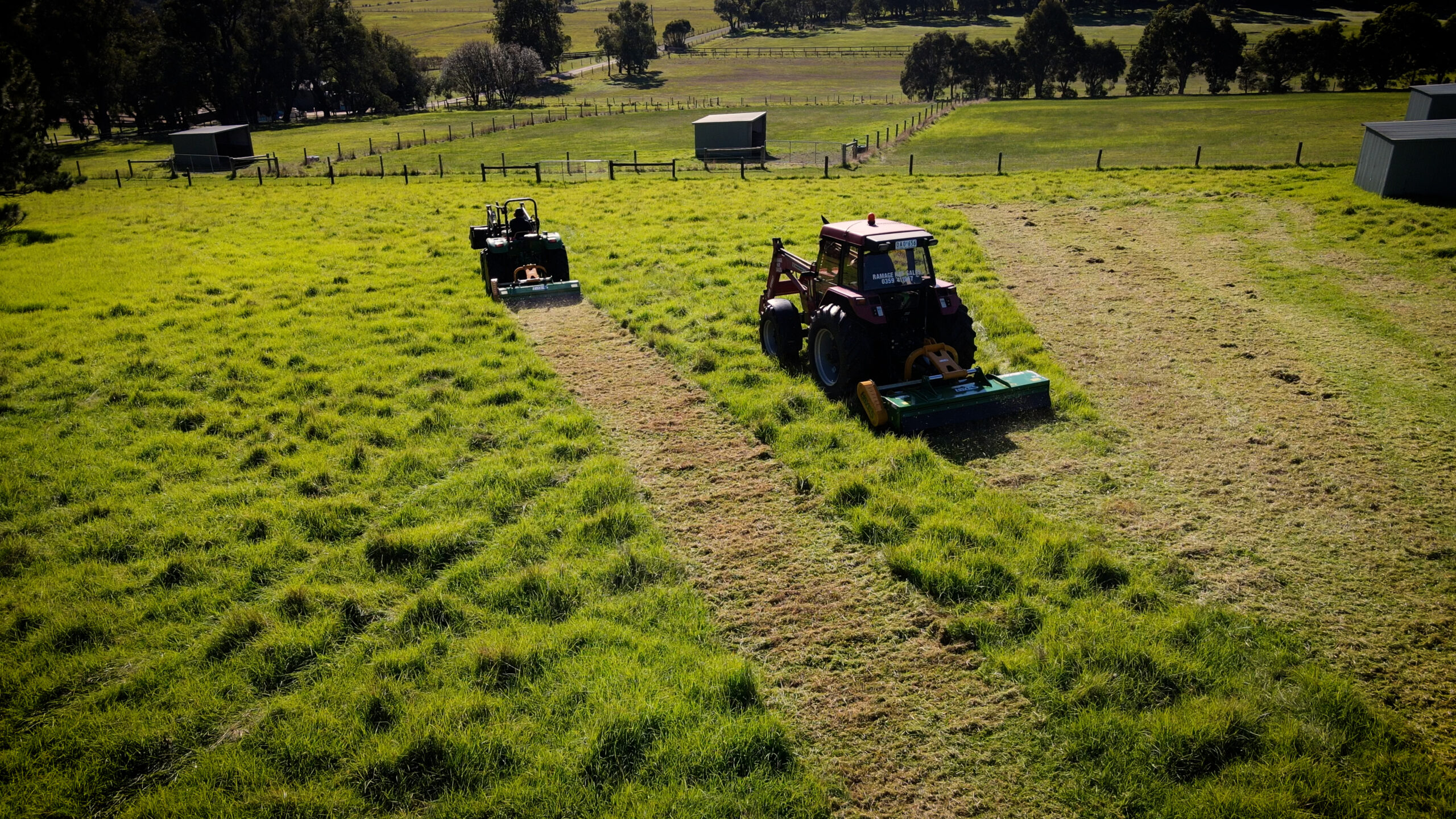

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

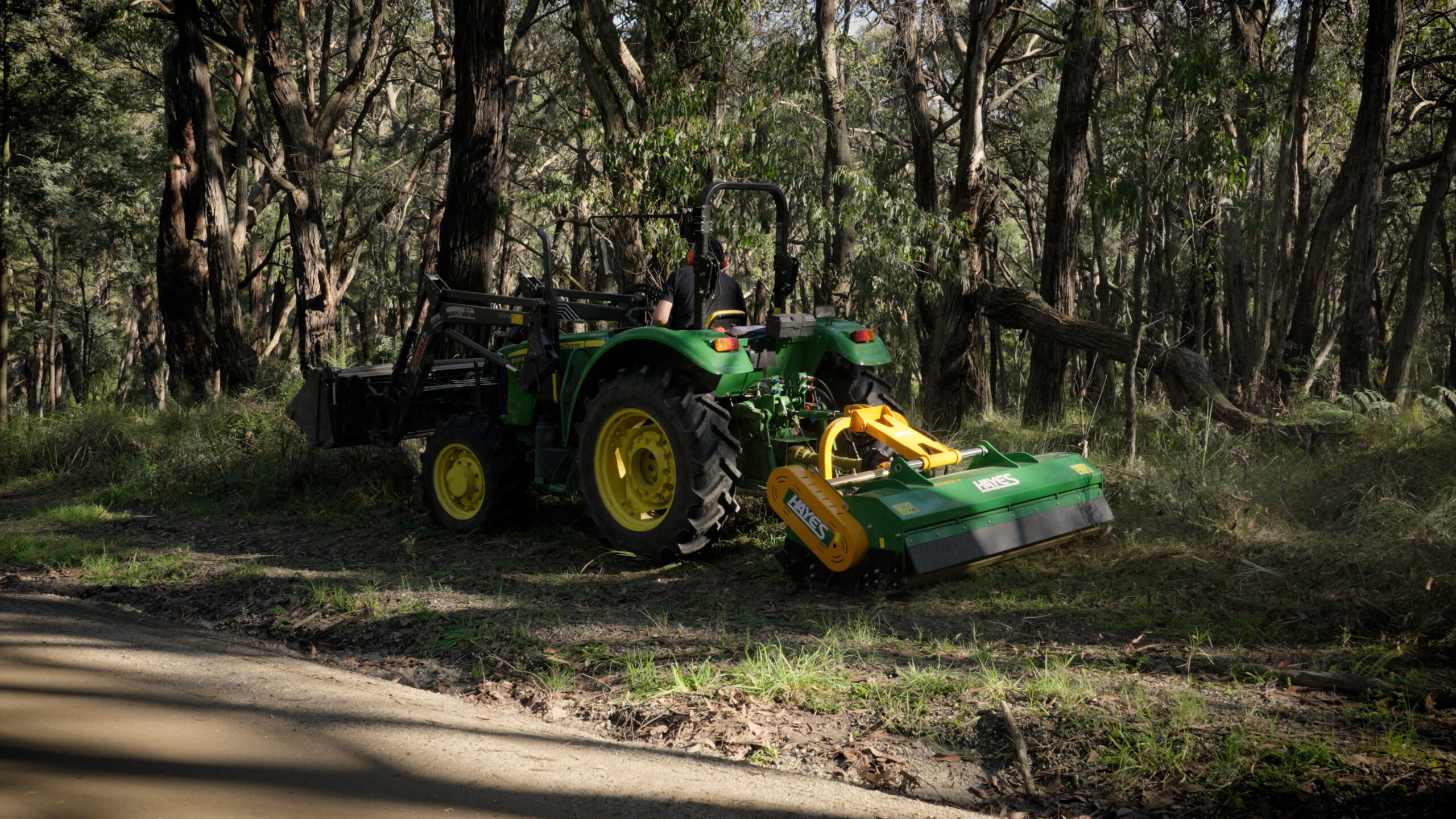

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000

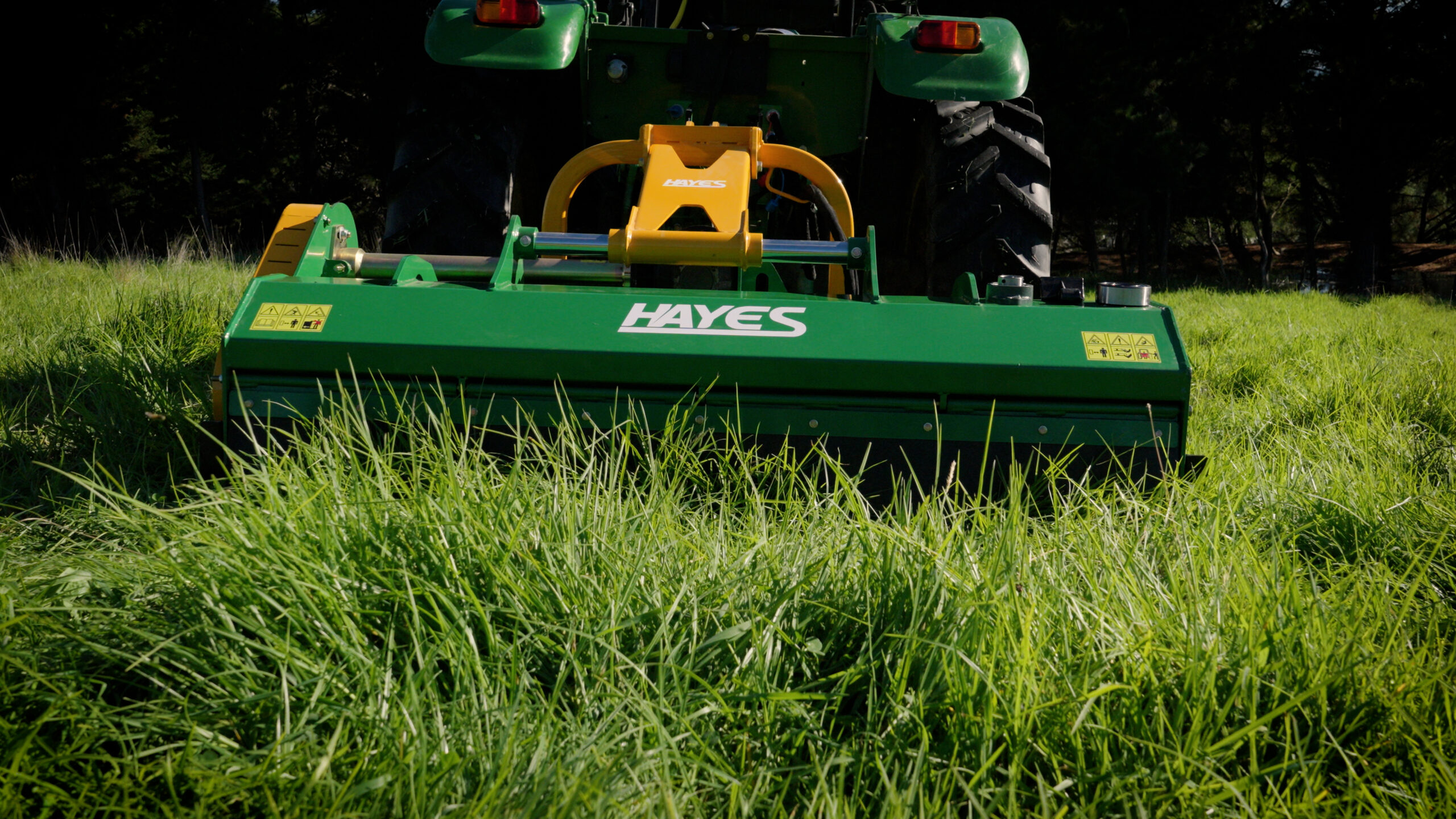

Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I 1500 mechanical side-shift flail mower in operation, SKU 24000
Hayes Contractor Series I flail mower – SKU 24000
Hayes Contractor Series I flail mower – SKU 24000

Description

Hayes Contractor Series I 2100 flail mower with hydraulic side shift is designed for 53–80 hp tractors. It has a 2100 mm cutting width, 30 hammer blades, a 168 mm blade shaft, SKF bearings and Category 1 linkage. SKU 24080-H.

  • 168 mm (6.6 inch) diameter blade shaft for increased strength and superior balancing

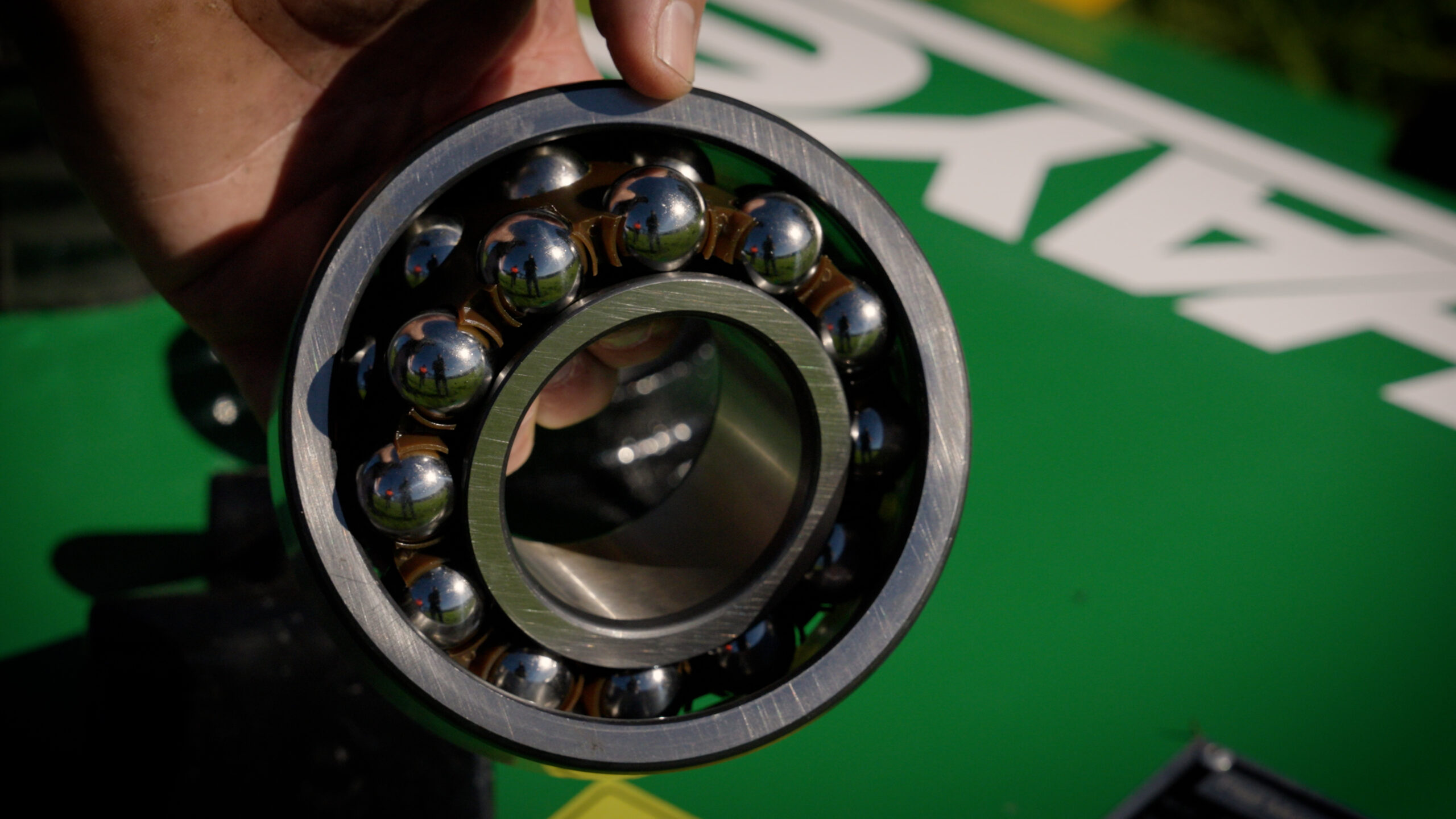

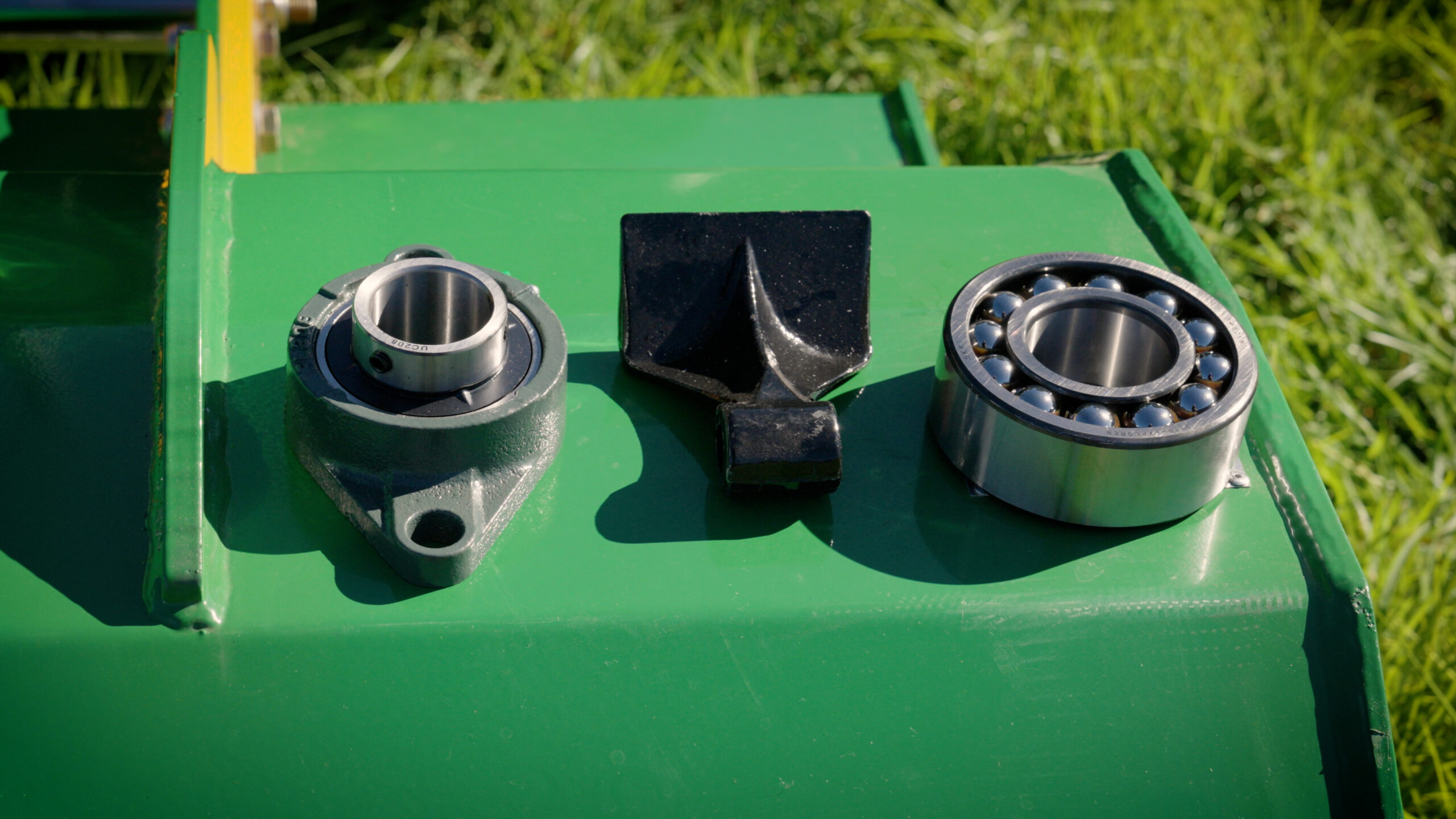

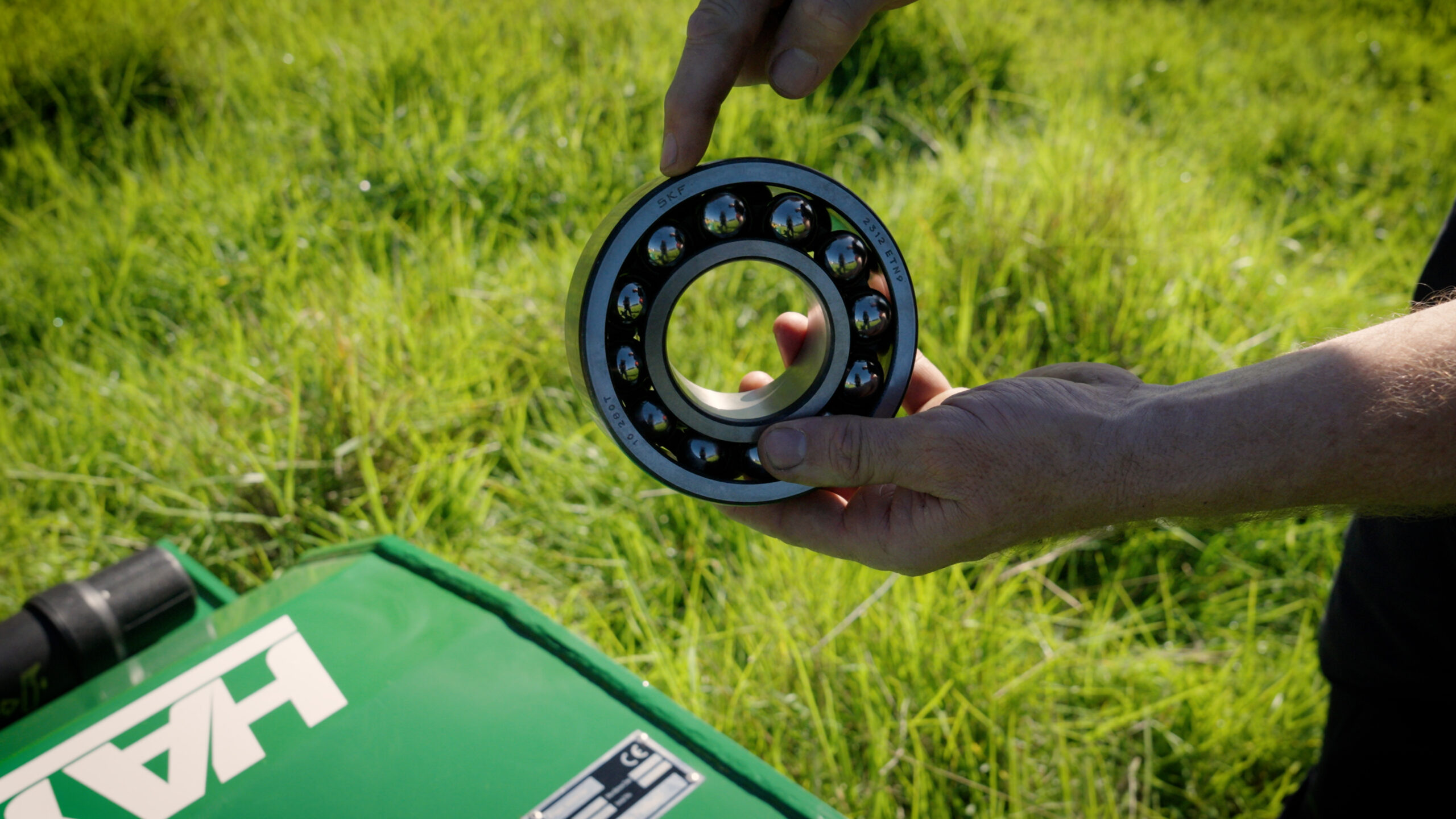

  • Blade shaft runs on 50 mm dual-race SKF bearings with external access
  • 168 mm diameter rear roller running on 35 mm bearings
  • High-discharge design to increase ground speed

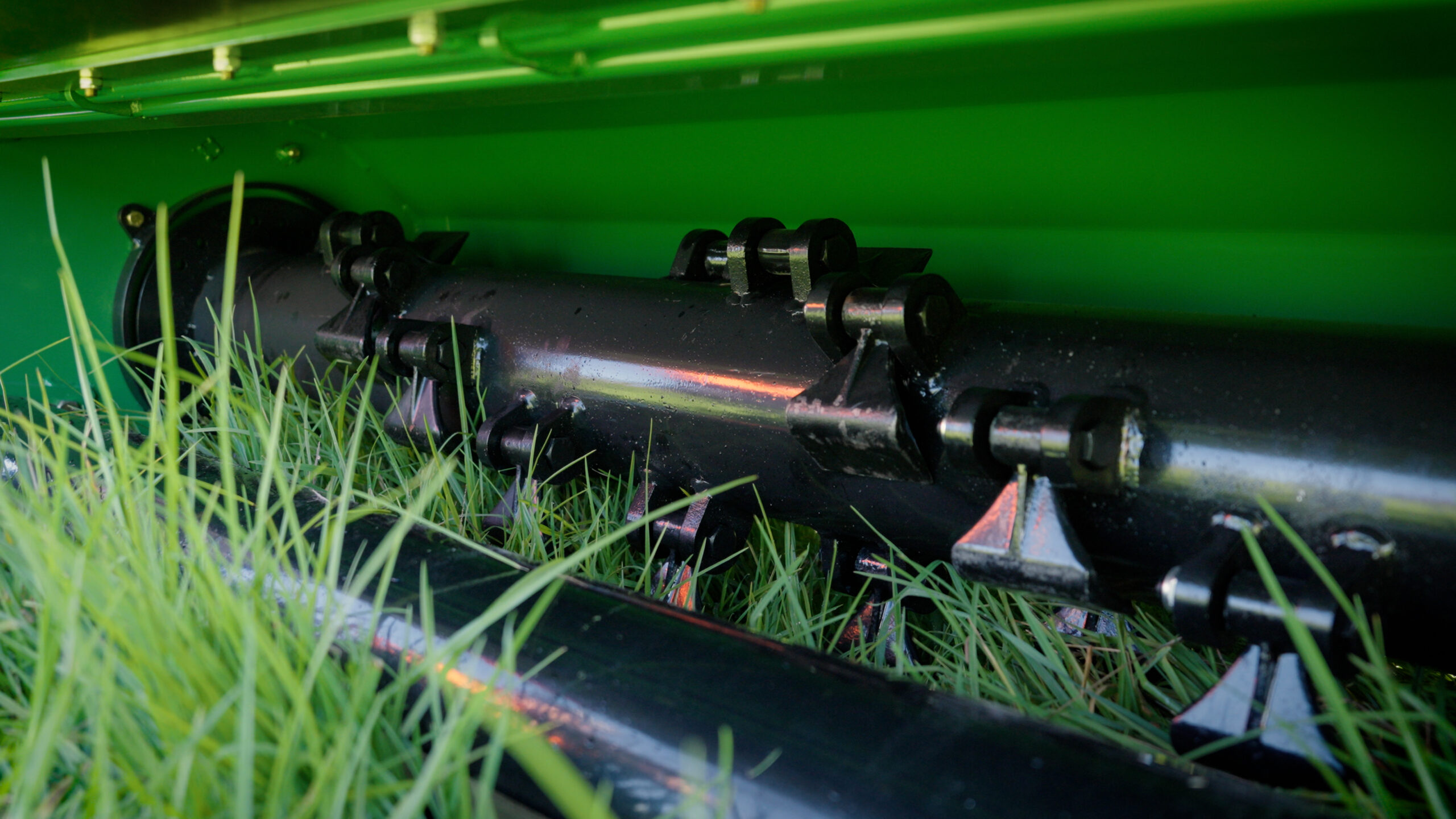

  • Spiral placement of cutting blades to maximise efficiency and reduce the power required to drive the mower
  • Extra-high cut setting up to 100 mm, useful in heavier conditions and areas where rocks or tree stumps may protrude from the ground
  • When fully side shifted to the non-belt side, the cut extends 1350 mm from the tractor centreline
  • When fully side shifted to the belt side, the cut extends 1150 mm from the tractor centreline

See sizing guide and comparison sheet below.

Hayes Contractor Series I 2100 hydraulic side shift flail mower sizing guide, SKU 24080-H

* Please note – photo shown is of the Contractor Series I 1800.

Hayes flail mower comparison information for Contractor Series I 2100 hydraulic side shift, SKU 24080-H

Specifications

Horsepower 53–80 hp
Cut Width 2100 mm
Cut Height 50–100 mm
Sideshift Hydraulic
Blade shaft 168 mm
Qty blades 30
Std blades Hammer type
Belts 4 x B Section
Bearing SKF
Deck thickness 4 mm
Hitch pins CAT 1 (shim kit available for CAT 2)
PTO rpm 540
Overall width 2370 mm
Weight 644 kg
  • The PTO shaft is included in the price
  • The gearbox and shaft require oil. To ensure the unit is filled in the correct locations, to the correct level and with the correct oil, Hayes can fill it for $20 inc GST
  • The product is shipped in a steel frame to enable cost-effective freight, therefore some assembly is required
  • 12 months manufacturing warranty excluding consumables such as blades and belts, and 24 months gearbox warranty
