Description

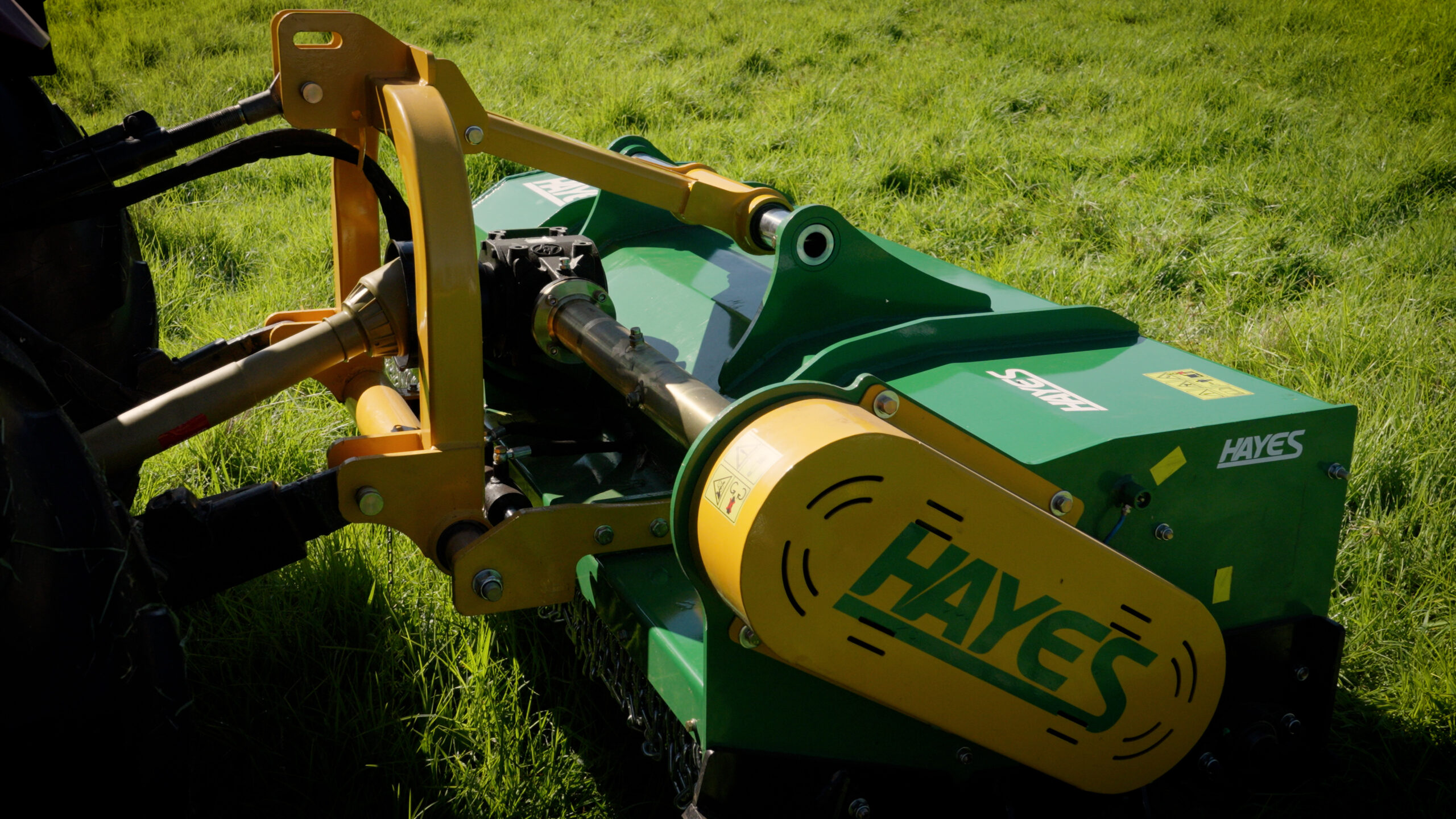

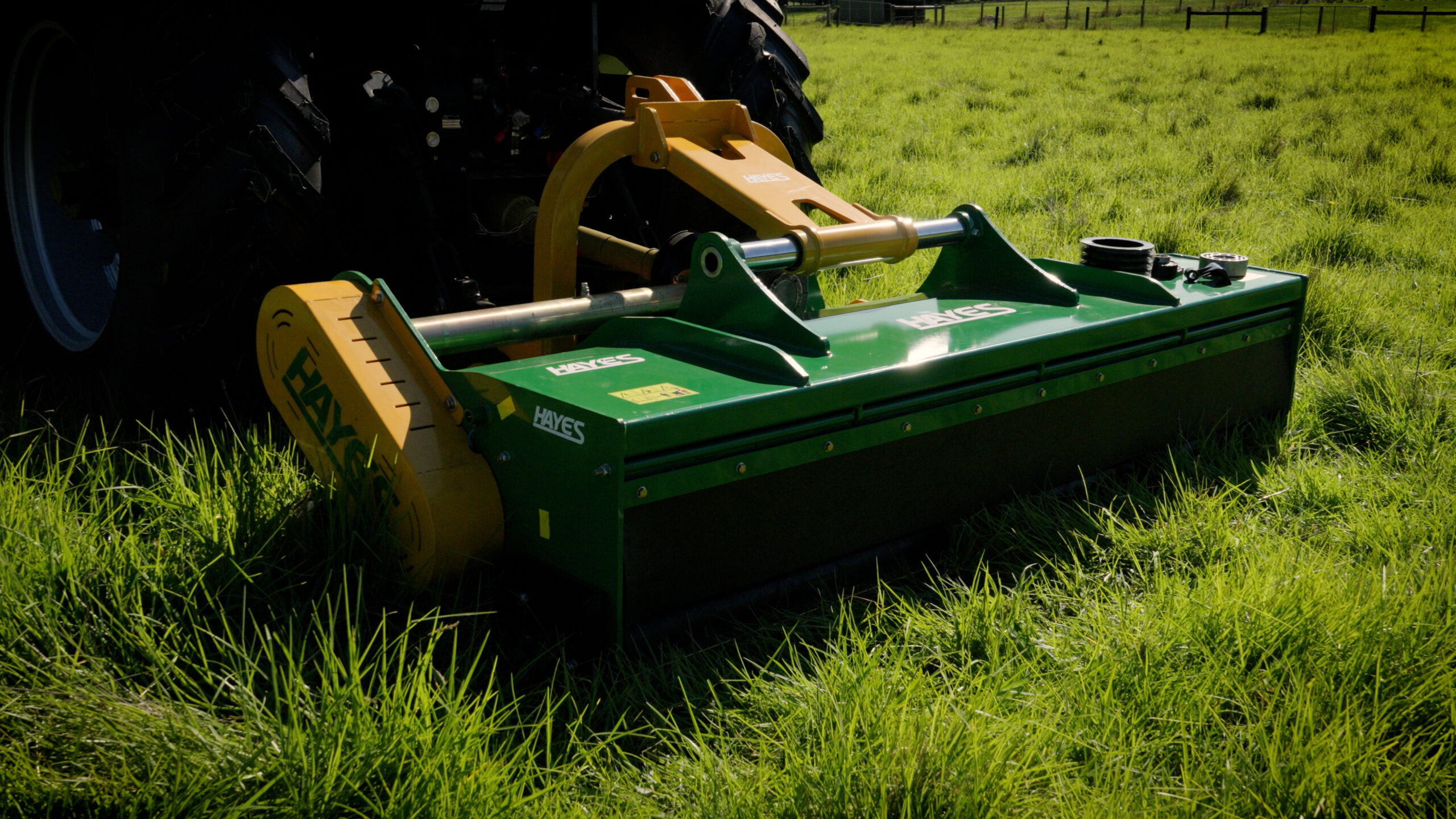

Hayes Contractor Series III 2400 flail mower is a heavy-duty hydraulic side-shift mower for 60–130 hp tractors. It has a 2400 mm cutting width, 34 hammer blades, a 194 mm blade shaft, SKF bearings and Category 2 linkage. SKU 20020.

Large 194 mm (7.6 inch) diameter blade shaft for increased strength and superior balancing

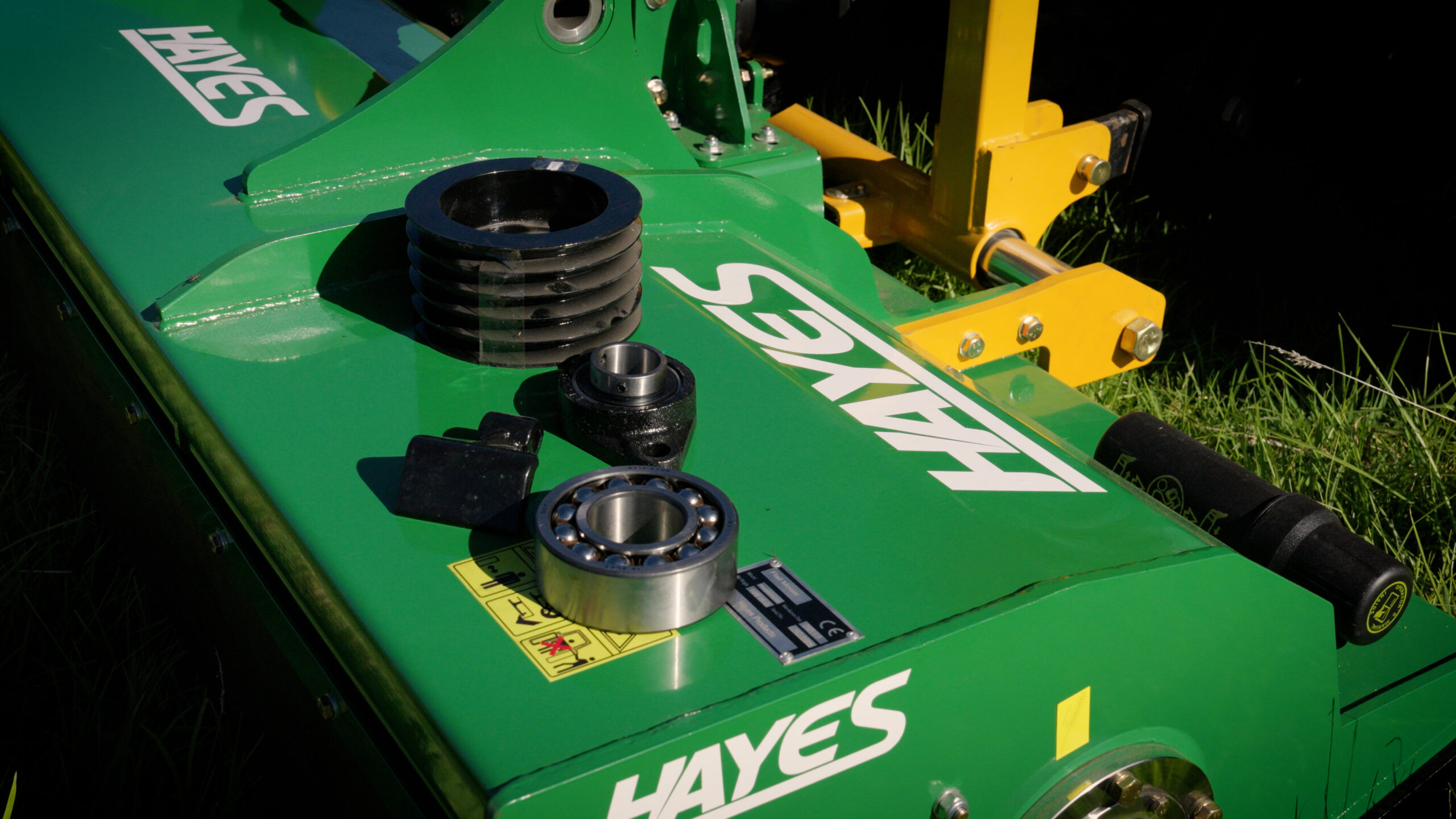

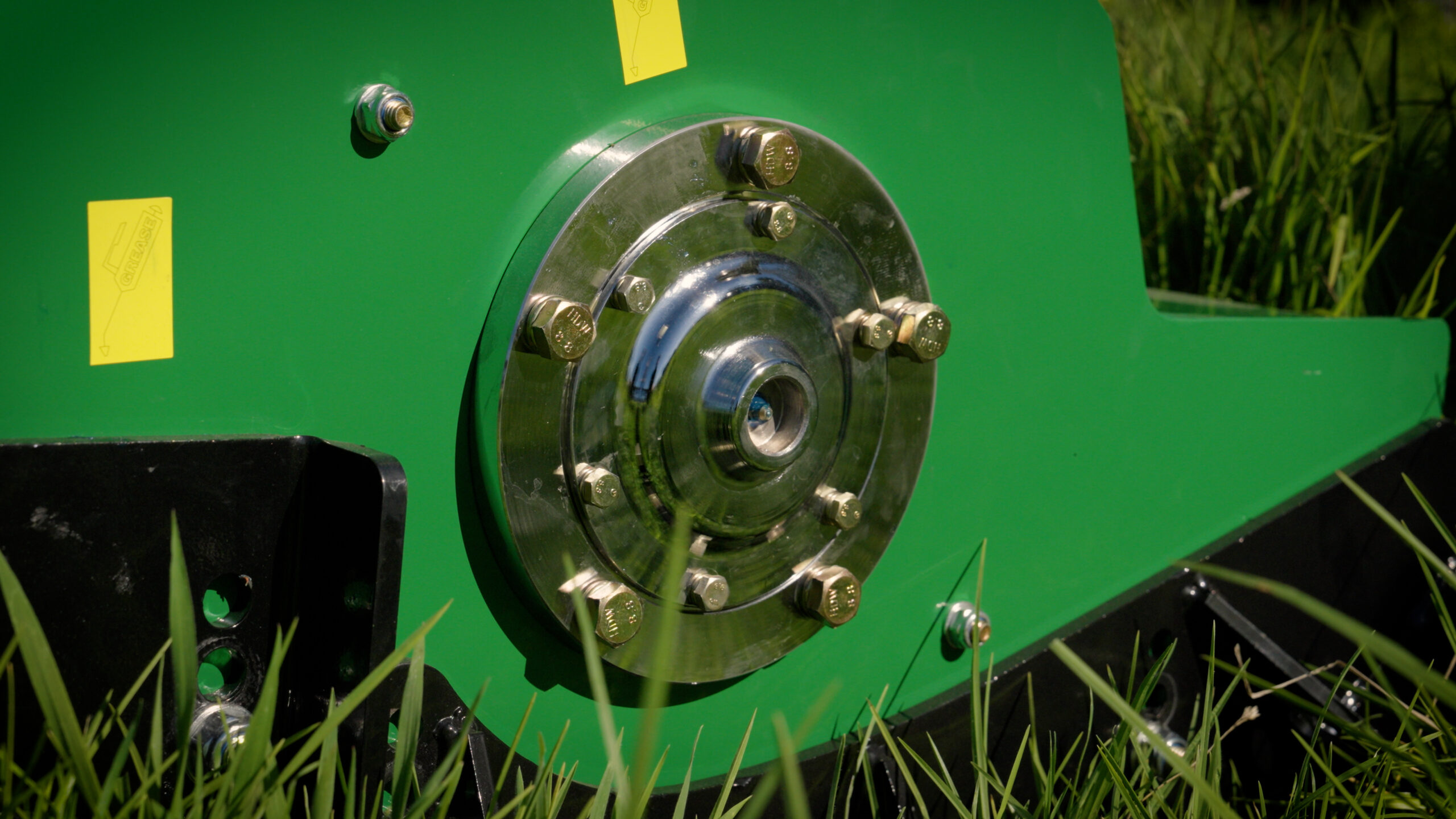

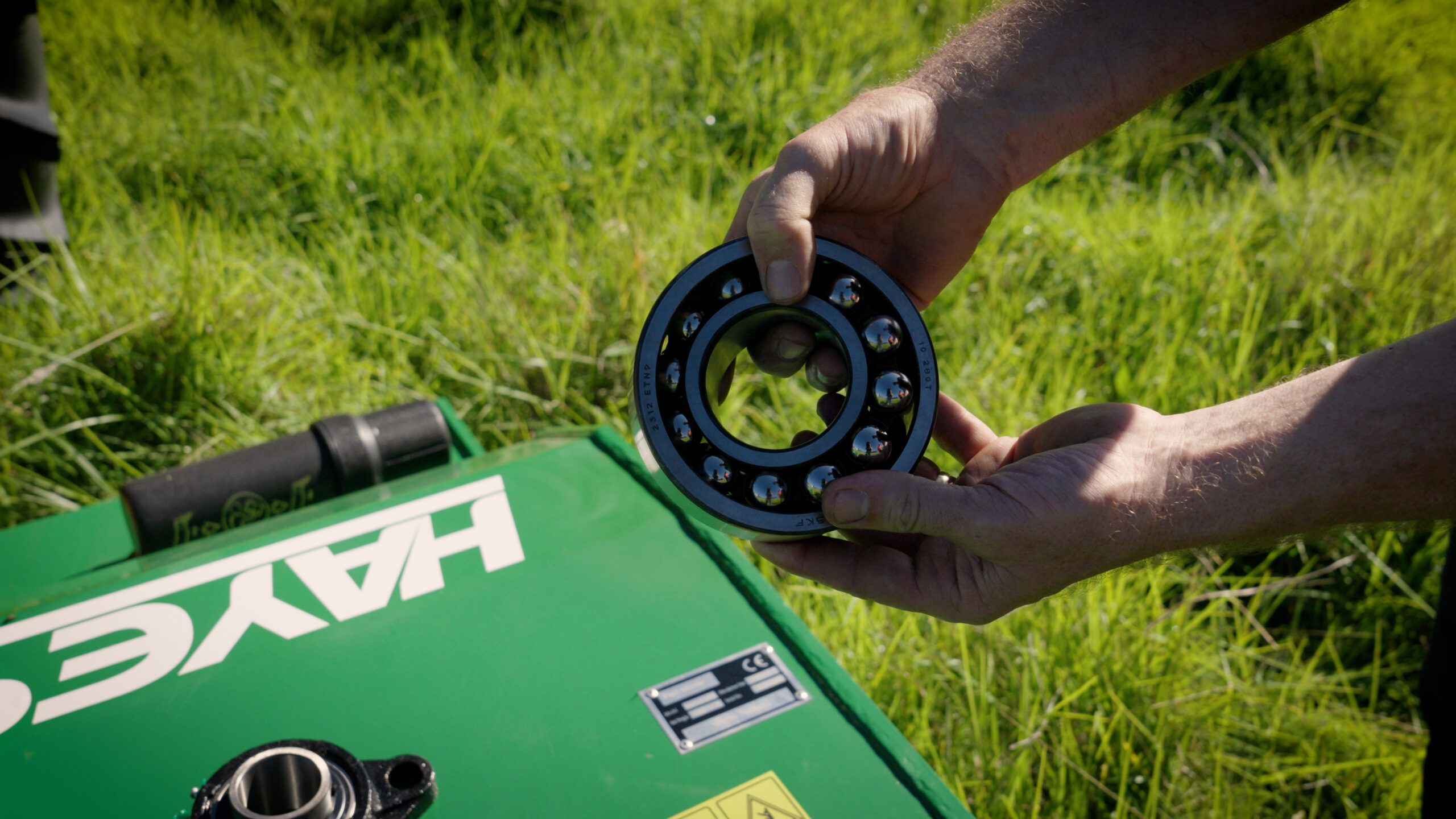

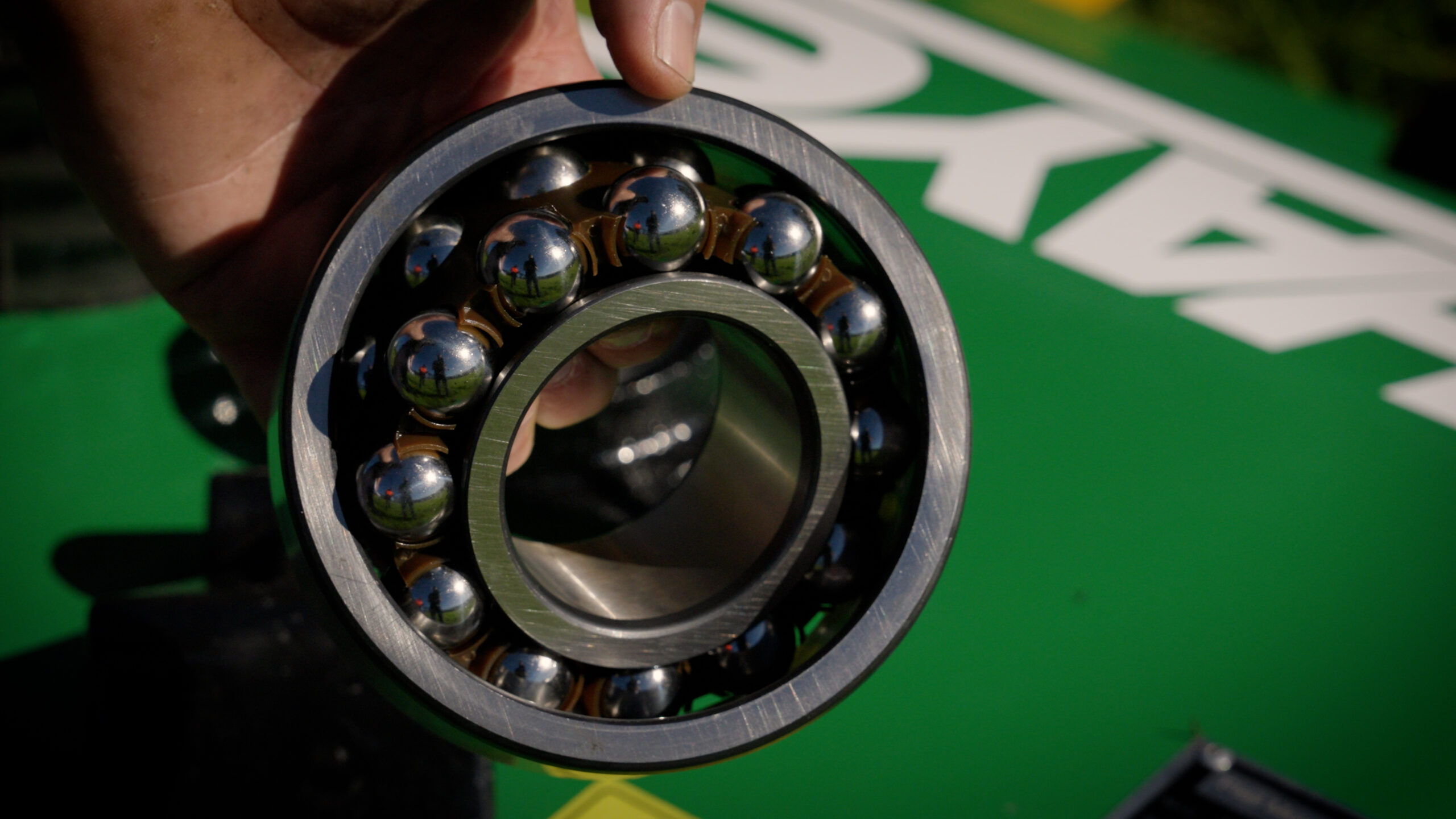

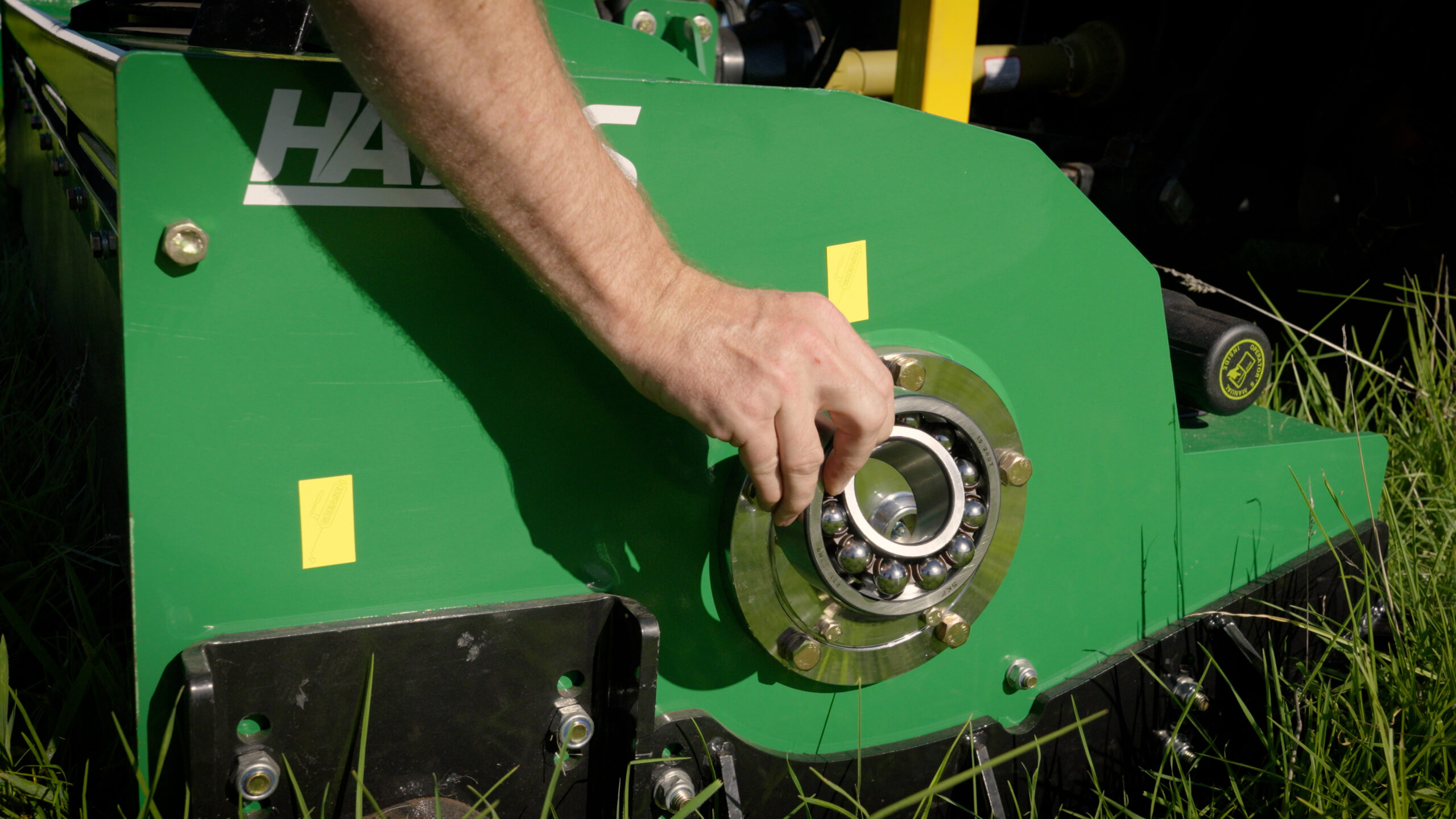

Blade shaft runs on 60 mm dual-race SKF bearings with external access
194 mm diameter rear roller running on 45 mm bearings
High-discharge design to increase ground speed

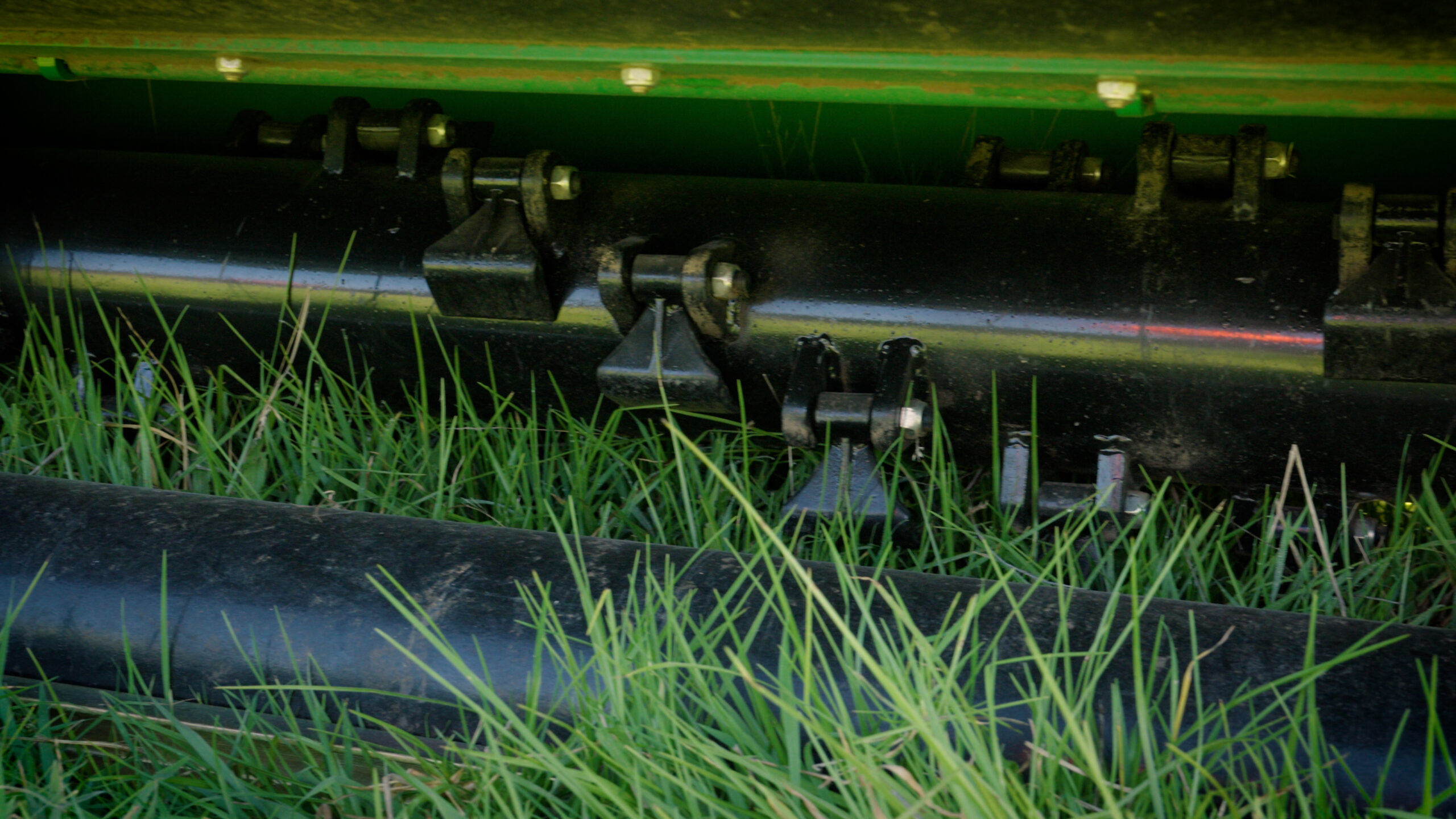

Spiral placement of cutting blades to maximise efficiency and reduce the power required to drive the mower

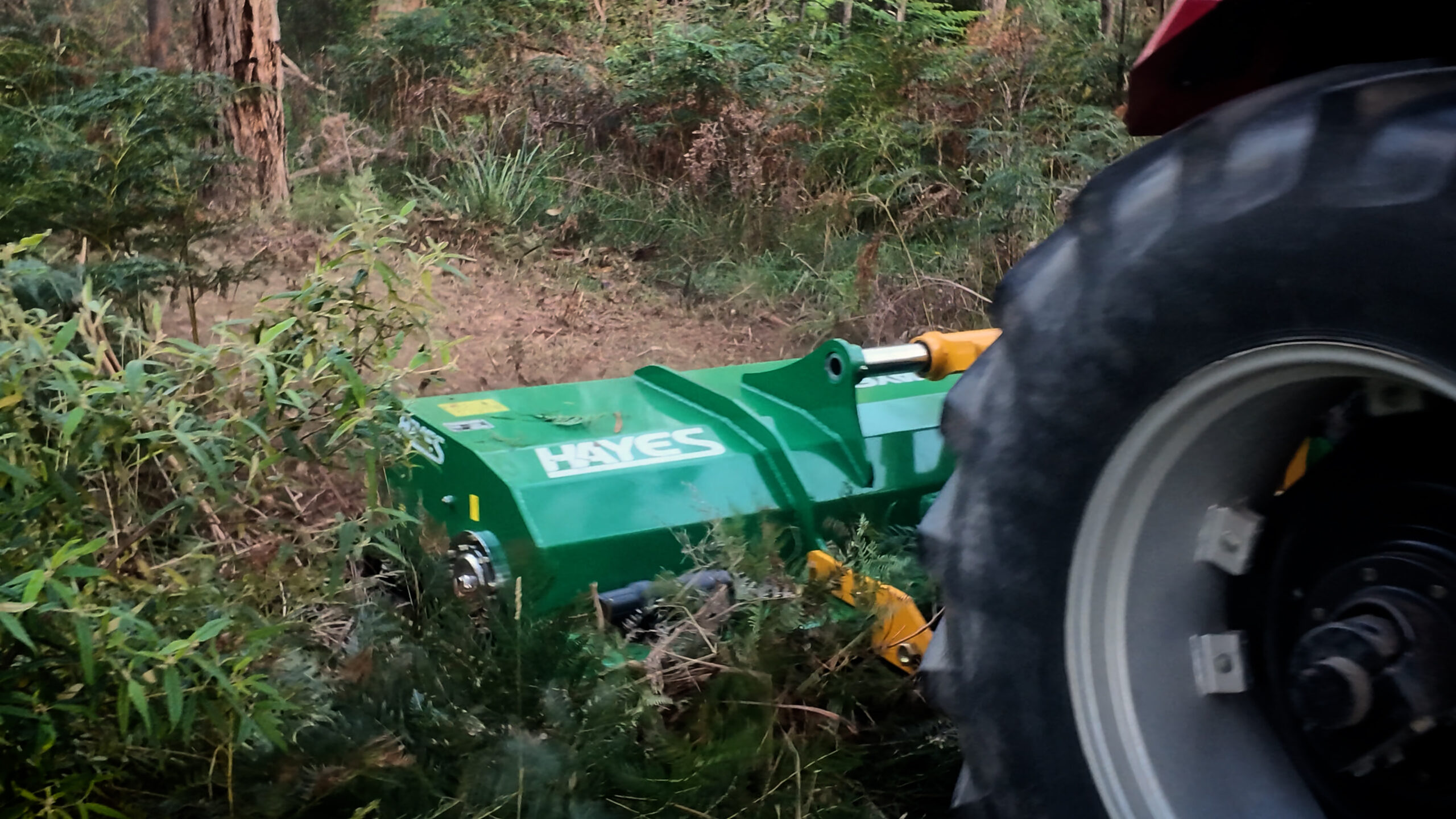

Extra-high cut setting up to 100 mm, useful in heavier conditions and areas where rocks or tree stumps may protrude from the ground
When fully side shifted to the non-belt side, the cut extends 1500 mm from the tractor centreline
When fully side shifted to the belt side, the cut extends 1300 mm from the tractor centreline

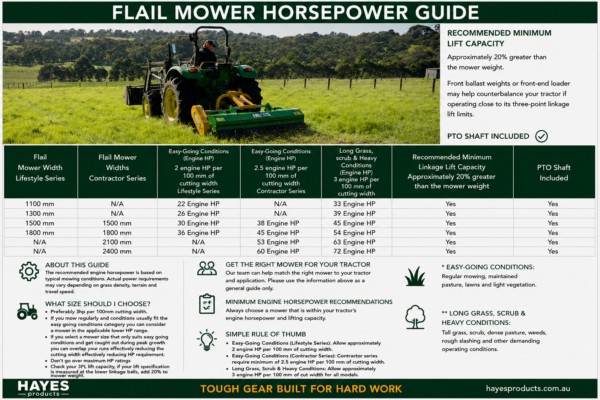

See sizing guide and comparison sheet below.

Specifications

Horsepower	60–130 hp
Cut Width	2400 mm
Cut Height	50–100 mm
Sideshift	Hydraulic
Blade shaft	194 mm
Qty blades	34
Std blades	Hammer type
Belts	5 x B Section
Bearing	SKF
Deck thickness	6 mm

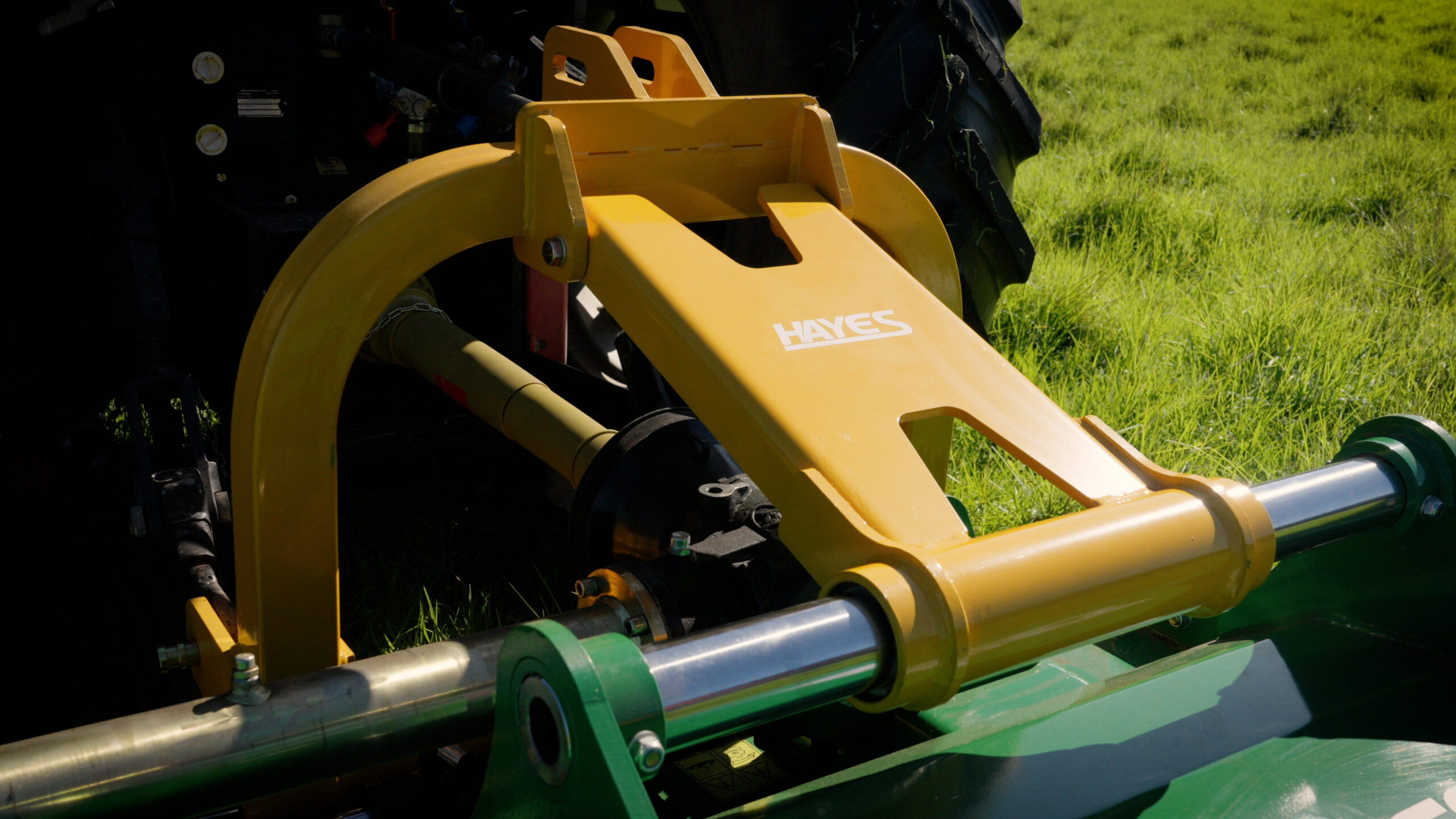

Hitch pins	CAT 2
PTO rpm	540
Overall width	2710 mm
Weight	1090 kg

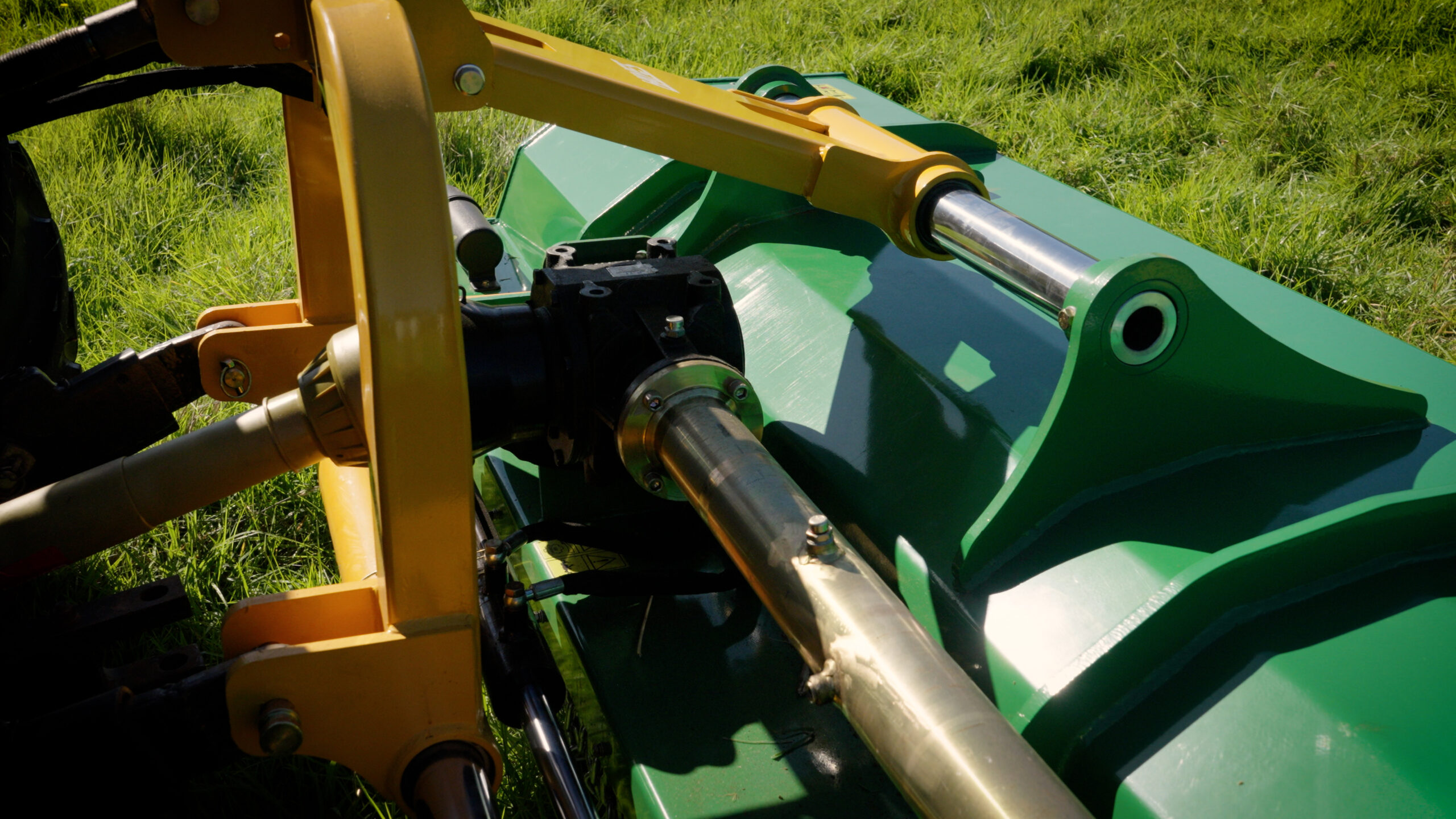

The PTO shaft is included in the price
The gearbox and shaft require oil. To ensure the unit is filled in the correct locations, to the correct level and with the correct oil, Hayes can fill it for $20 inc GST
The product is shipped in a steel frame to enable cost-effective freight, therefore some assembly is required
12 months manufacturing warranty excluding consumables such as blades and belts, and 24 months gearbox warranty
