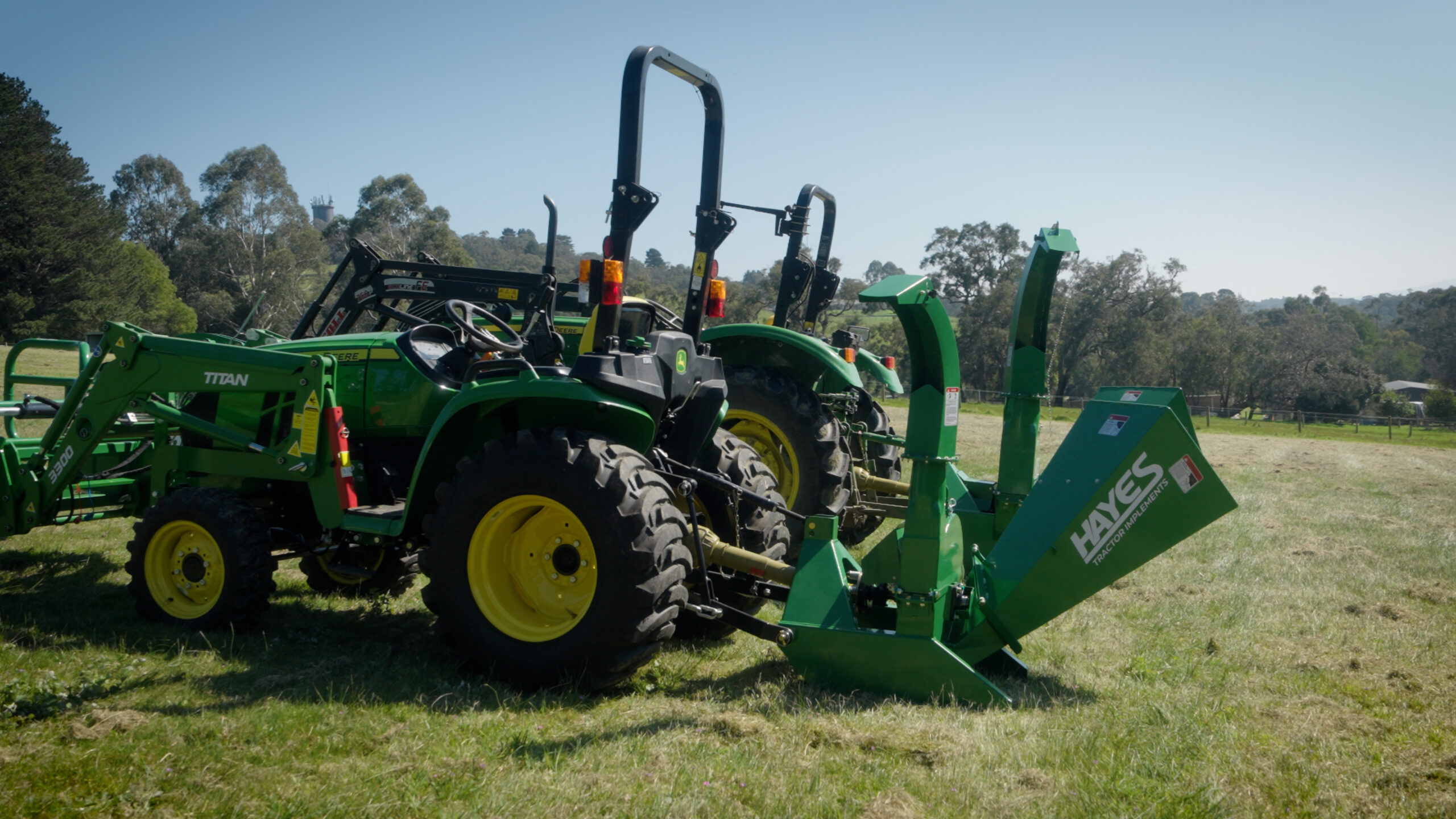

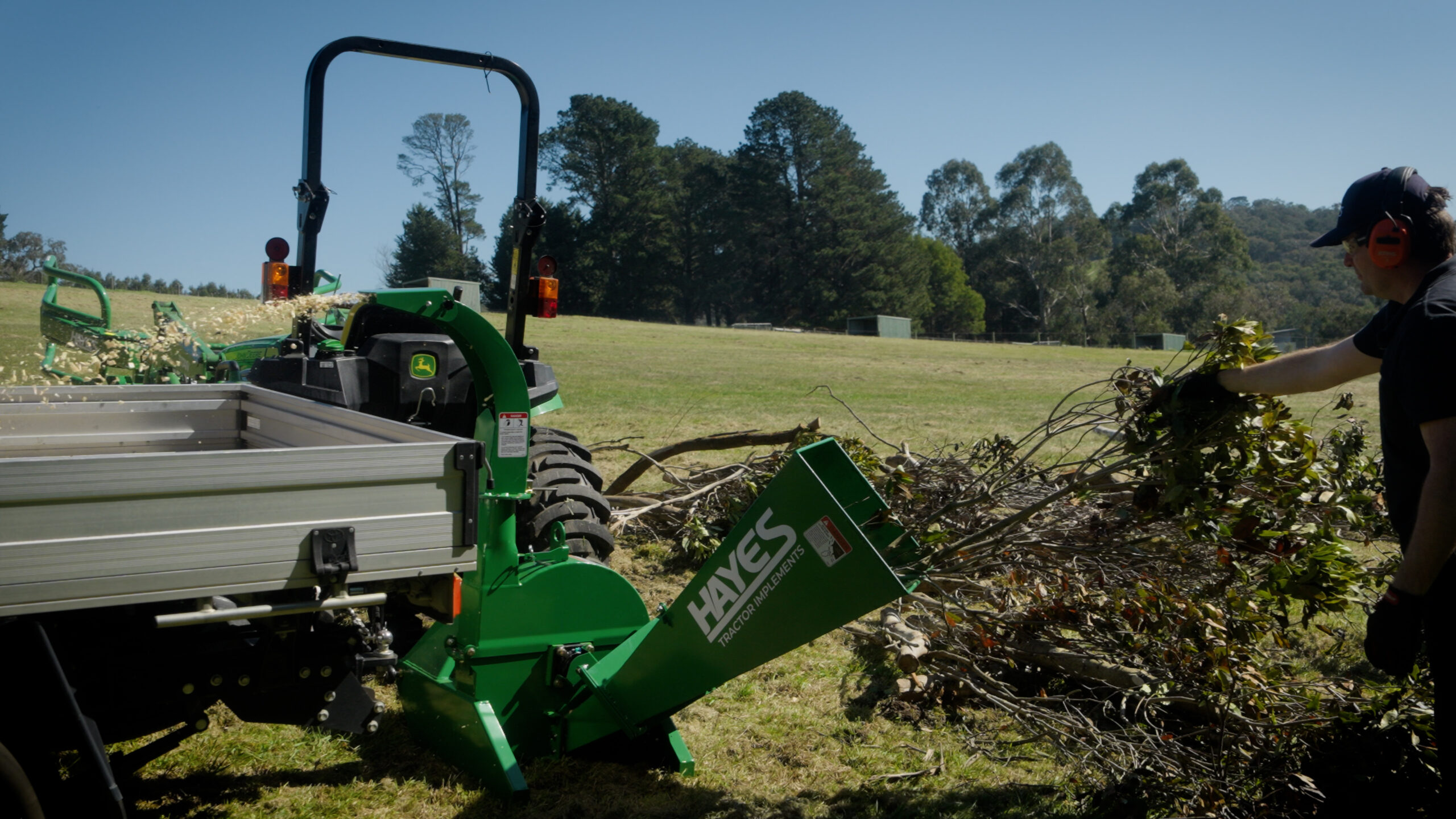

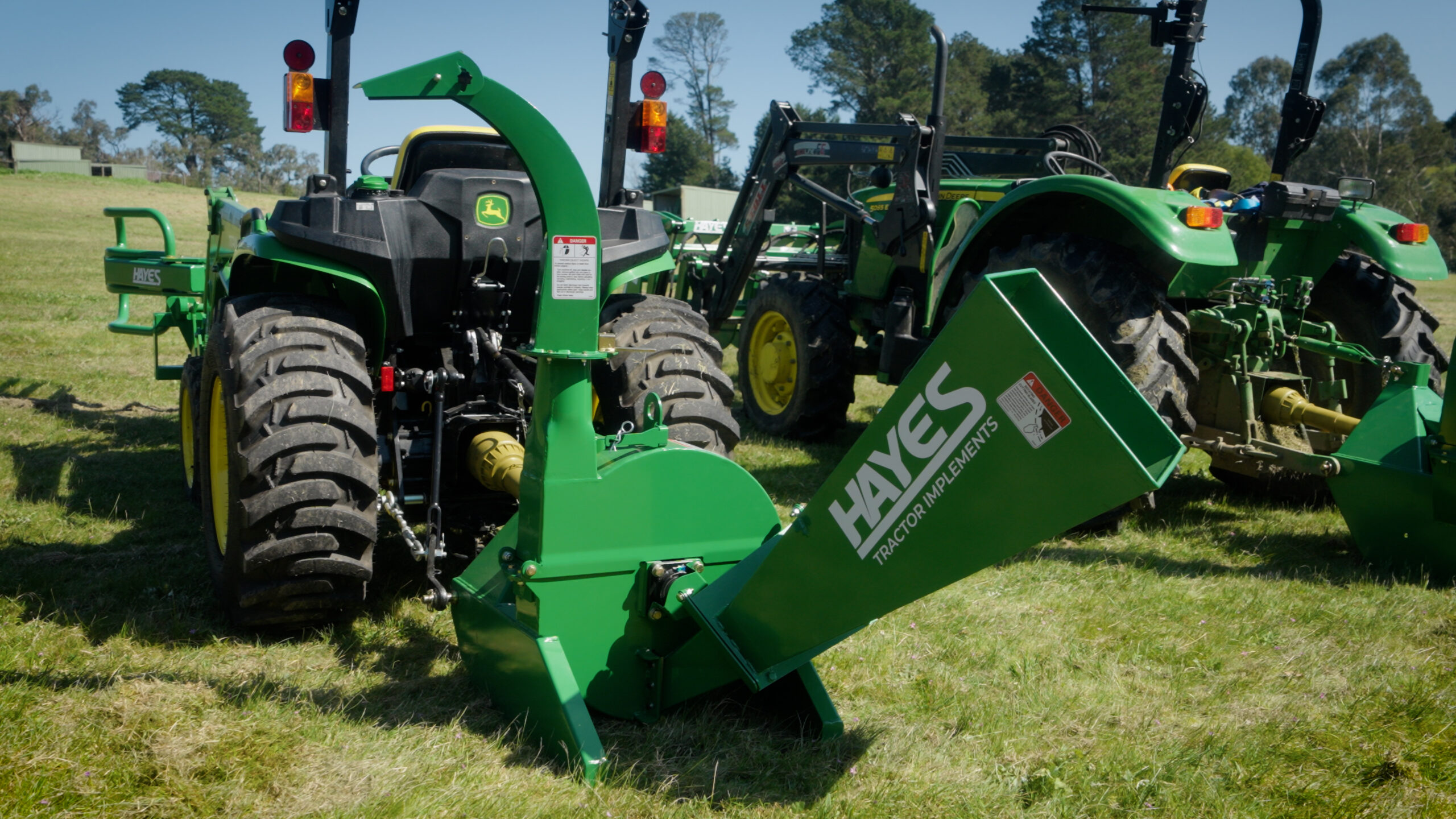

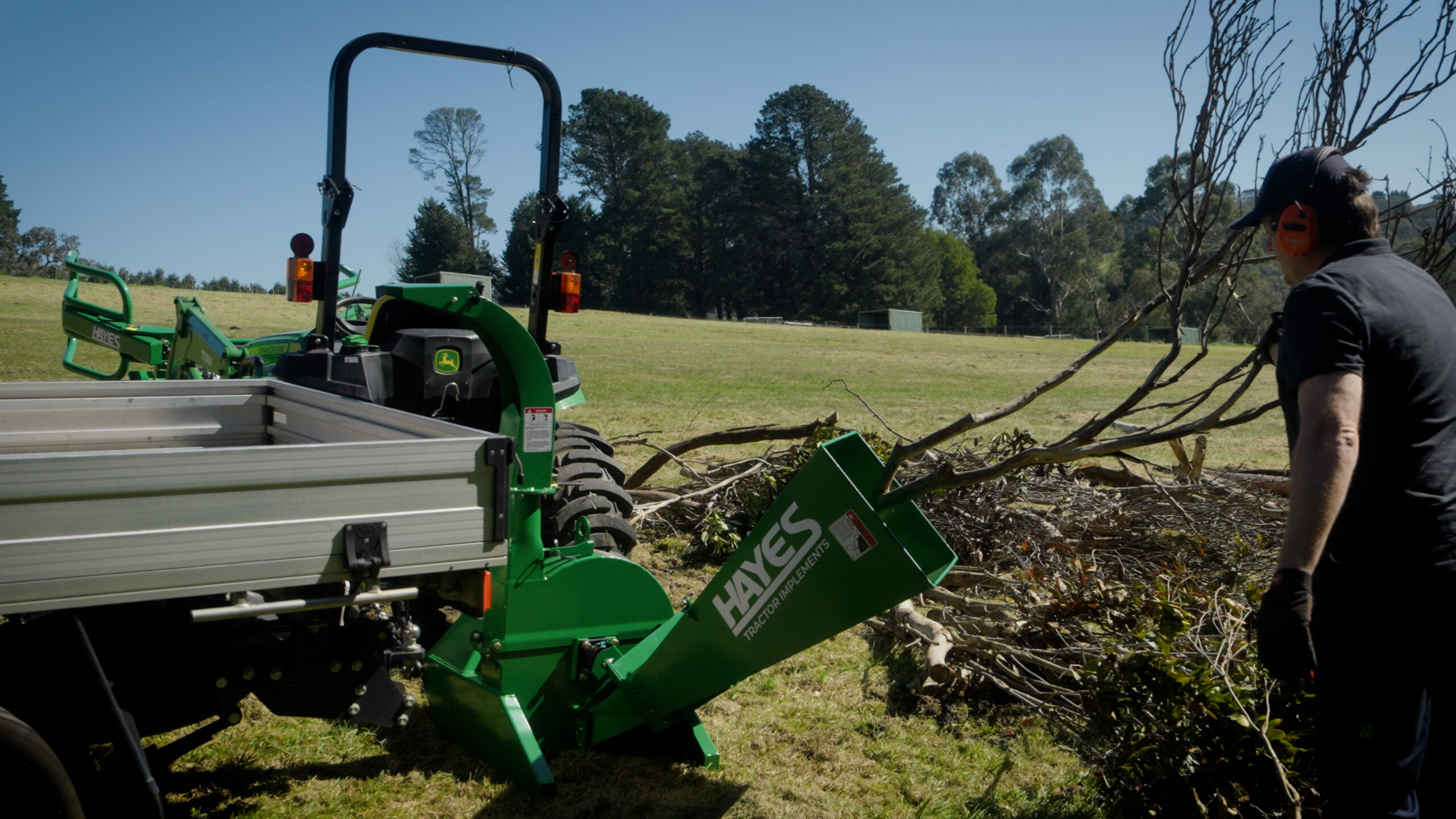

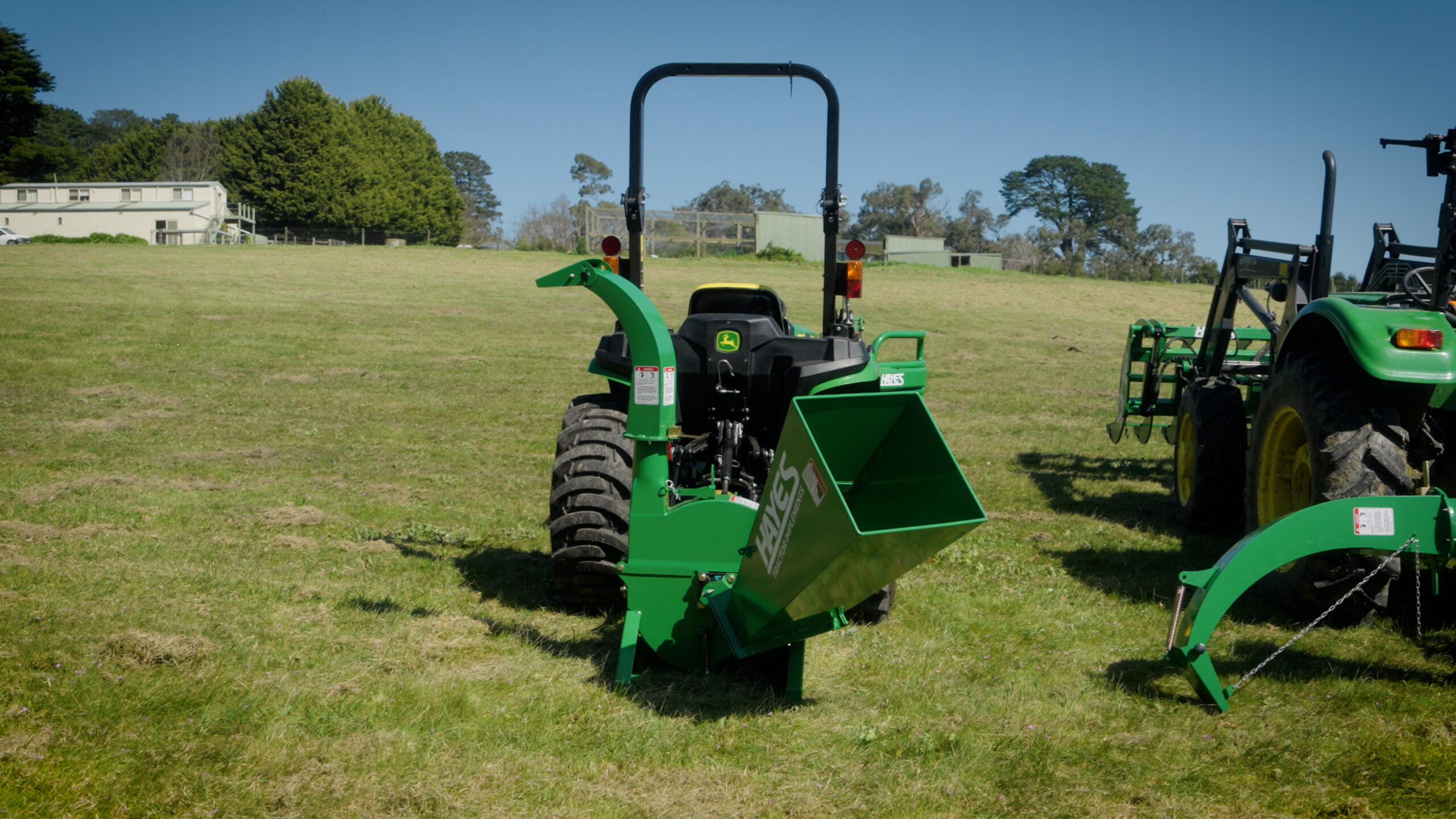

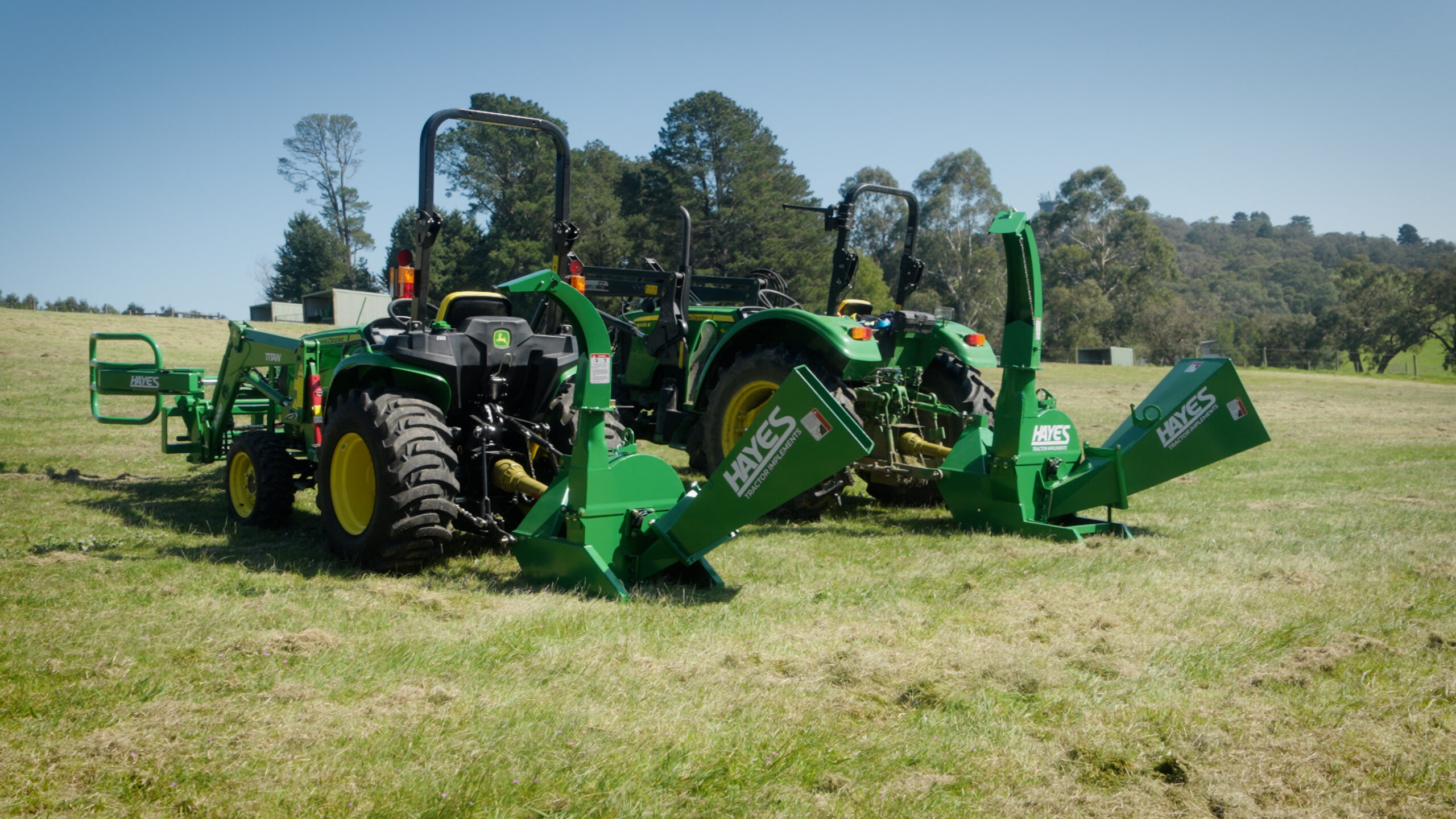

4 Inch gravity feed PTO wood chipper

Description



• Simple, low maintenance direct drive of fly wheel and cutting blades
• Slip clutch to protect the tractor

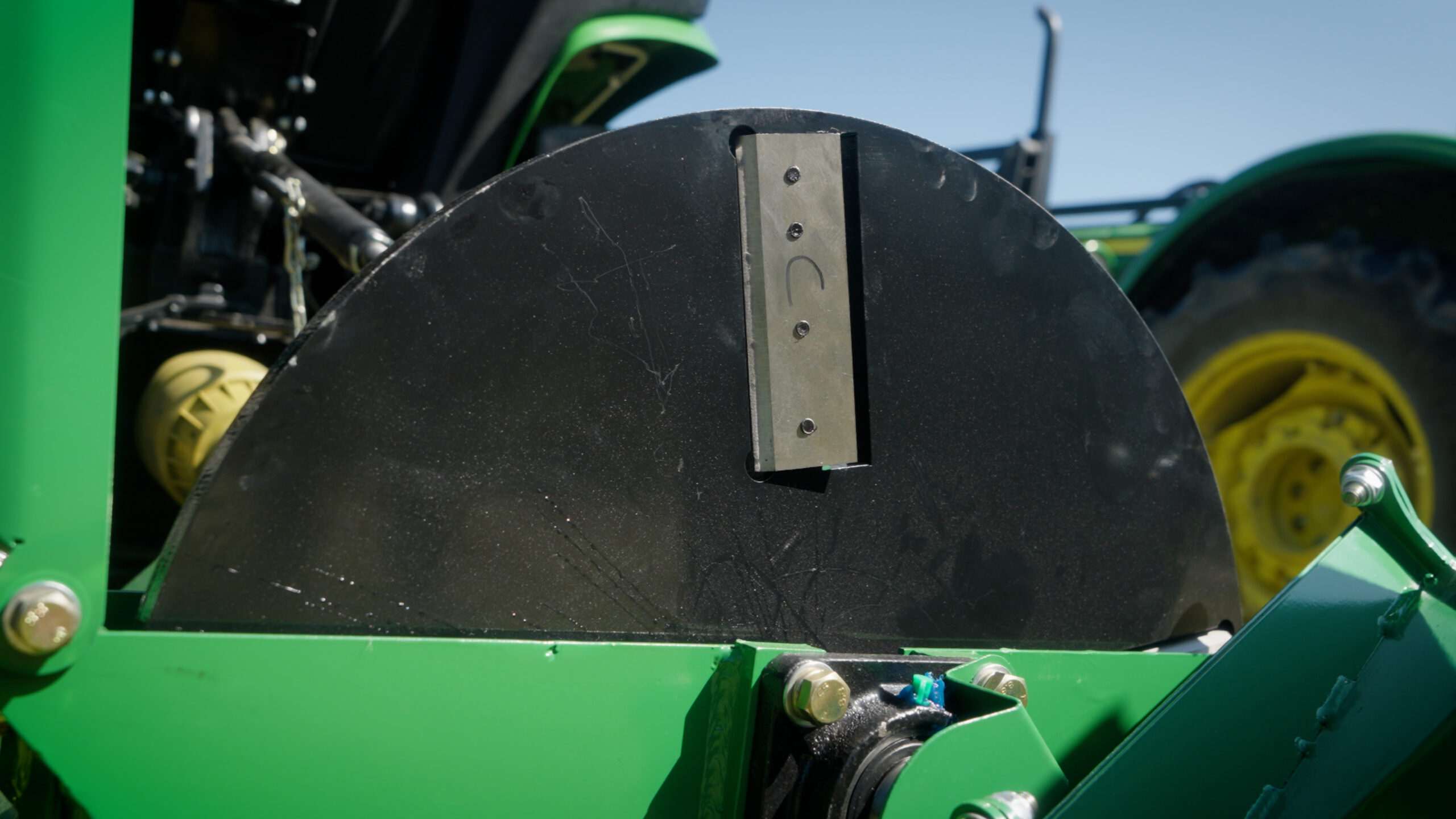

• Hefty fly wheel to maximise momentum driving the cutting blades

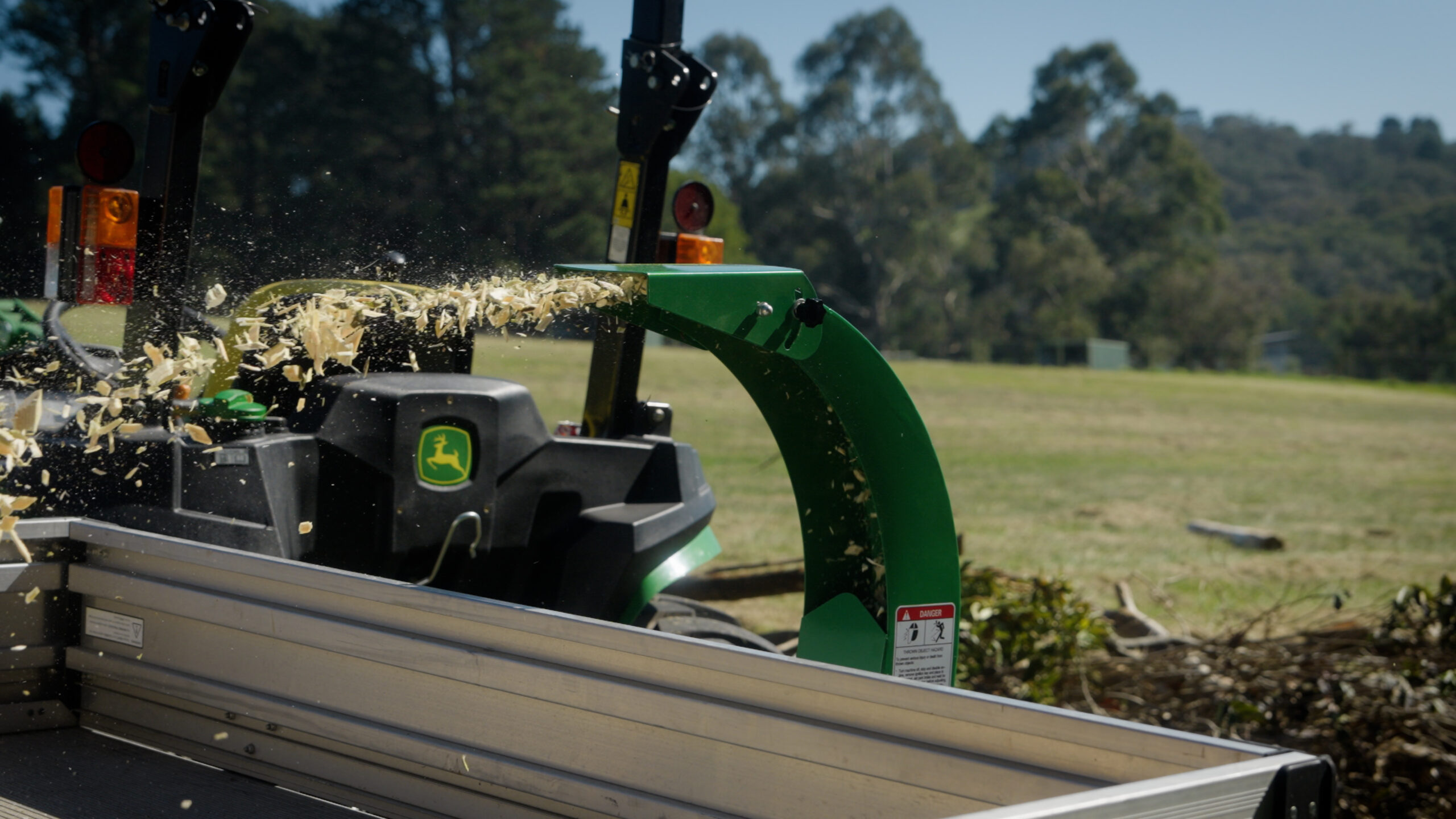

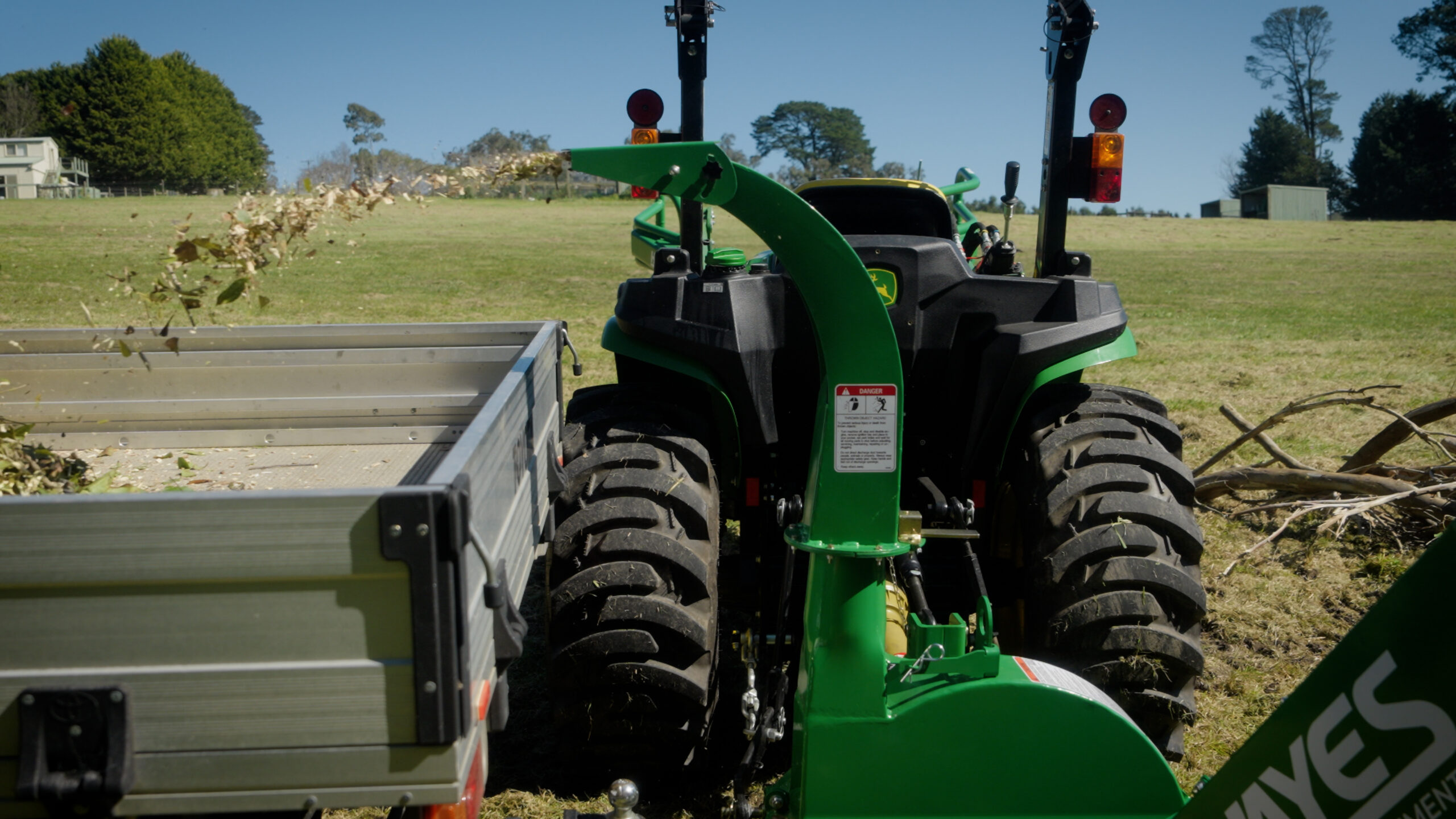

• Rotating discharge chute allowing chips to be directed where required
• Long lasting, hardened tool steel reversible blades that can also be sharpened
• Robust, heavy gauge body construction
• Oversized greasable bearings
• Easy access to blades and anvil/ledger for maintenance
• Backed by Hayes field knowledge, technical support and stock of consumables and spare parts



Specifications



Horsepower	18-50hp
Capacity	4 Inch
Infeed Opening	4″ X 10″
Rotor diameter	25 Inch
Rotor thickness	12mm
Rotor weight	40kg
Qty blades	4
Hitch pins	CAT 1
PTO rpm	540 – 1,000
Weight	210kg





• The PTO shaft is included in the price
• The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
• 12 months manufacturing warranty (Excludes consumables such as blades, etc.)
