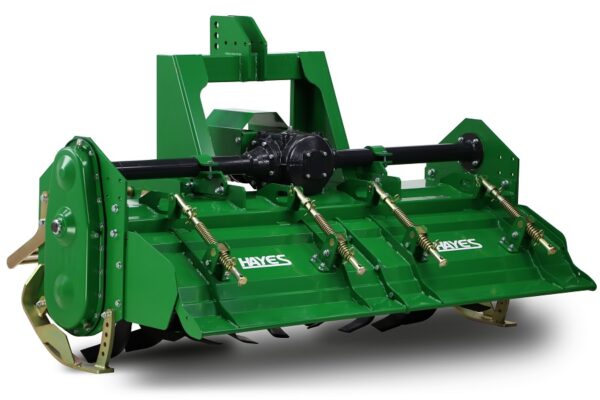

Description
- Reliable extra heavy duty gear box
- Oil bathed, hardened and straight cut drive gears
- Eight inch slip clutch to protect gearbox and gear drive
- Heavy gauge and ridged box construction deck
- Spring and pin adjustable rear trailing door
- Multiple depth adjustment via the skids
- 7mm thick, 80mm wide hardened steel tines
- Six tines per flange
- Backed by Hayes field knowledge, technical support and stock of consumables and spare parts
Specifications
Horsepower | 60-120hp |
Cut width | 1,800mm |
Offset | None |
Tine length | 200mm |
Max depth | 170mm |
Qty tines | 48 |
Flanges | 8 |
Drive | Gear |
Hitch pins | CAT 2 |
PTO rpm | 540 |
Overall width | 2,000mm |
Weight | 525kg |
- The PTO shaft is included in the price
- The gear box and side gear drive require oil, to ensure the unit is filled in the correct location/s, to the correct level with the correct oil we suggest having us fill it at a charge of $60 inc gst
- The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
- 12 months manufacturing warranty (Excludes consumables such as tines, etc.) and 24 months gearbox warranty
