$1,790 inc gst

SKU: 32011 Capacity: 15-35hp Categories: ,

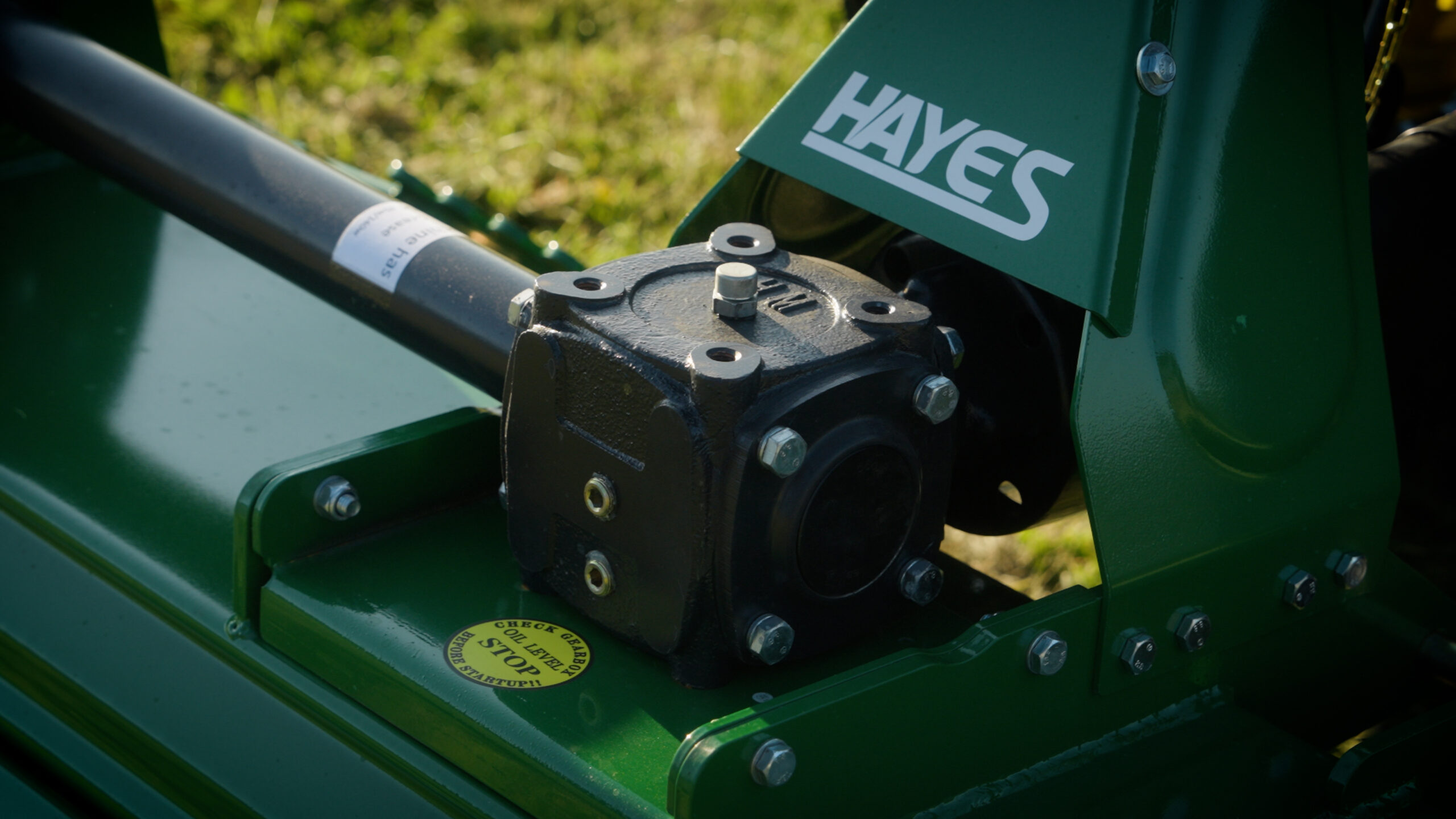

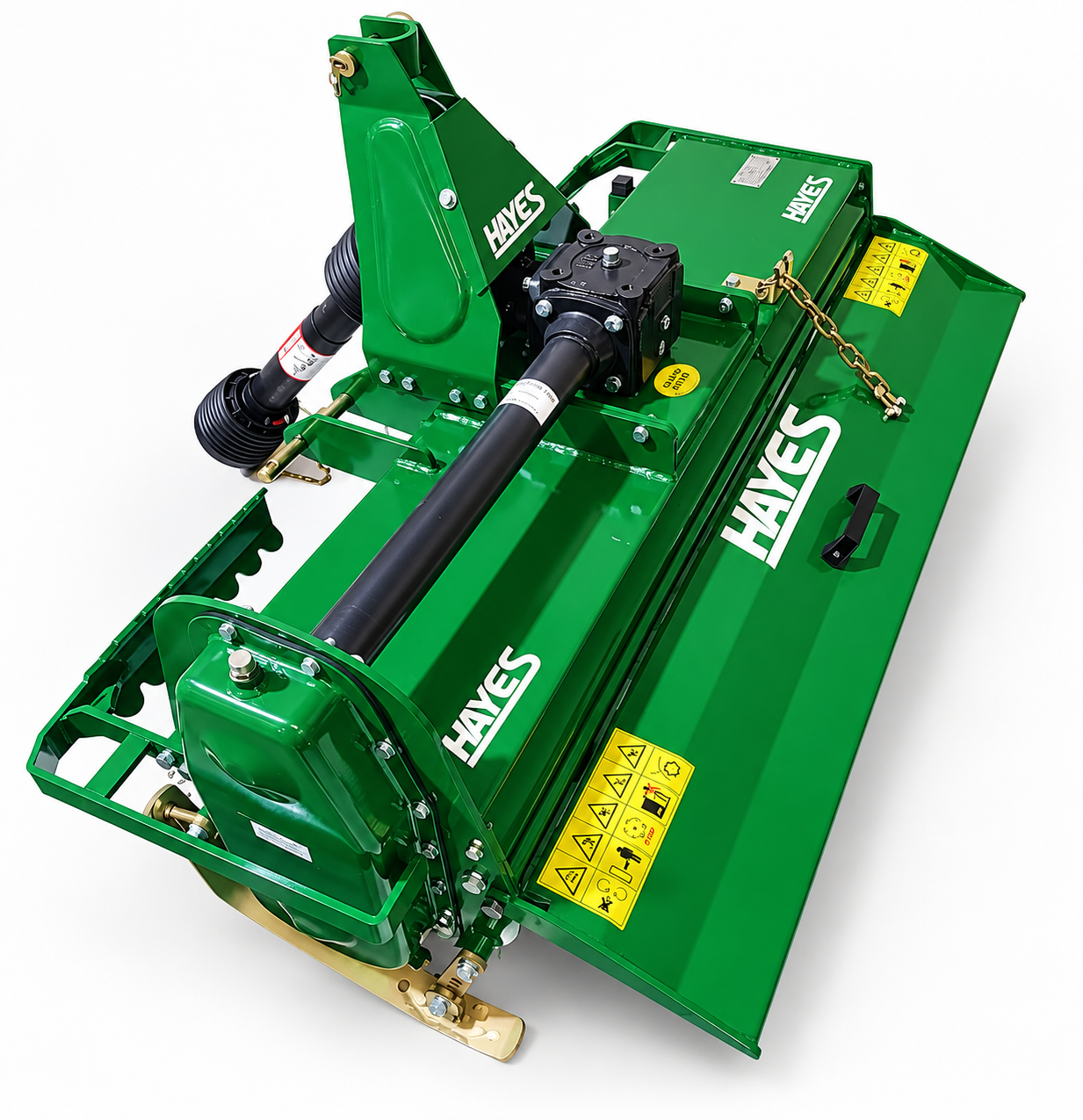

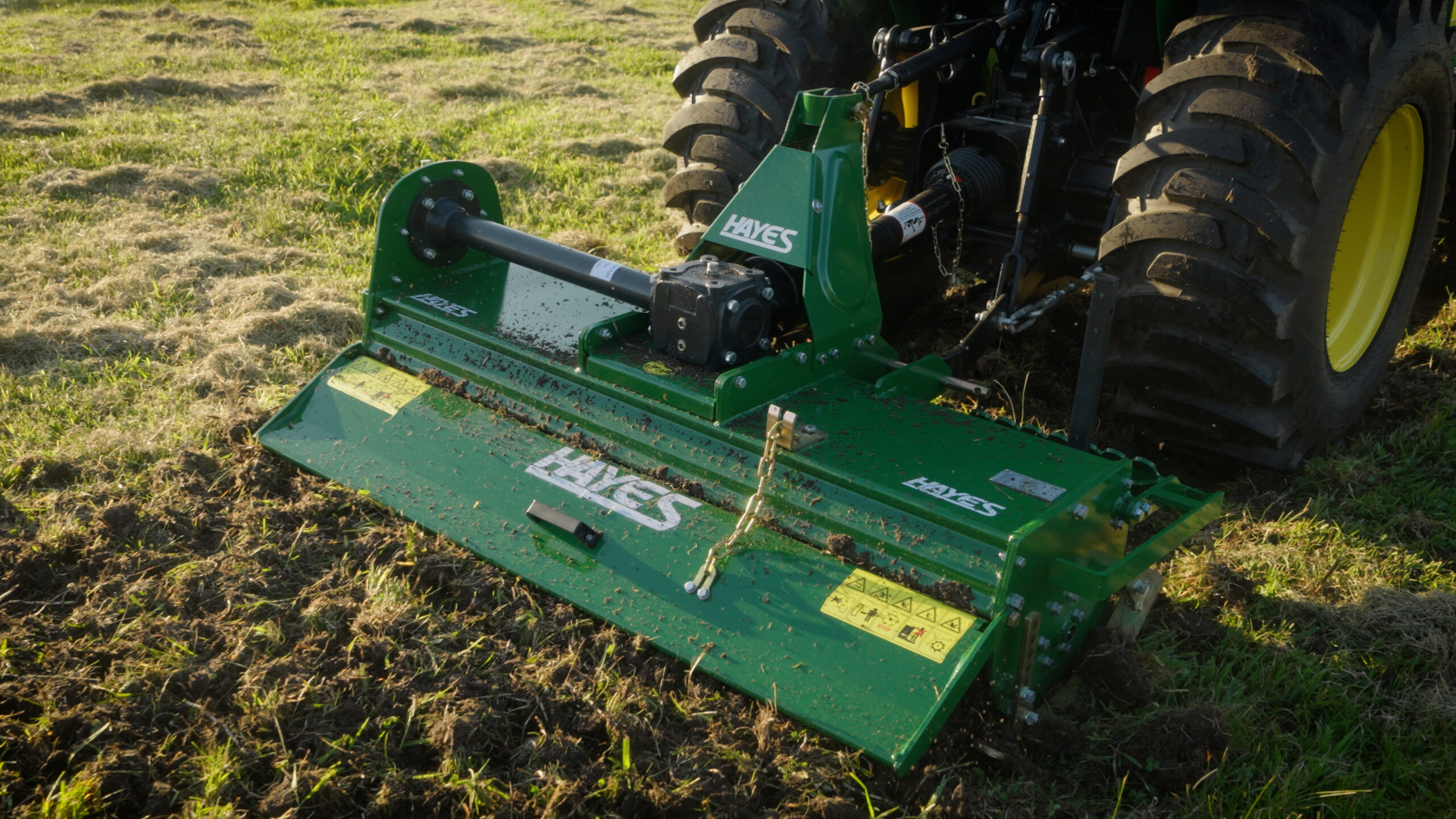

  • 35hp Cast iron cased gearbox

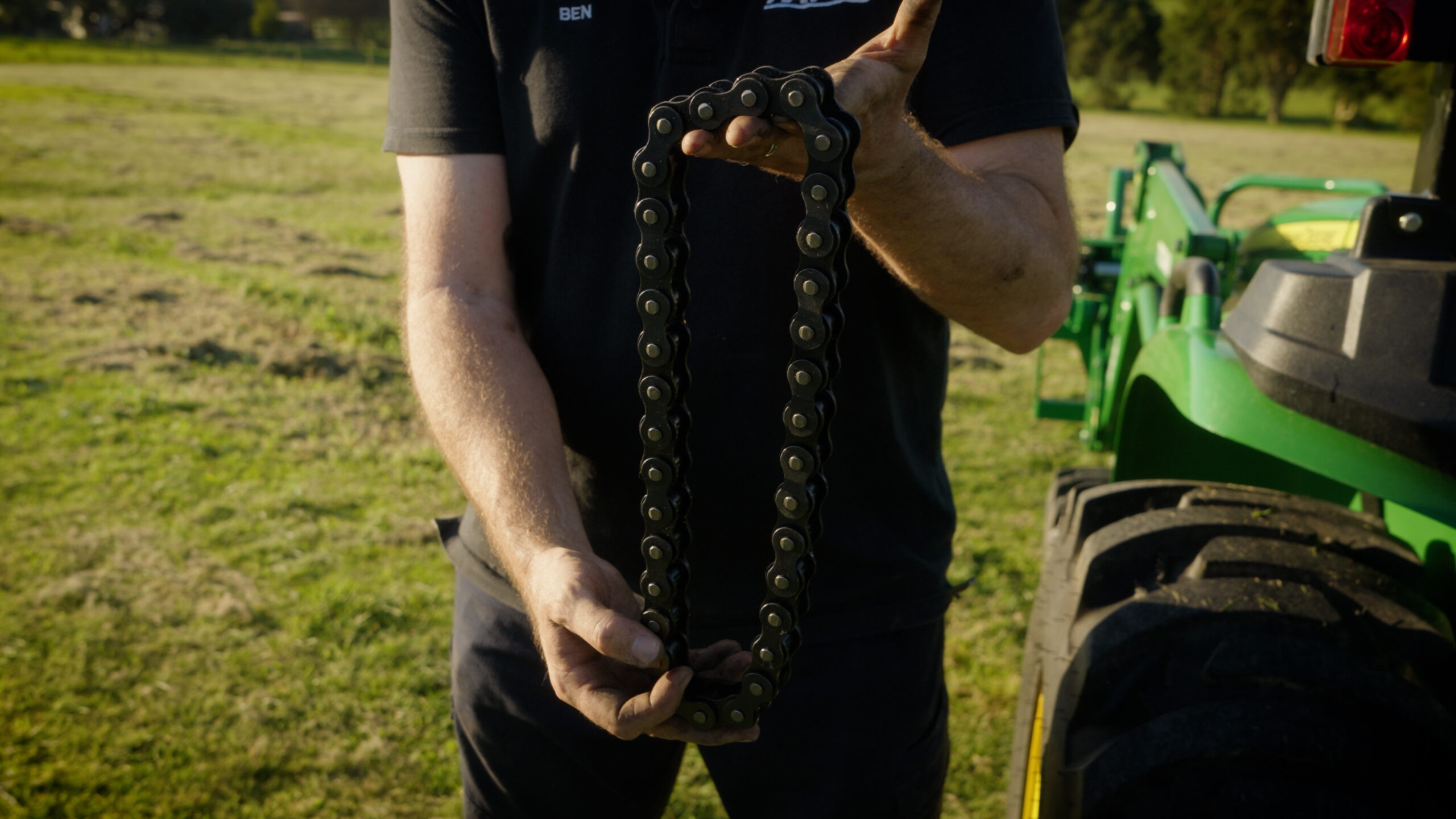

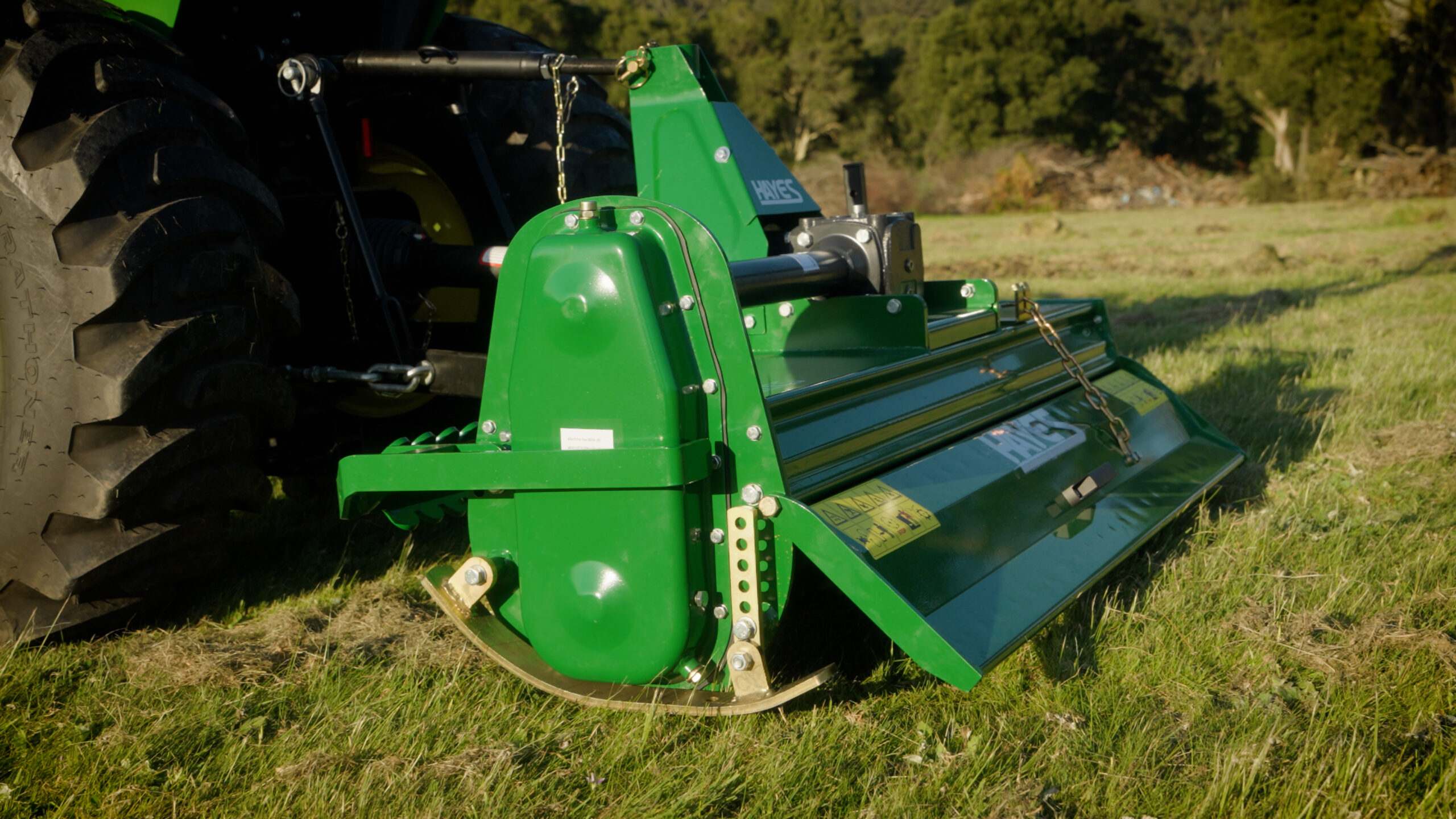

  • Oil bathed chain drive

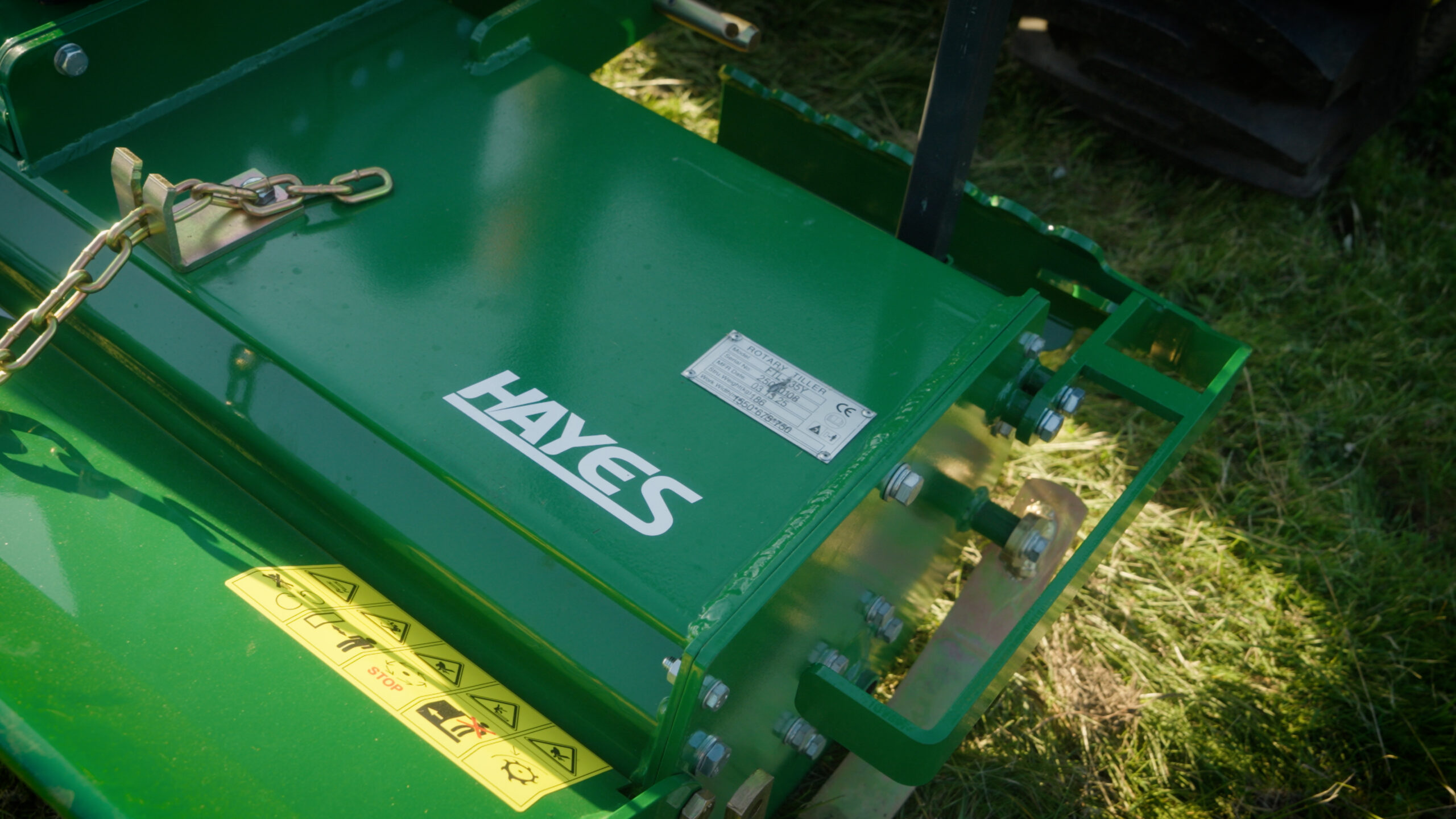

  • Sturdy 4mm deck with 6mm side plates
  • Chain adjustable rear trailing door

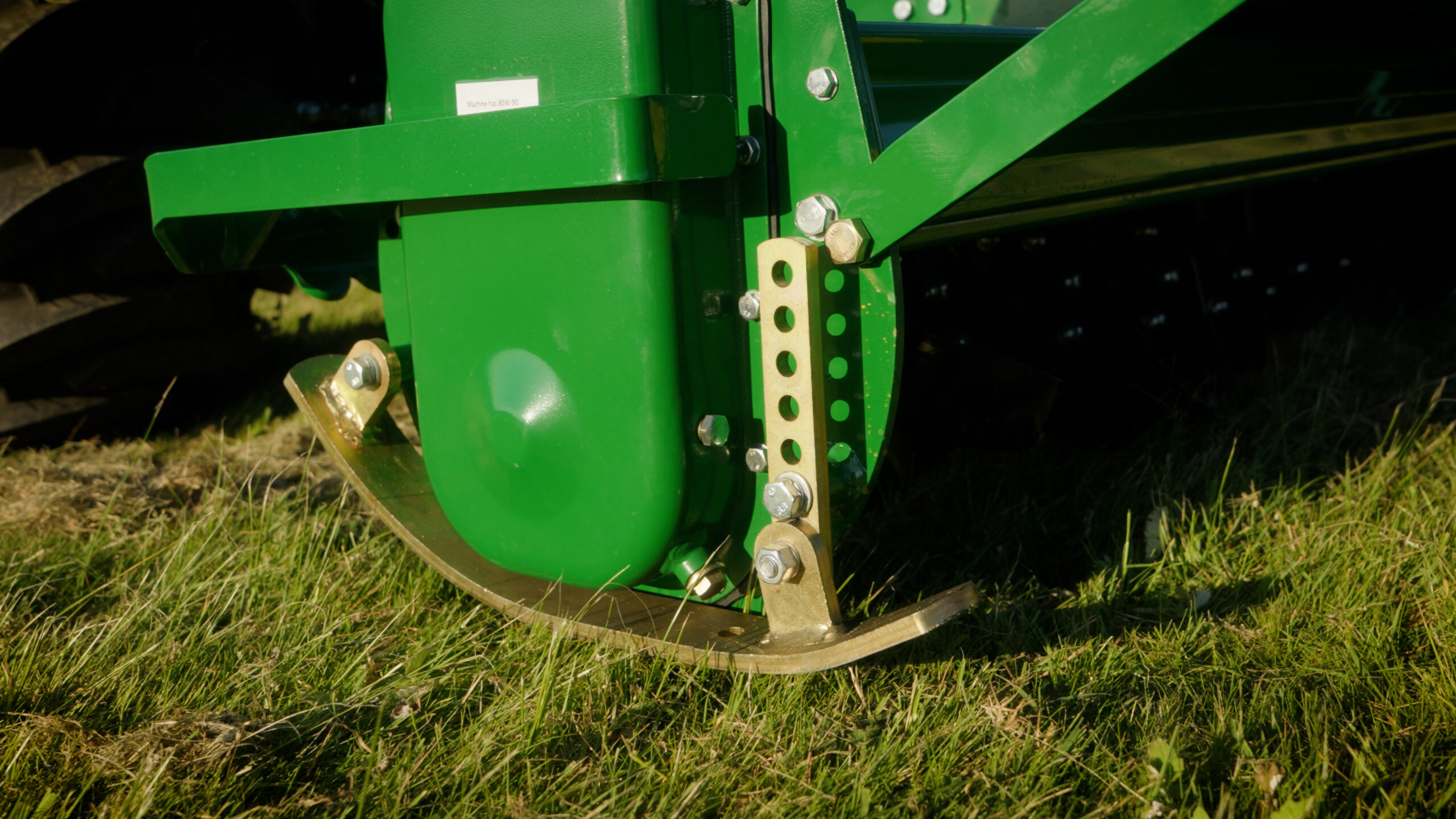

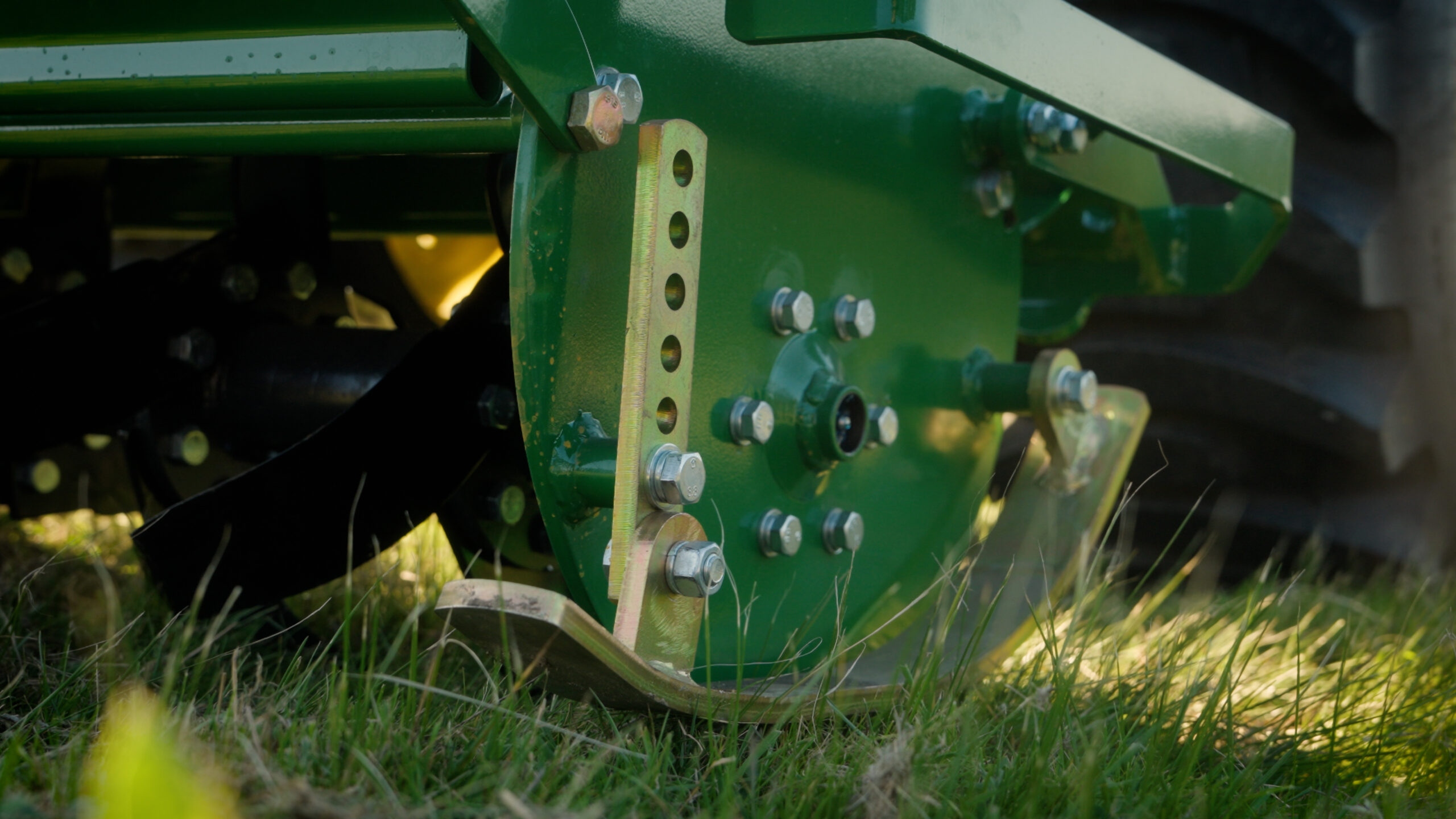

  • Multiple depth adjustment via the skids

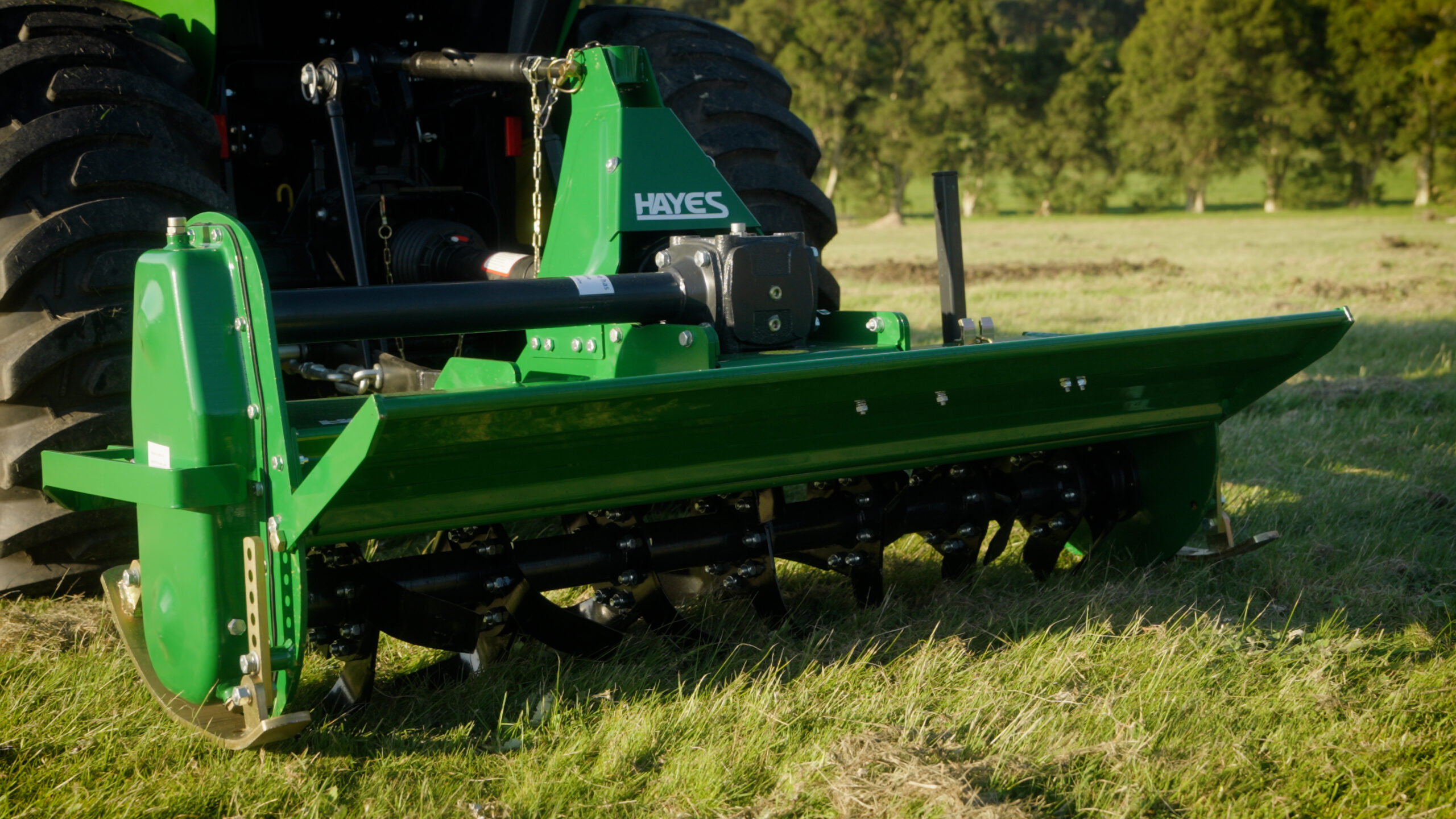

  • 6mm thick, 60mm wide hardened steel tines
  • Four tines per flange
  • Backed by Hayes field knowledge, technical support and stock of consumables and spare parts





Horsepower 15-35hp
Cut width 1,000mm
Offset None
Tine length 130mm
Max depth 100mm
Qty tines 20
Flanges 5
Drive Chain

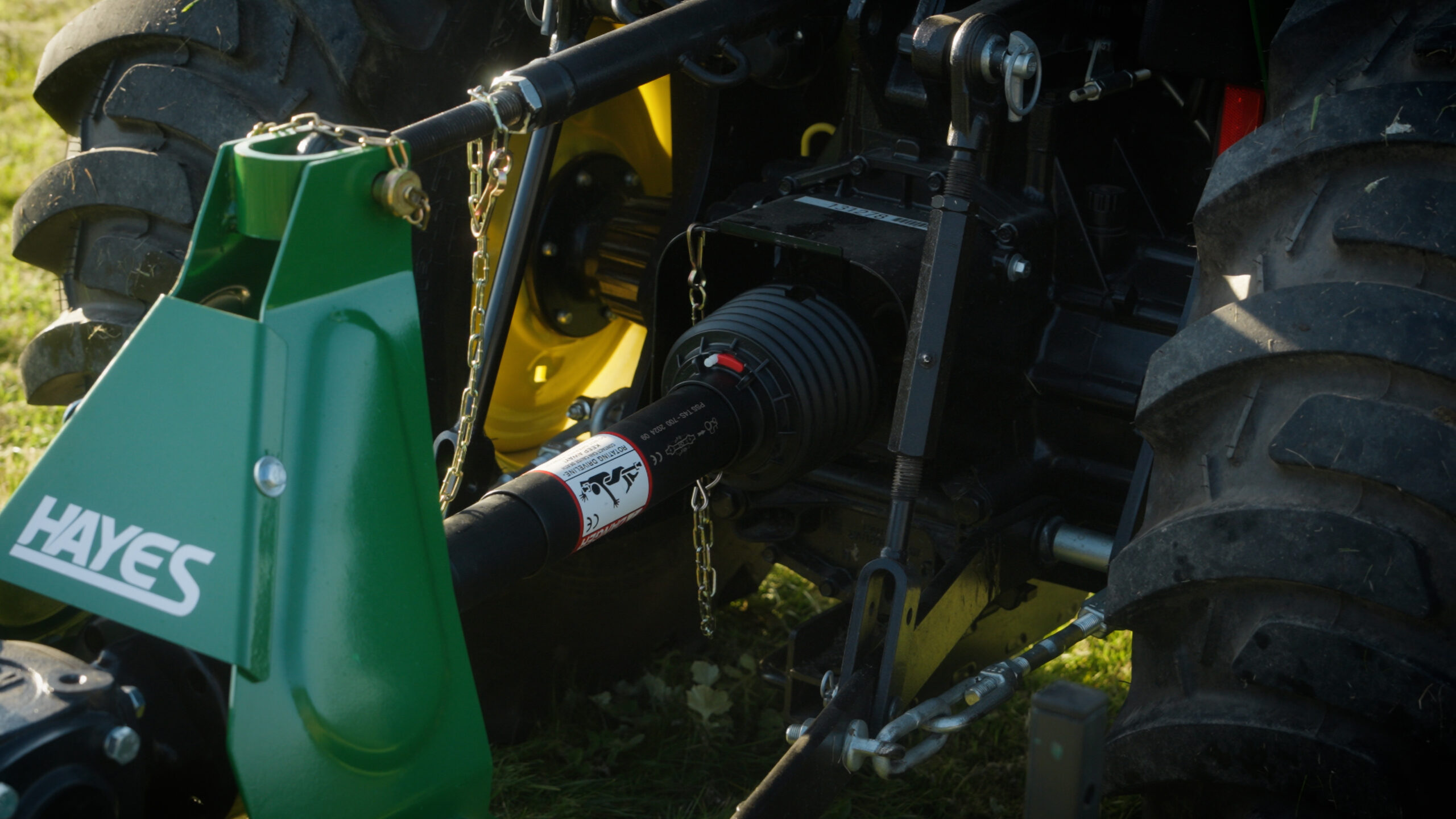

Hitch pins CAT 1
PTO rpm 540
Overall width 1,250mm
Weight 170kg



  • The PTO shaft is included in the price
  • The gear box and side chain drive require oil, to ensure the unit is filled in the correct location/s, to the correct level with the correct oil we suggest having us fill it at a charge of $20 inc gst
  • The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
  • 12 months manufacturing warranty (Excludes consumables such as tines, etc.) and 24 months gearbox warranty
