$2,890 inc gst

SKU: 31015 Capacity: 30-80hp Categories: ,

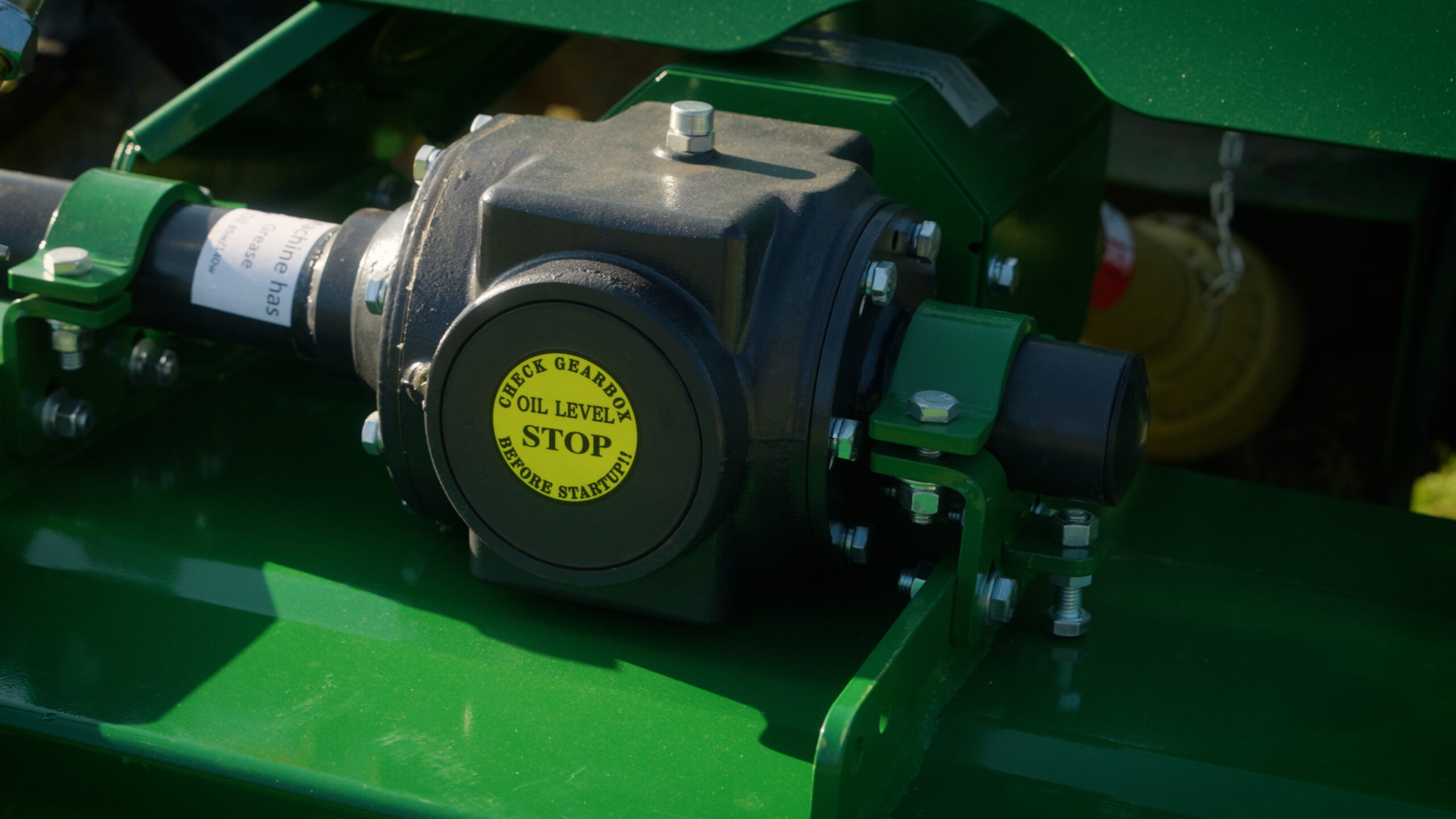

  • Reliable heavy duty gear box

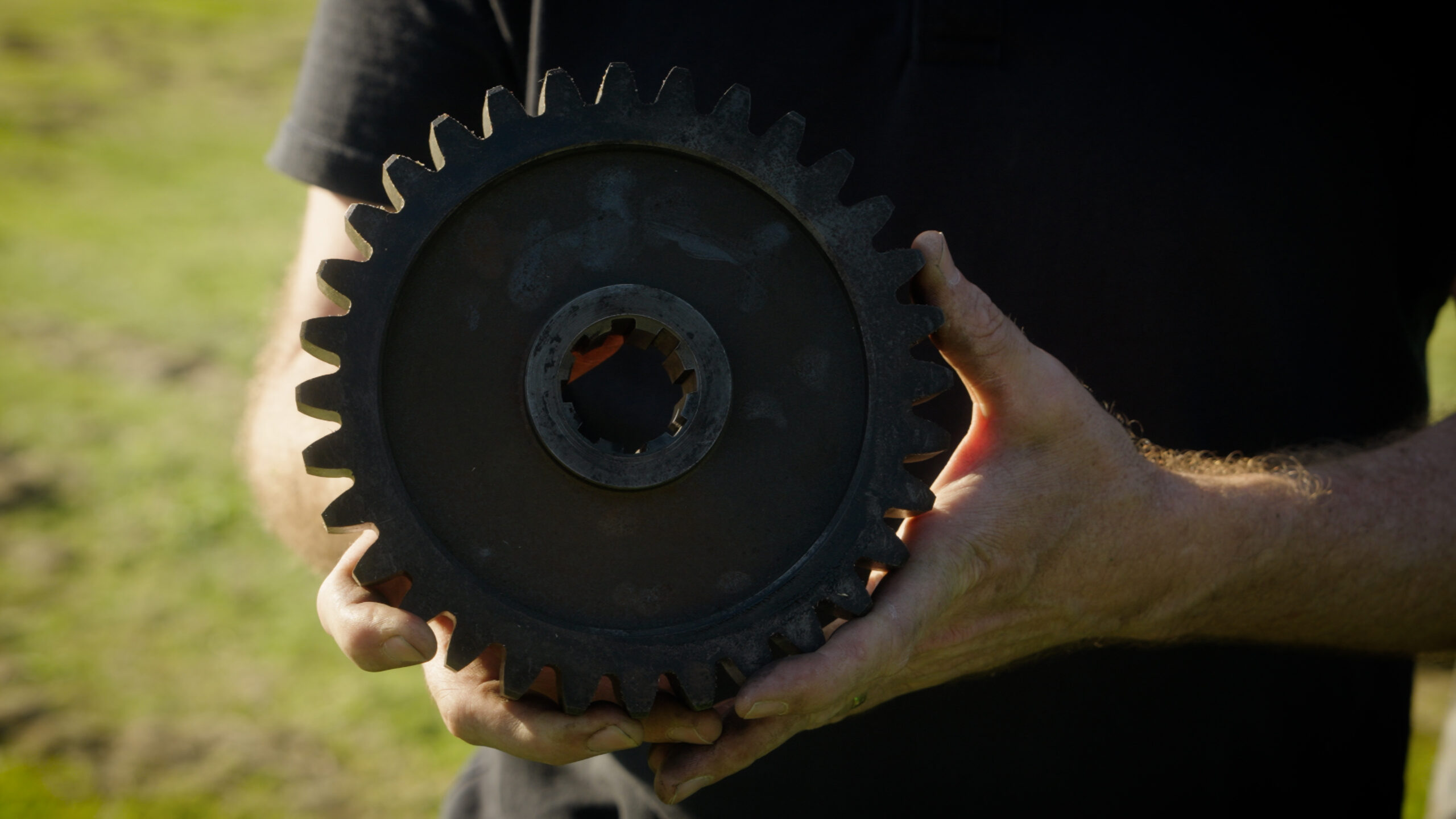

  • Oil bathed, hardened and straight cut drive gears
  • Six inch slip clutch to protect gearbox and gear drive

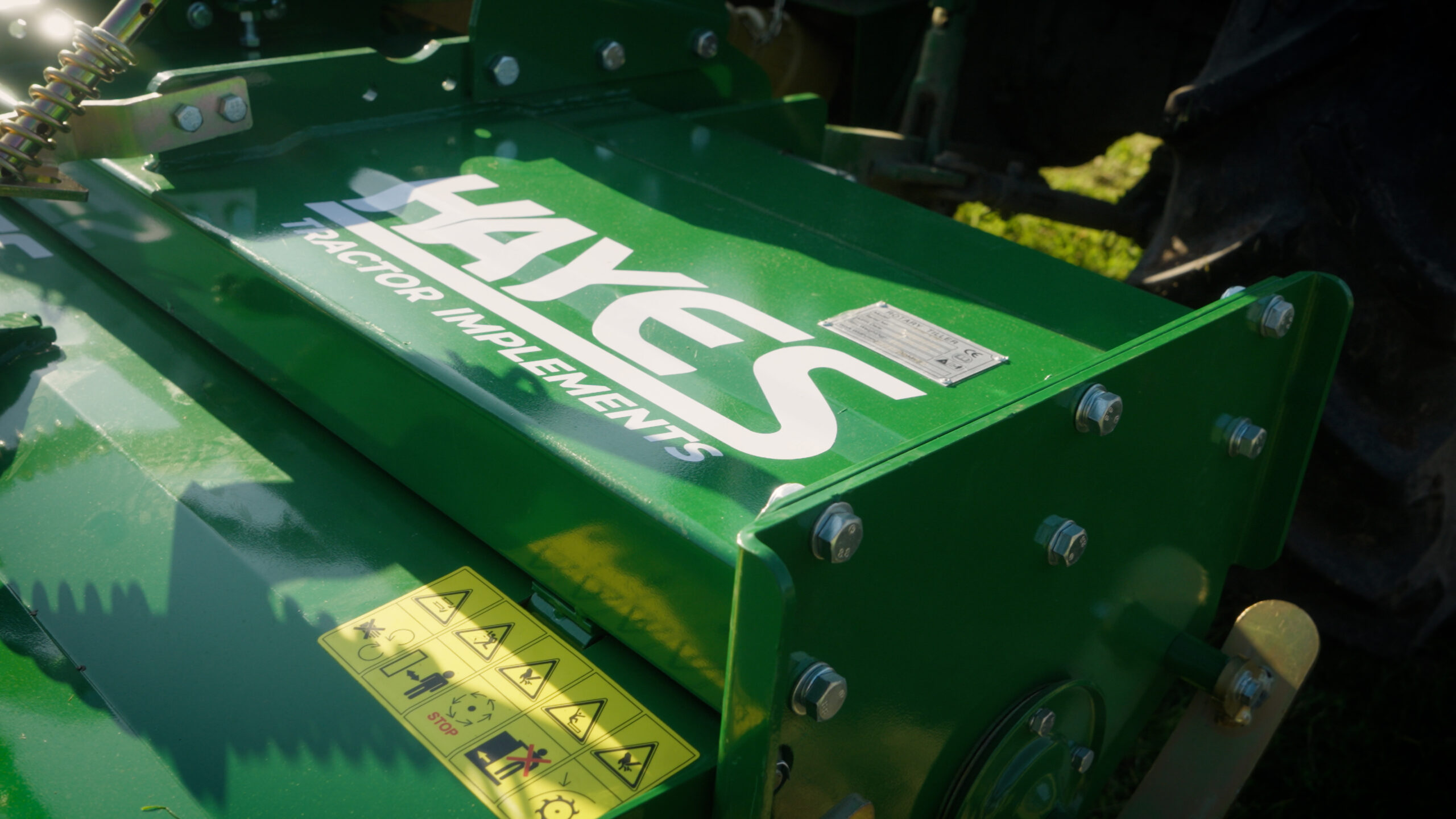

  • Heavy gauge and ridged box construction deck

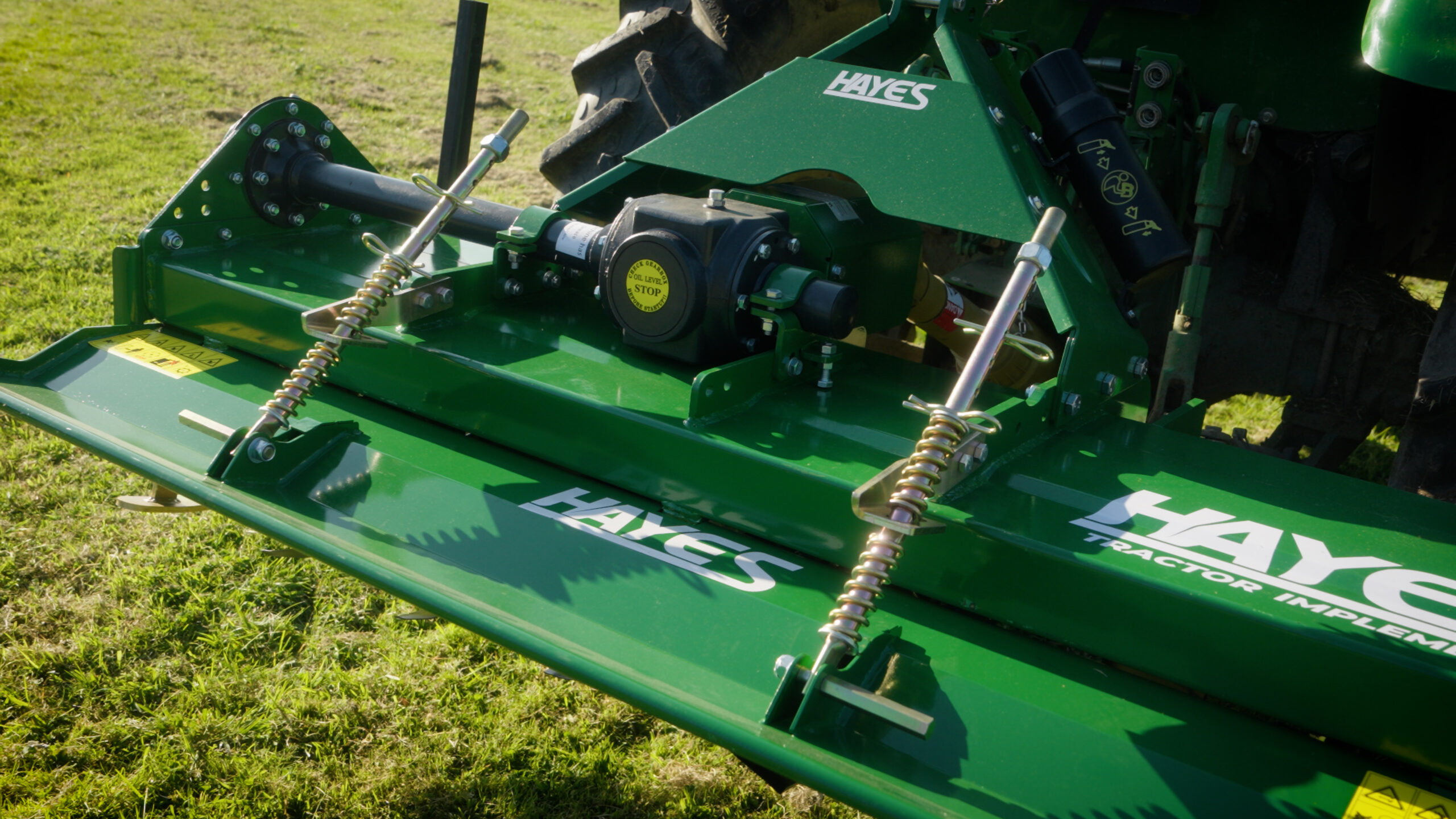

  • Chain adjustable rear trailing door
  • Multiple depth adjustment via the skids

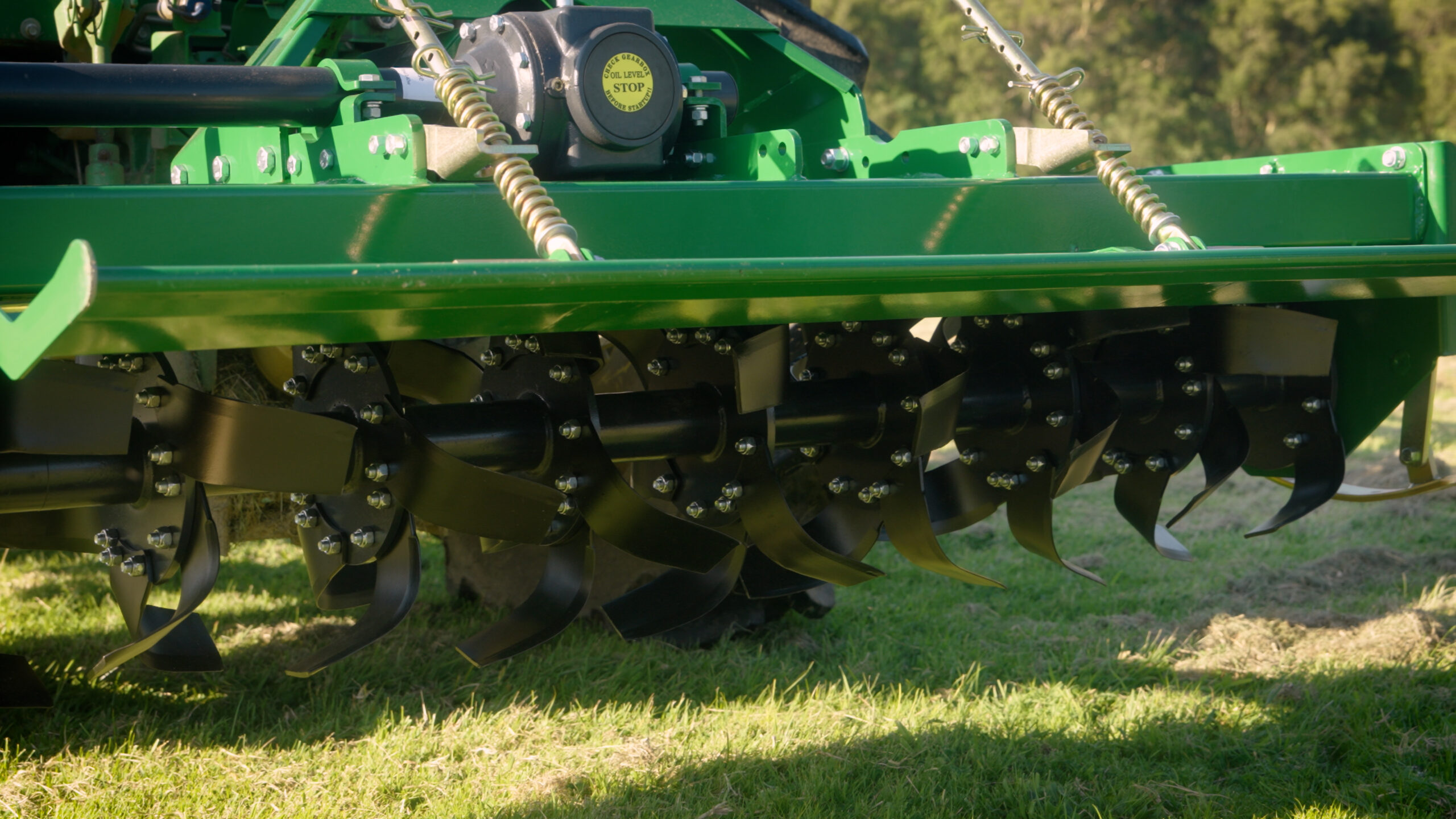

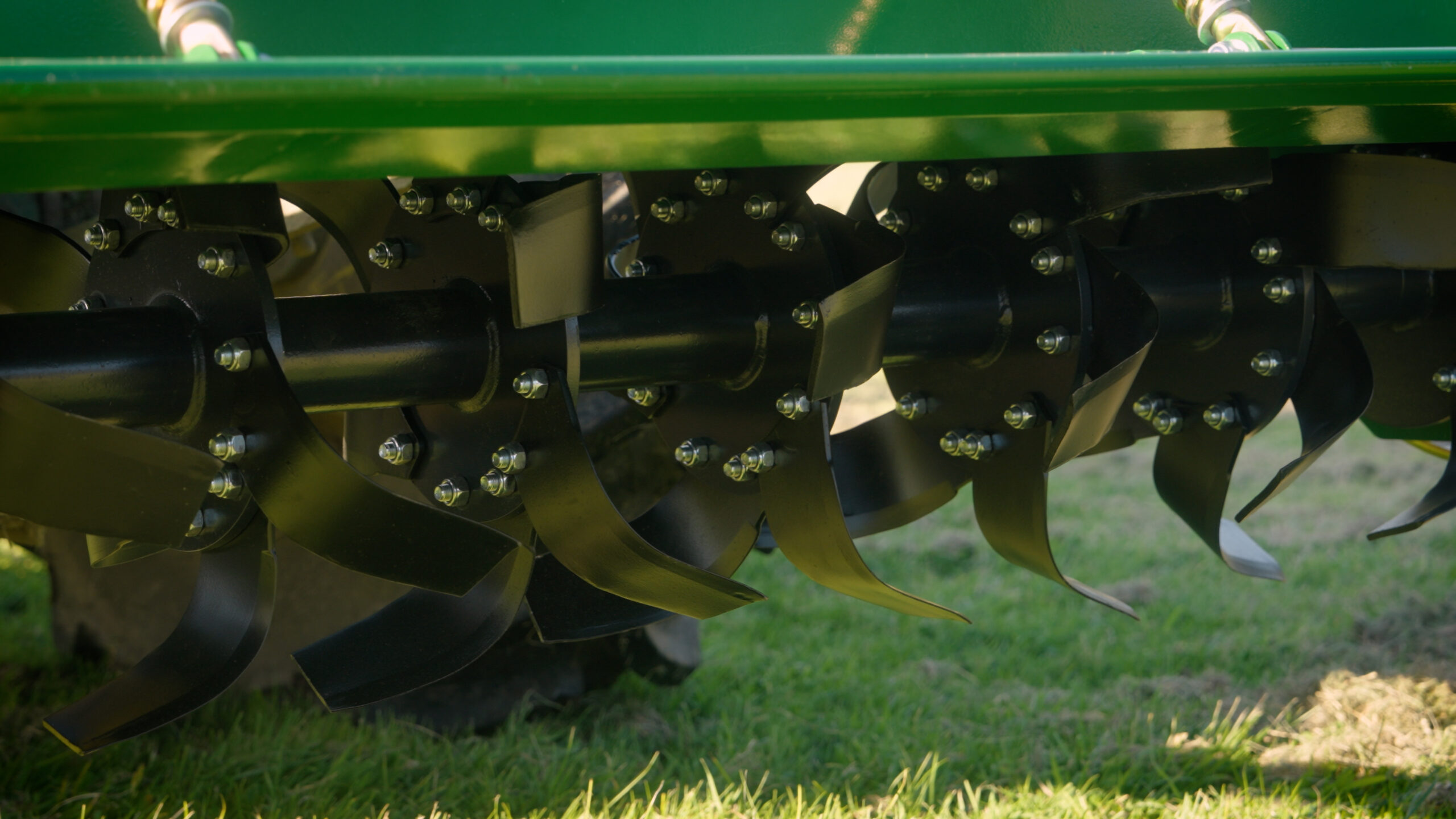

  • 6mm thick, 80mm wide hardened steel tines
  • Six tines per flange (Three on outer flanges)
  • Backed by Hayes field knowledge, technical support and stock of consumables and spare parts

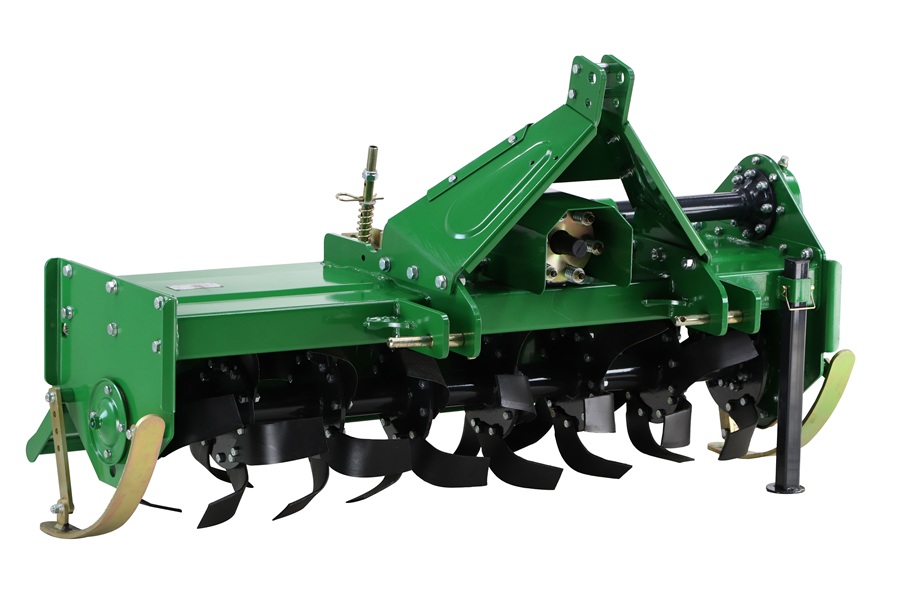

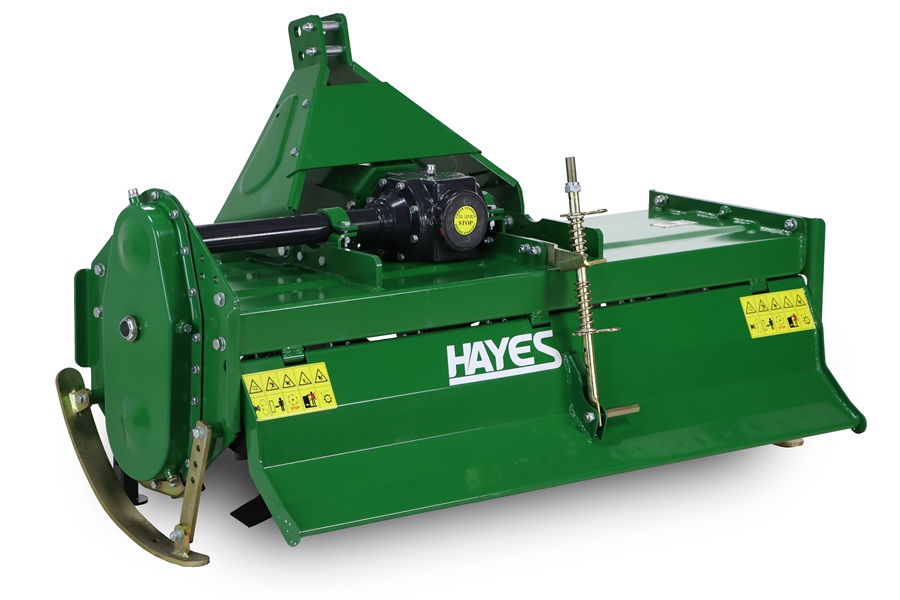

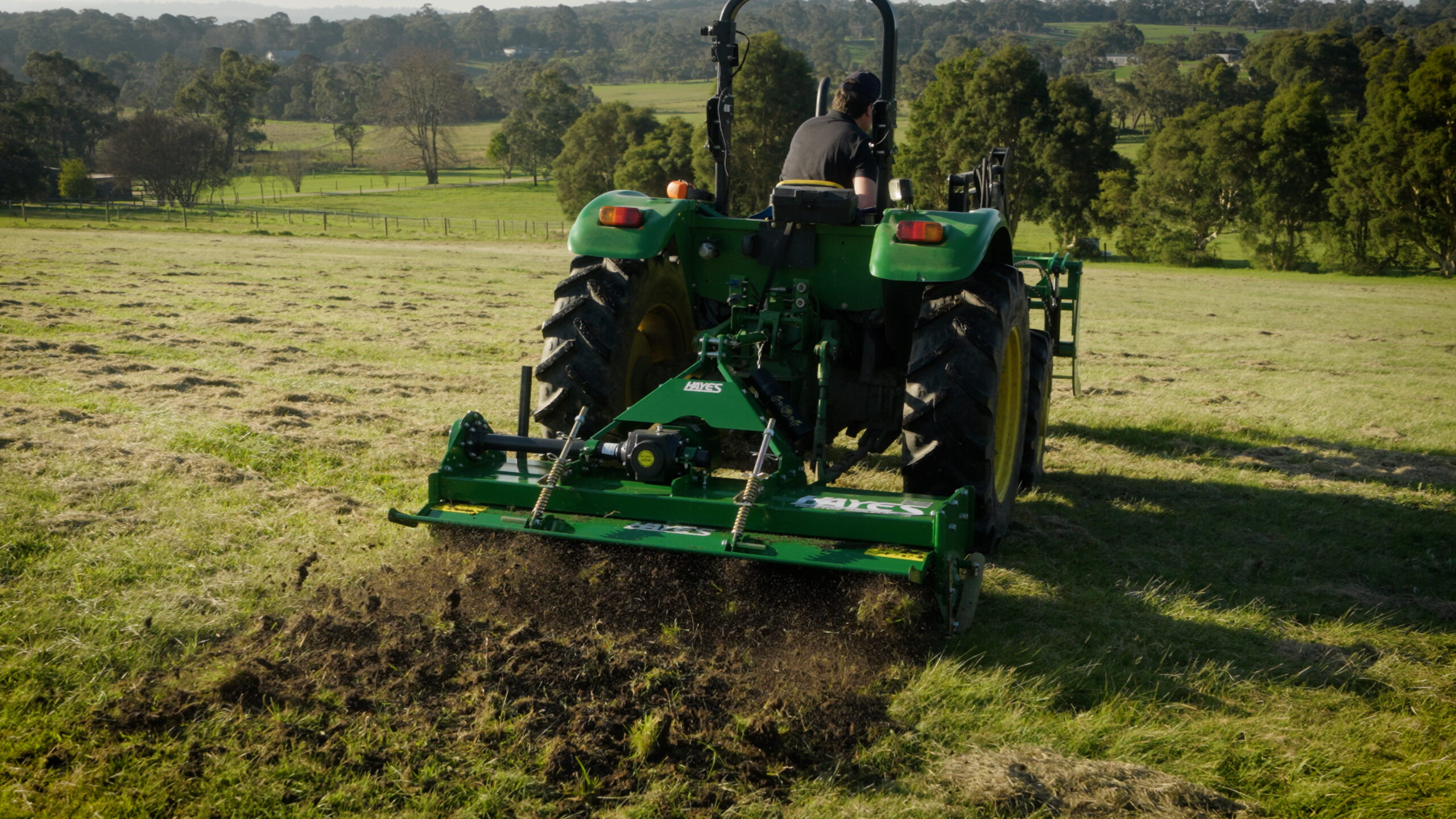

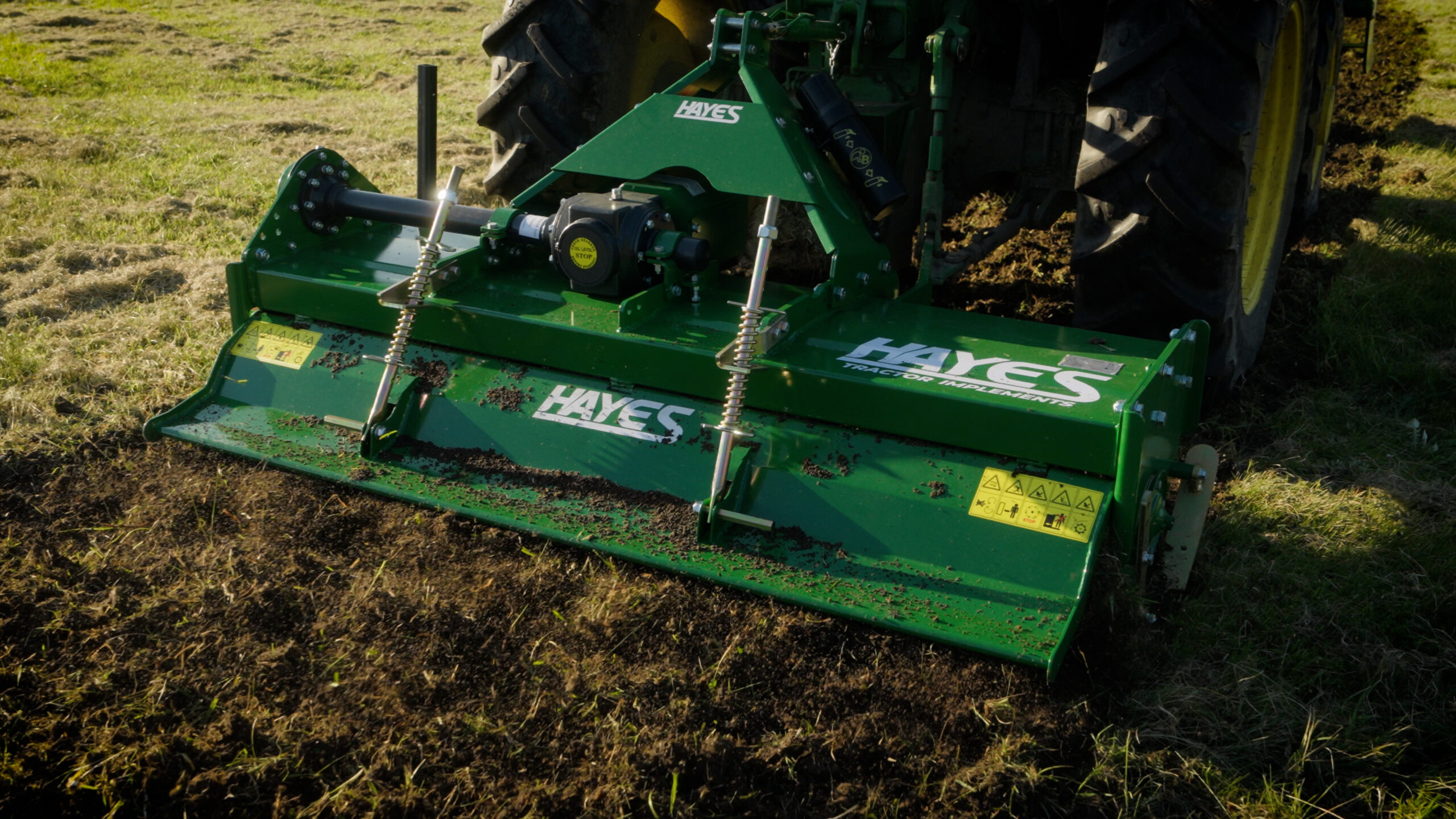

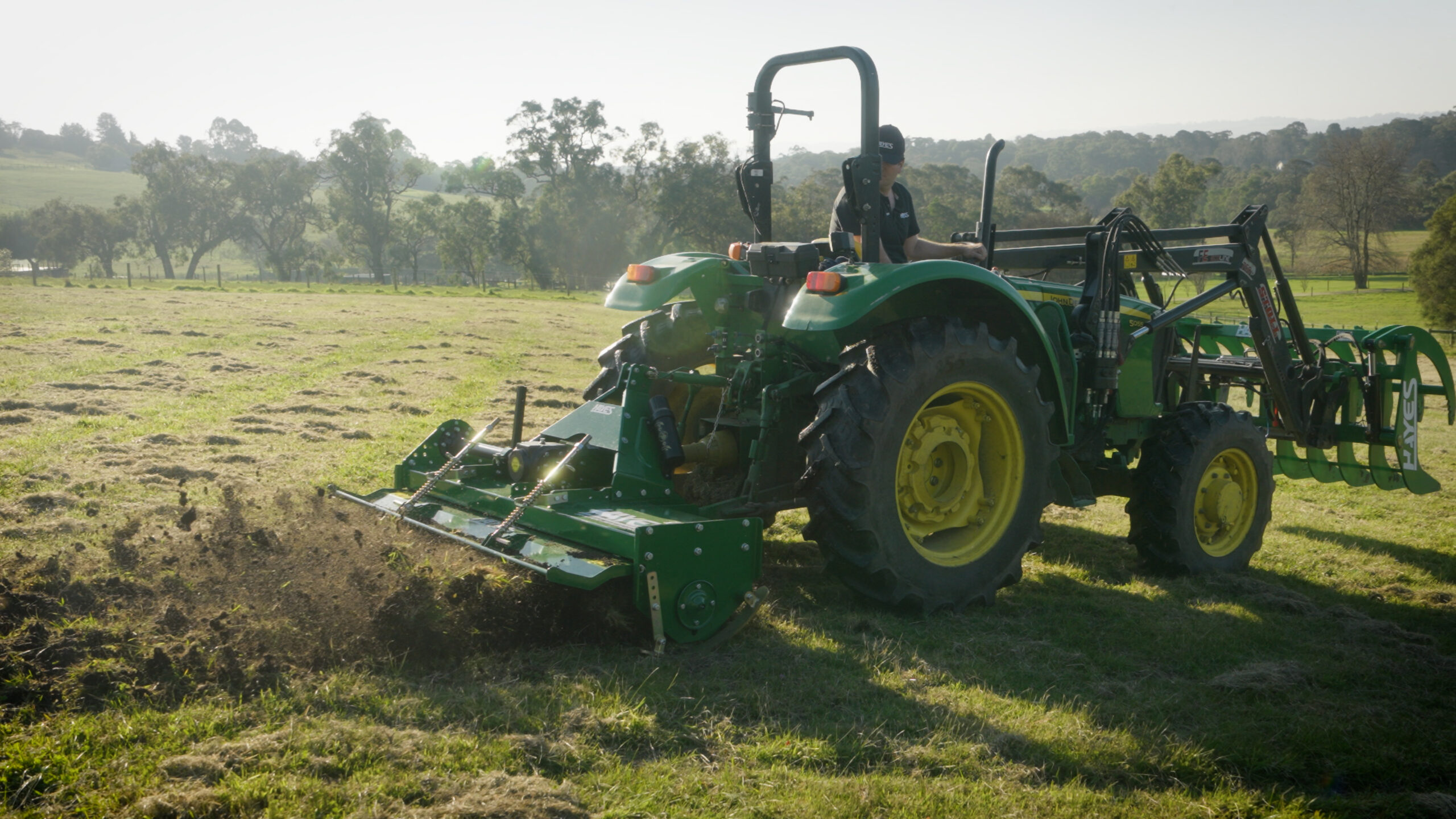

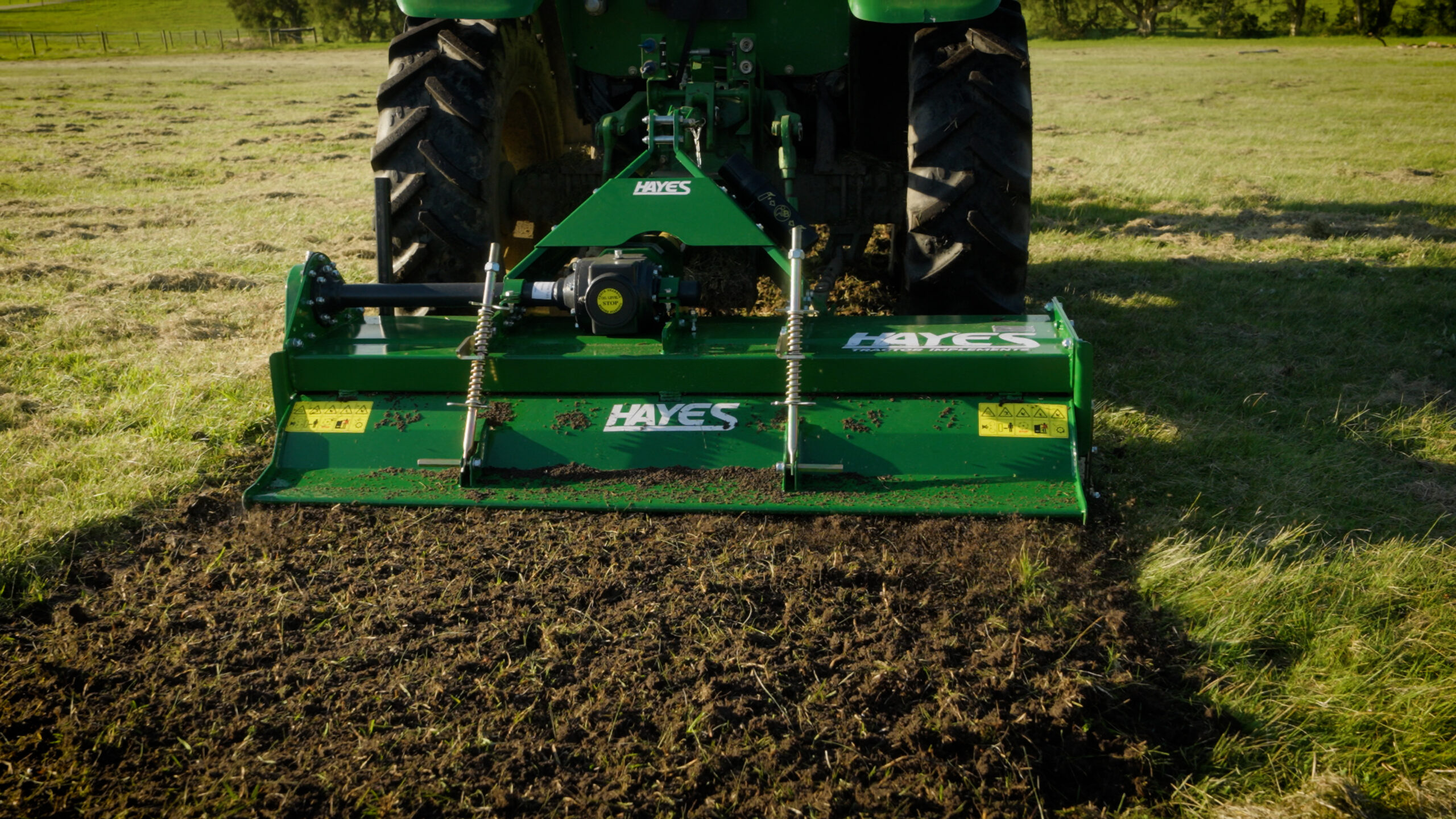

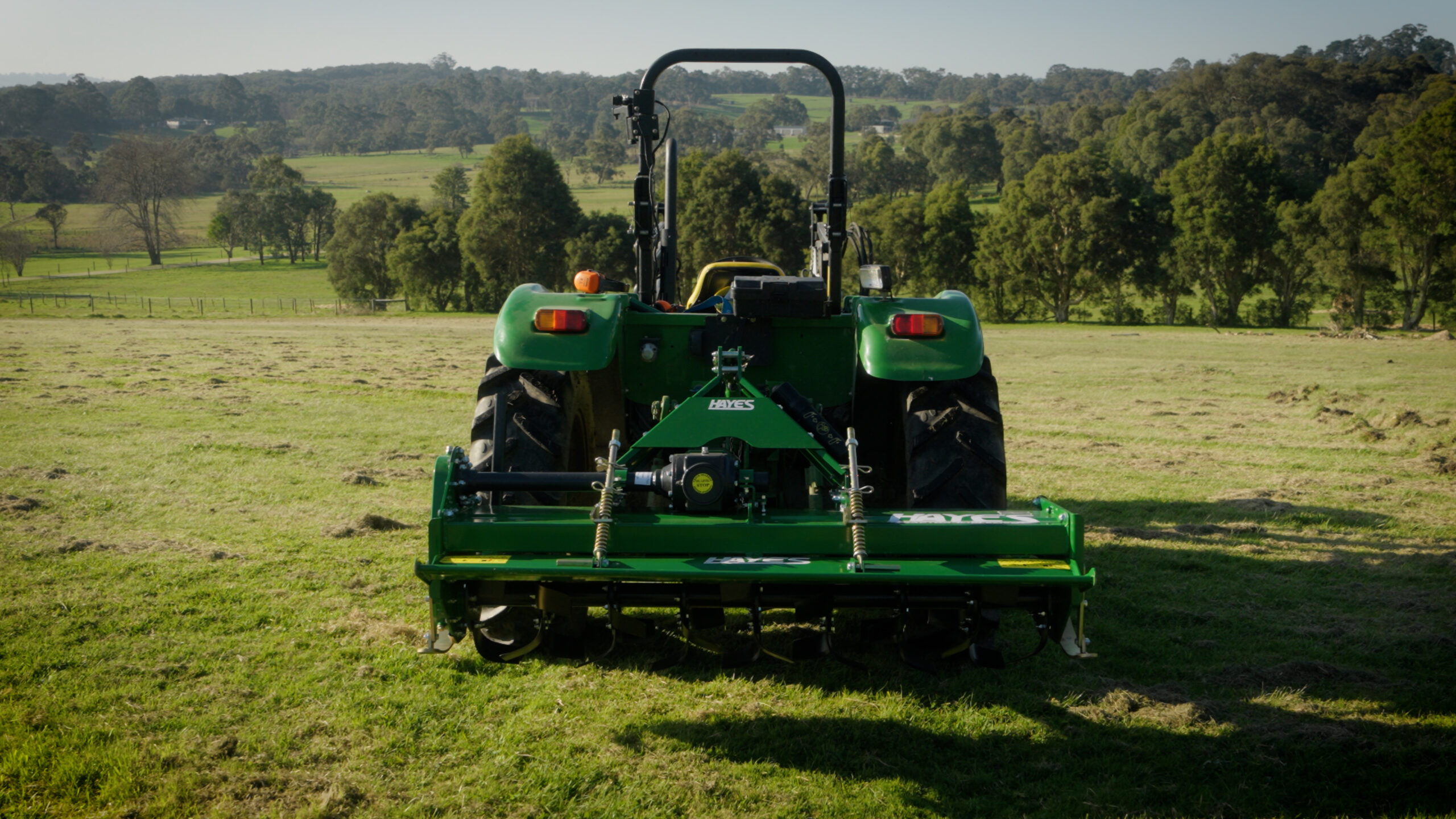

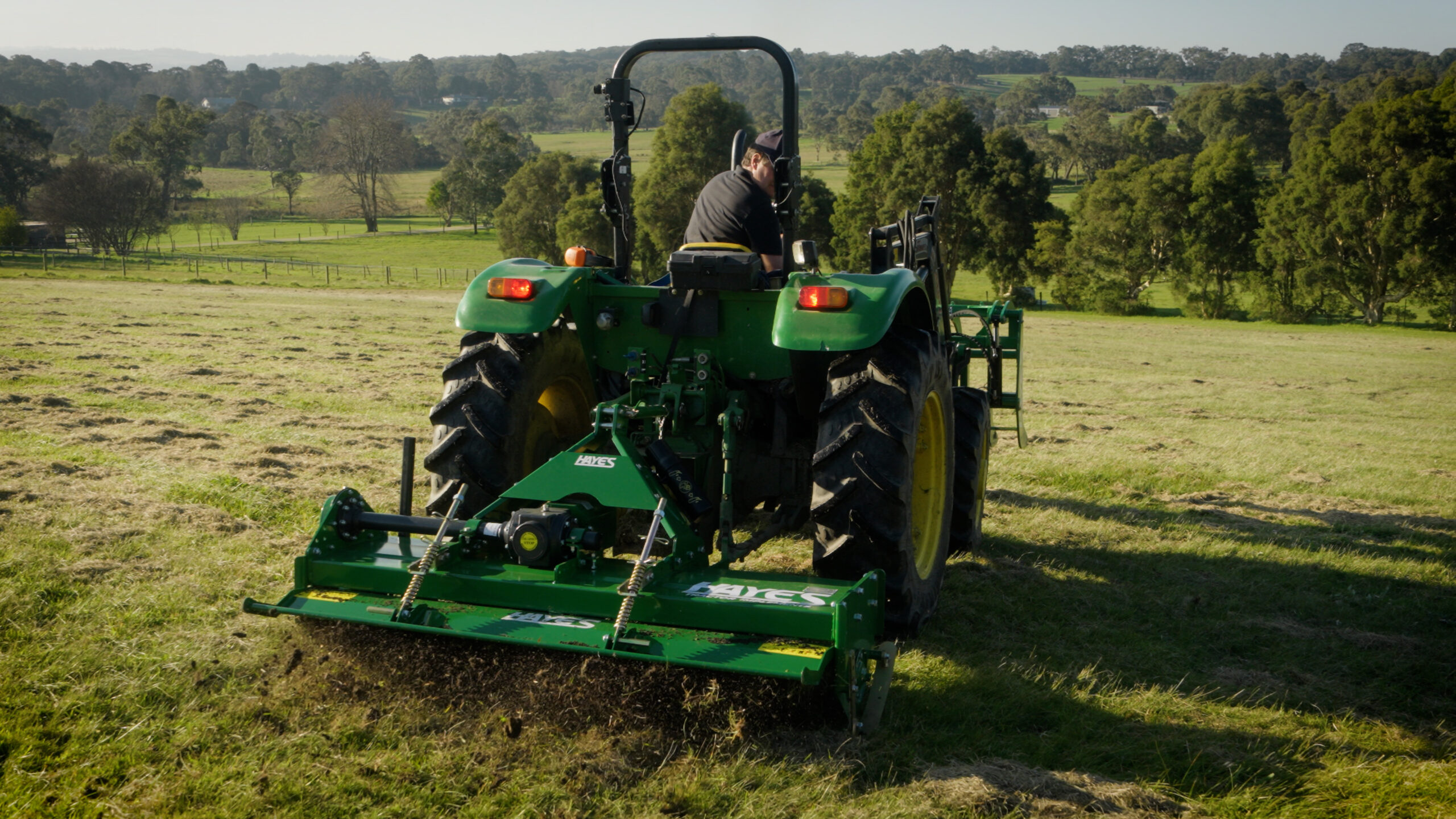

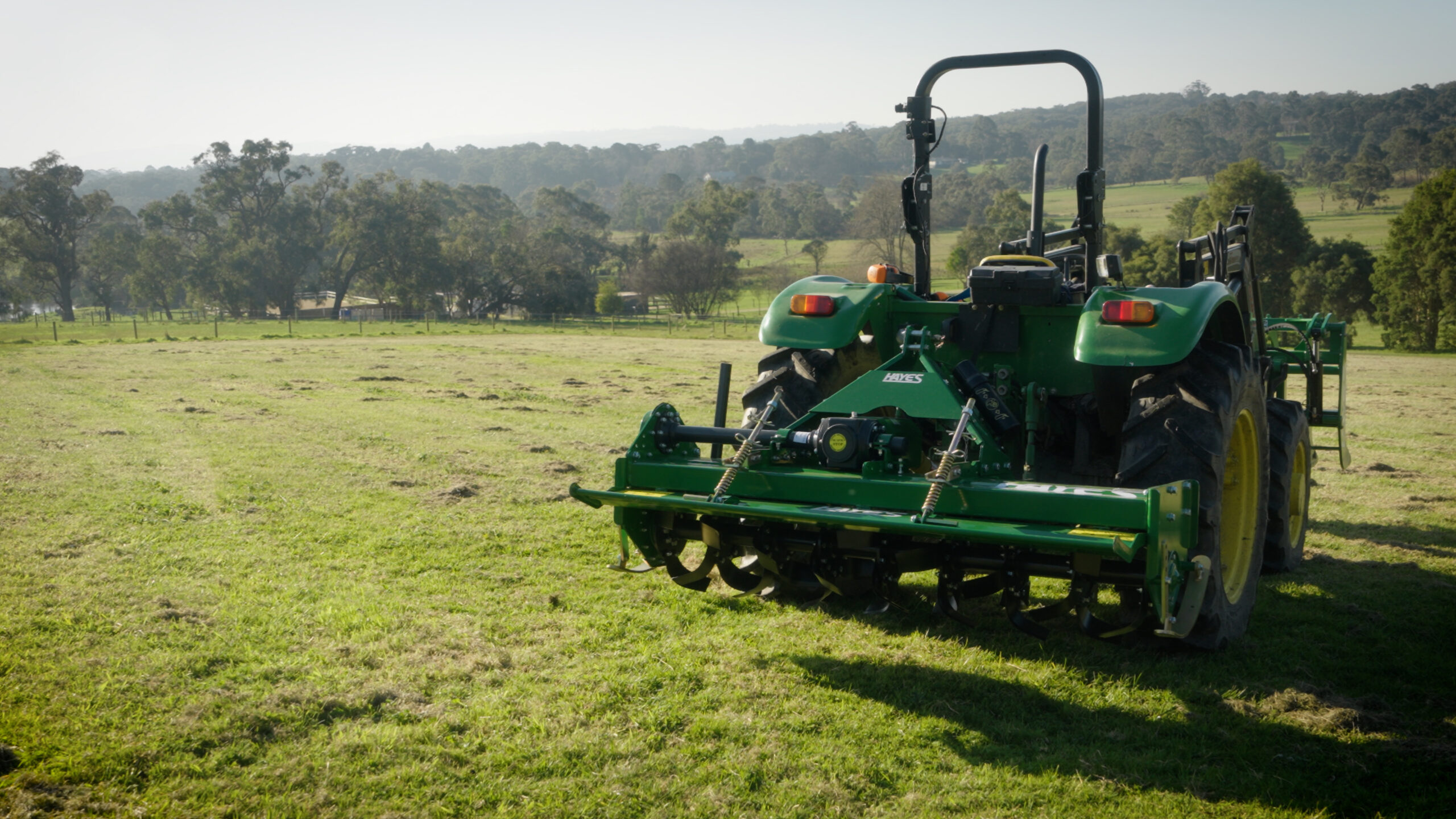

* Please note – photo shown is of the 5 foot




Horsepower 30-80hp
Cut width 1,250mm
Offset 50mm
Tine length 180mm
Max depth 150mm
Qty tines 36
Flanges 7

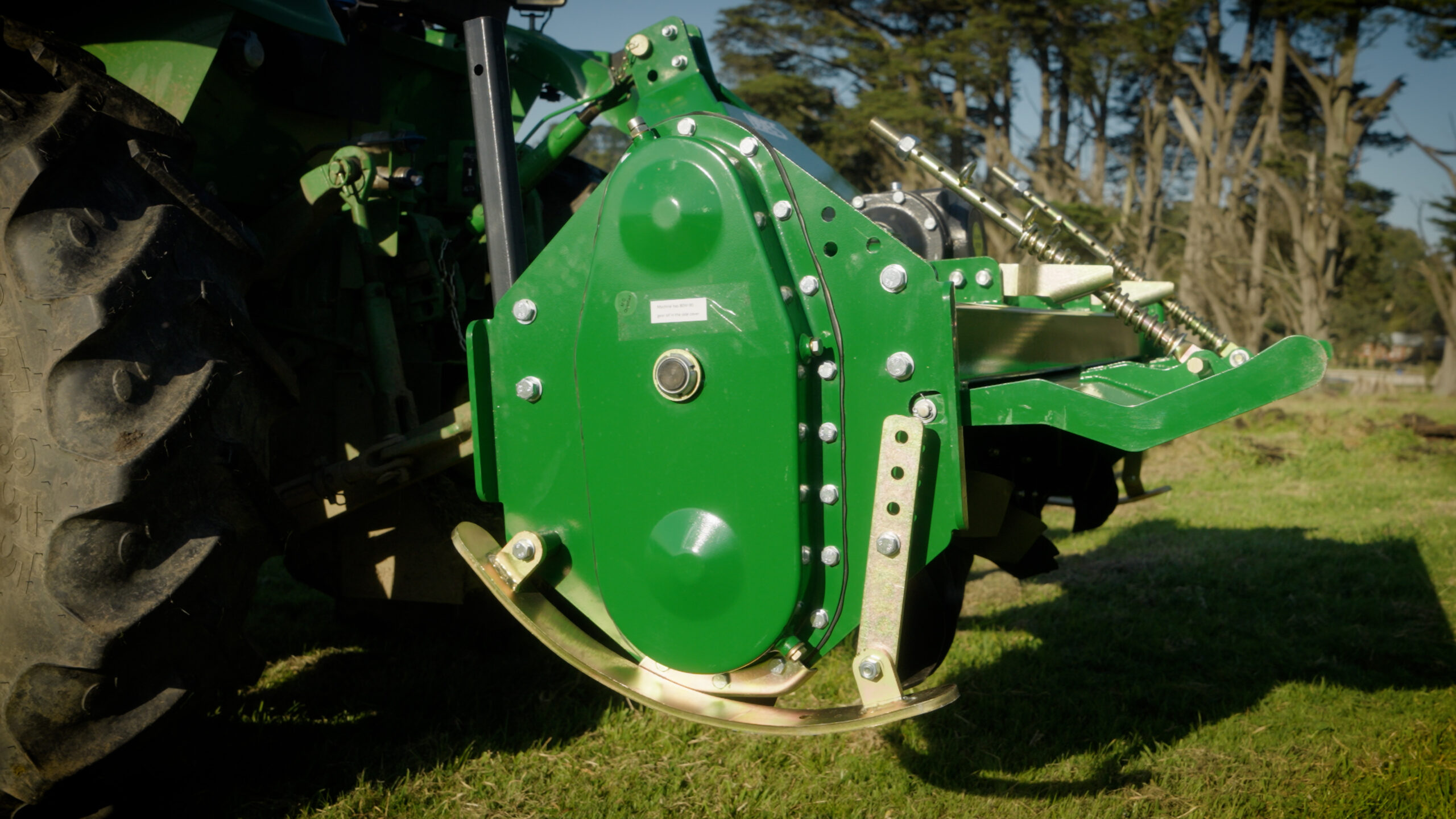

Drive Gear
Bearing SKF
Hitch pins CAT 1
PTO rpm 540
Overall width 1,470mm
Weight 300kg



  • The PTO shaft is included in the price
  • The gear box and side gear drive require oil, to ensure the unit is filled in the correct location/s, to the correct level with the correct oil we suggest having us fill it at a charge of $40 inc gst
  • The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
  • 12 months manufacturing warranty (Excludes consumables such as tines, etc.) and 24 months gearbox warranty
