TRACTOR SLASHER 4FT MEDIUM DUTY

Description

Hayes 4FT medium-duty tractor slasher for 18–40 hp tractors, with 1150 mm cut width, 40 hp gearbox, slip clutch and Category 1 linkage. SKU 25015.



• Ideal for smaller tractors where the implement weight is a concern
• Robust 4mm deck with an additional 6mm of plating under the gear box
• 40hp gear box tested over many years of service
• Seven inch slip clutch providing the gear box added protection
• Step down blades to reduce the risk of the cutter bar hitting objects
• Reinforcement on the underside of the deck (rather than top) to reduce water pooling and prolonging the deck life
• Top link chains to rear of slasher allowing the deck to float over undulating terrain
• Adjustable cut height
• Front and rear stone guards as well as clutch/PTO cover for safety
• Backed by Hayes field knowledge, technical support and stock of consumables and spare parts







---

Hayes Products
Tough gear built for hard work.

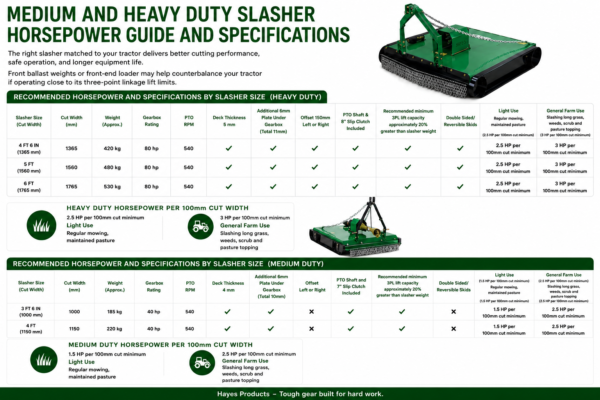

Specifications



Horsepower	18-40hp
Cut Width	1,150mm
Cut Height	30mm, 65mm, 100mm, 135mm
Offset	N/A
Gear box	40hp
Deck thickness	4mm
Hitch pins	CAT 1
PTO rpm	540
Overall width	1,300mm
Length	1,560mm
Weight	220kg





• The PTO shaft is included in the price
• The gear box requires oil, to ensure the unit is filled in the correct location, to the correct level with the correct oil we suggest having us fill it at a charge of $20 inc gst
• The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
• 12 months manufacturing warranty (Excludes consumables such as blades & belts) and 24 months gearbox warranty
