16″ Bed former Spare – Disc, Hub, Arm, Bearing & U-bolts assembly

$390 inc gst

SKU: 36911 Capacity: - Categories: ,

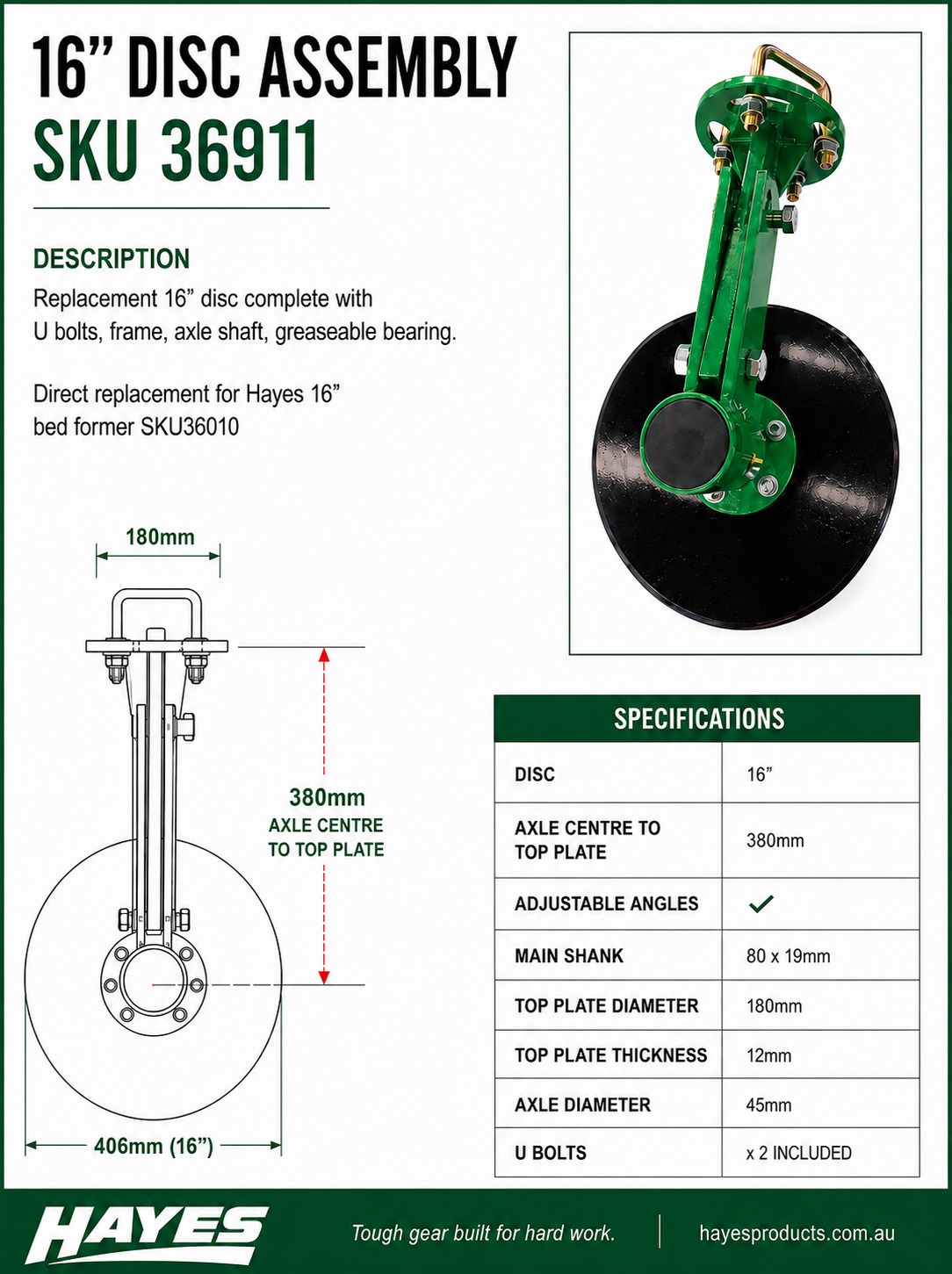

Hayes 16 inch disc assembly with frame axle bearing and U-bolts for bed former SKU 36911

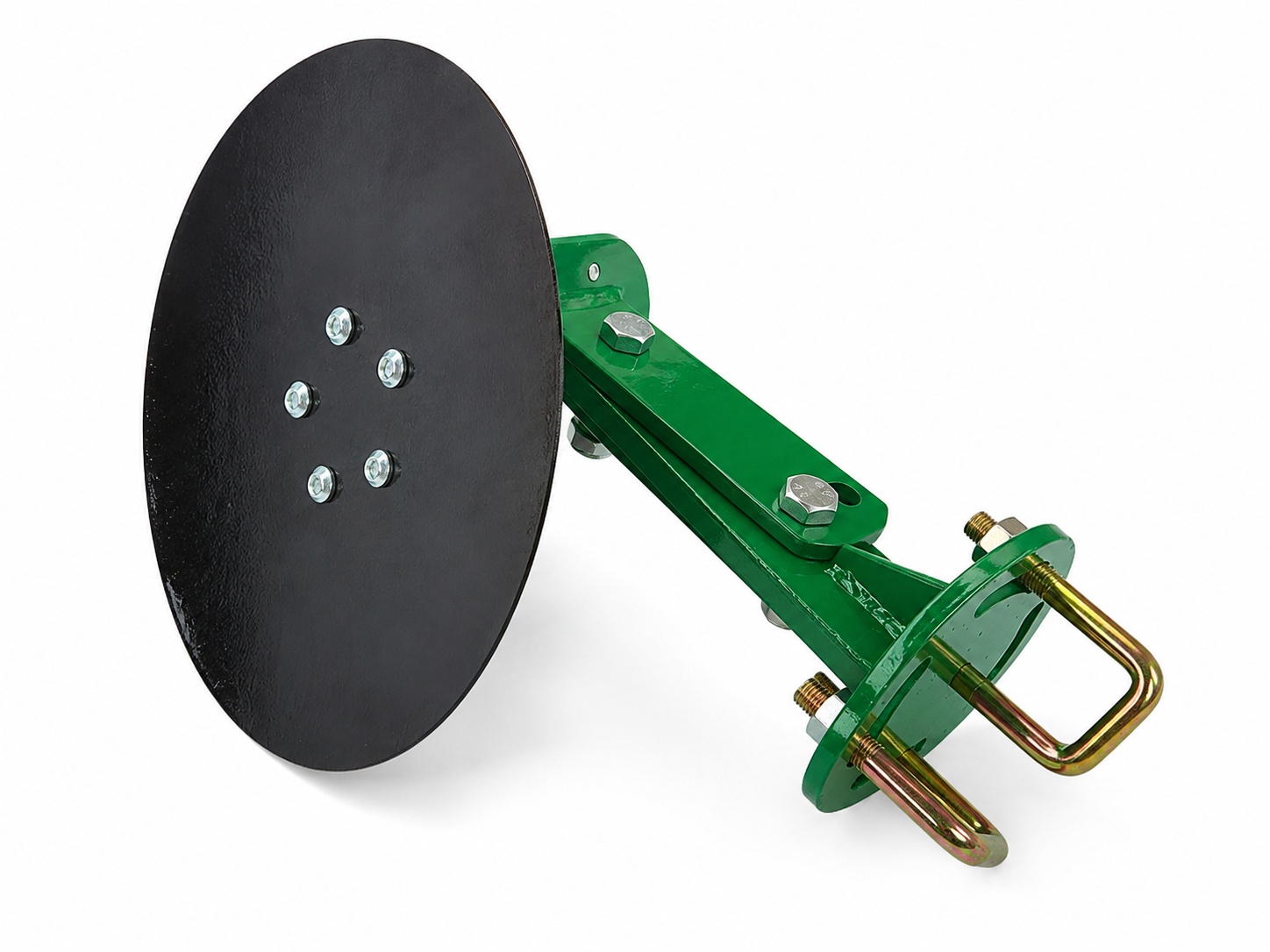

Hayes 16 inch bed former disc assembly, adjustable replacement assembly, SKU 36911

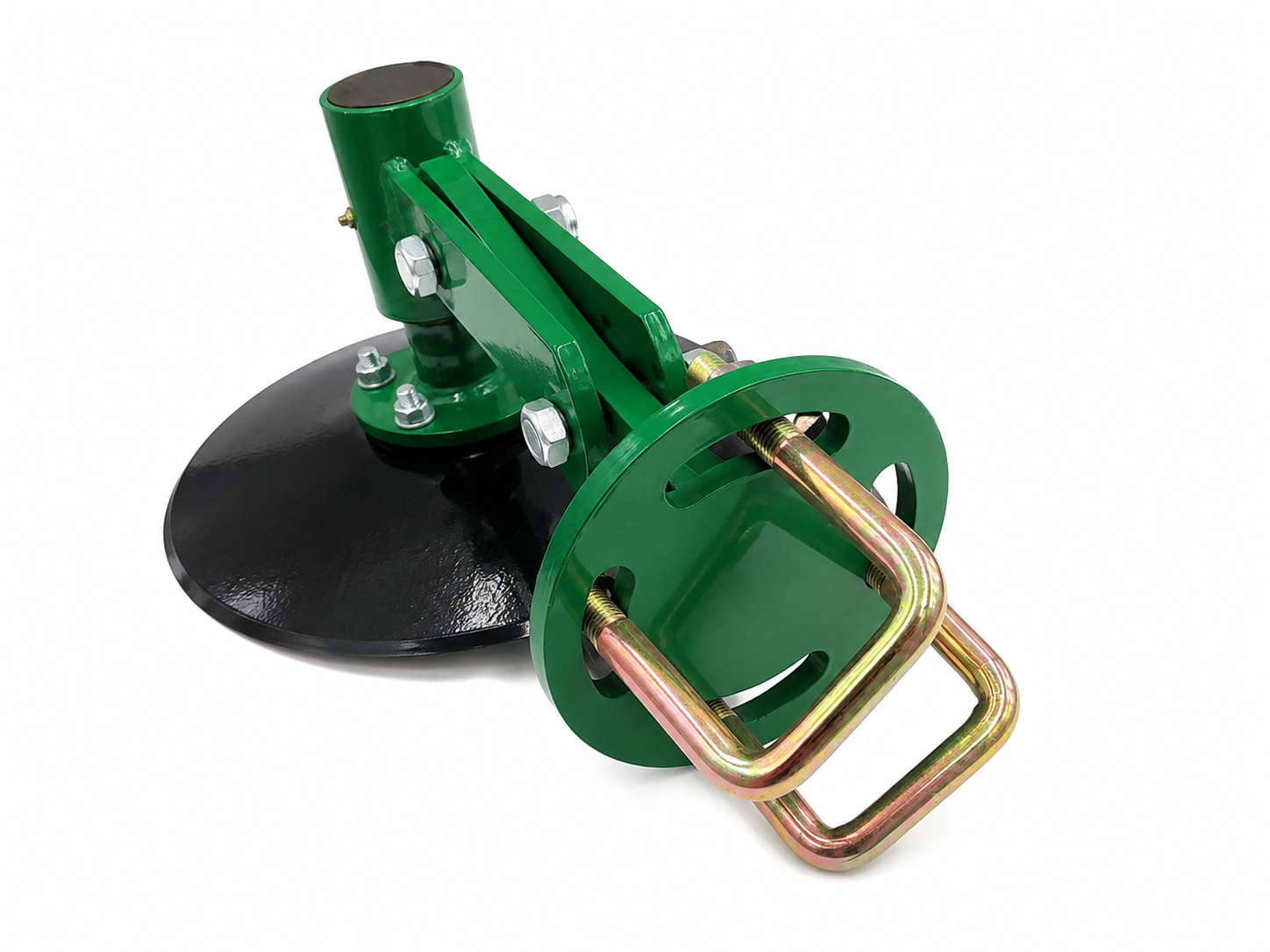

Hayes 16 inch bed former disc assembly with frame, axle, bearing and U-bolts, SKU 36911, alternate view

Description

Replacement 16″ disc assembly to suit Hayes 16″ bed formers. Complete assembly supplied with disc, frame, axle shaft, greaseable bearing and 2 U-bolts. Features adjustable disc angles for correct setup and positioning.

Direct replacement for Hayes 16″ Bed Former SKU 36010.

Specifications:

  • Disc Diameter: 16″ / 406mm
  • Axle Centre to Top Plate: 380mm
  • Main Shank: 80 x 19mm
  • Top Plate Diameter: 180mm
  • Top Plate Thickness: 12mm
  • Axle Diameter: 45mm
  • Adjustable Angles
  • 2 x U-Bolts Included
  • SKU: 36911
