26 INCH TRAILING OFFSET

Original price was: $18,000.Current price is: $7,900. inc gst

SKU: 33230 Capacity: 75-165hp Categories: ,
Sale!
26 INCH TRAILING OFFSET
26 INCH TRAILING OFFSET - Image 2
26 INCH TRAILING OFFSET - Image 3
26 INCH TRAILING OFFSET - Image 4
26 INCH TRAILING OFFSET - Image 5
26 INCH TRAILING OFFSET - Image 6
26 INCH TRAILING OFFSET - Image 7
26 INCH TRAILING OFFSET - Image 8

Description

Our heavy-duty 26″ Trailing Disc Harrow is designed for demanding cultivation applications, featuring a heavy-duty frame, large diameter discs and a robust trailing design for excellent penetration and residue incorporation.

Specifications

Specification Details
Maximum Tractor Horsepower 165 HP
Minimum Practical Tractor Size 75 HP
Recommended Tractor (Average Conditions) 75–120 HP
Hard, Dry or Compacted Soil 120–165 HP
Working Width 2,800 mm
Disc Quantity 24
Disc Diameter 26″ (660 mm)
Disc Thickness 8 mm
Disc Spacing 230 mm
Main Frame 120 × 120 × 10 mm RHS
Gang Support 120 × 120 × 10 mm RHS
Hitch Type Trailing
Weight Approximately 2.5 tonnes
Shipping Dimensions (Hitch Removed) 4,360 mm (L) × 2,880 mm (W) × 1,200 mm (H)
Shipping Dimensions (Including Hitch) 5,820 mm (L) × 2,880 mm (W) × 1,200 mm (H)

Shipping Information

  • Shipping dimensions shown above are for both with and without the hitch fitted.
  • Shipping dimensions can be reduced further if the harrow is partially disassembled.
  • Please contact our team for final shipping dimensions if disassembly is required.
  • Due to its size, this product cannot be shipped through Hayes Products’ standard freight network.
  • The assembled unit is oversized for conventional freight transport.
  • Customers will need to arrange their own transport.
  • We recommend obtaining freight quotes before purchasing.
  • Hayes Products can assist with loading your transport upon collection.

Clearance Special

The recommended retail price was $18,000. These final two units are now being offered at a below-cost clearance price, presenting an exceptional opportunity to purchase a heavy-duty trailing disc harrow at a fraction of its original retail value.

Only Two Units Remaining

Unit 1

  • Excellent condition.
  • Ready for assembly.

Unit 2

  • Our long-term display unit.
  • Has been stored outdoors for several years.

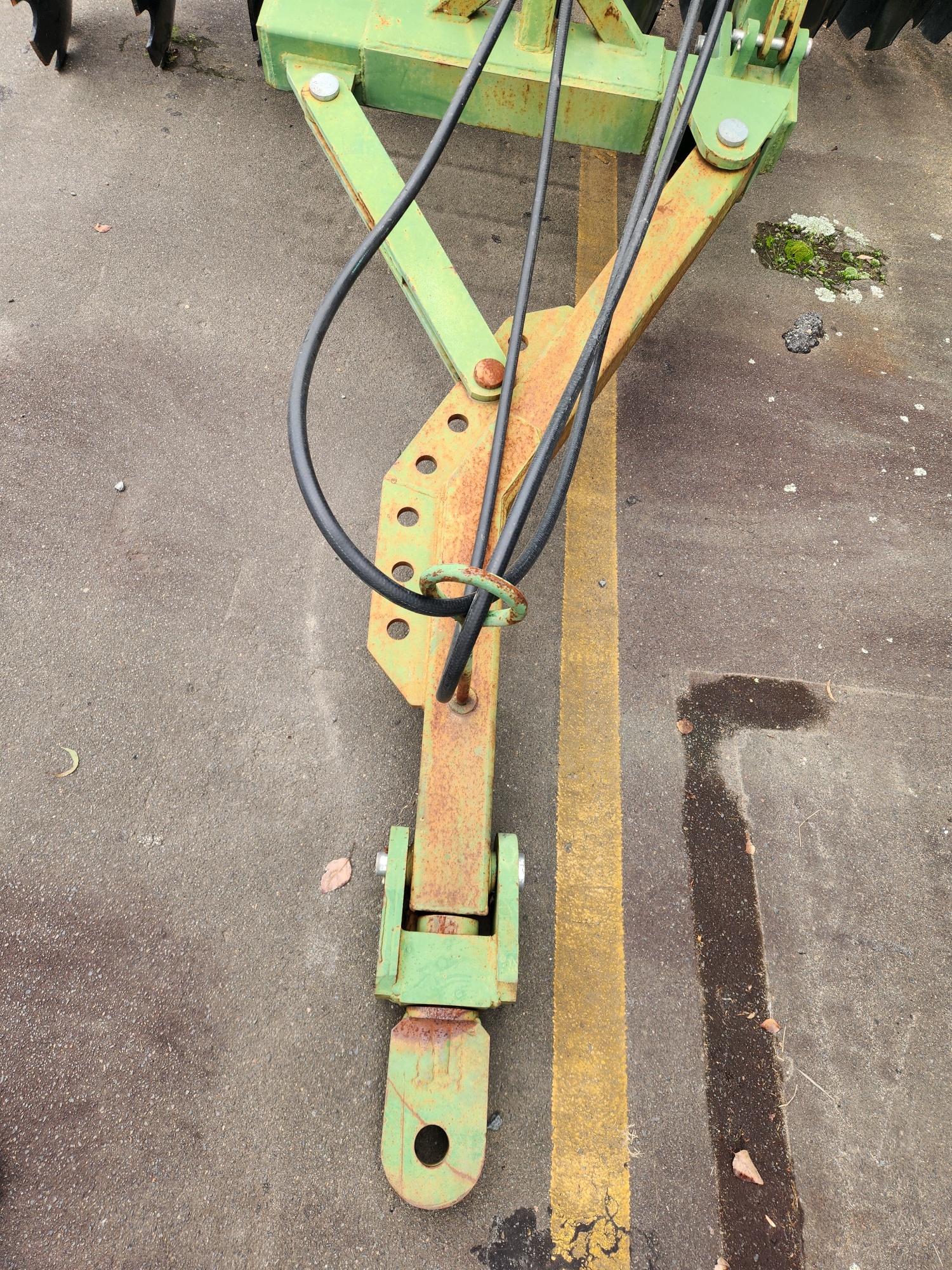

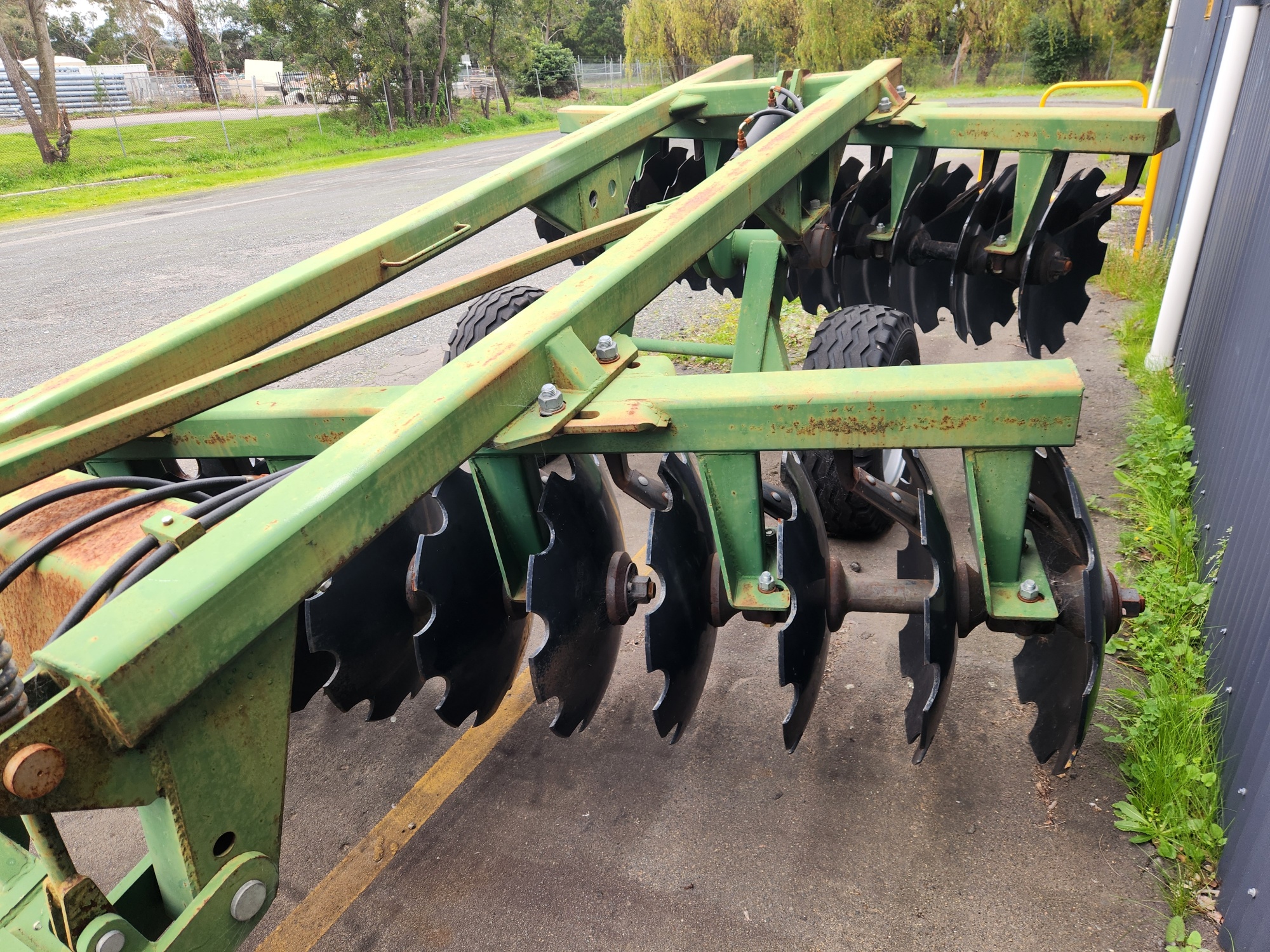

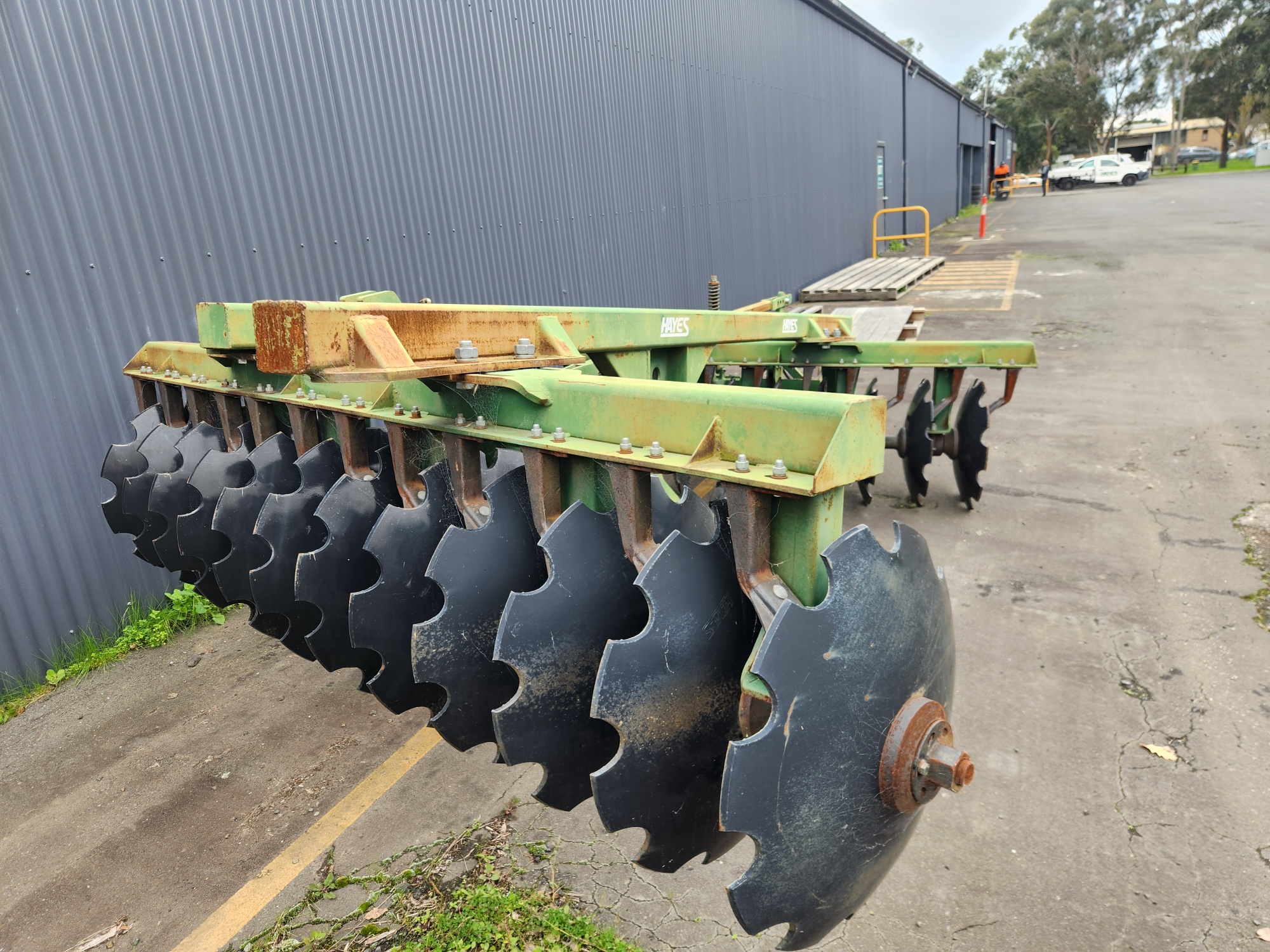

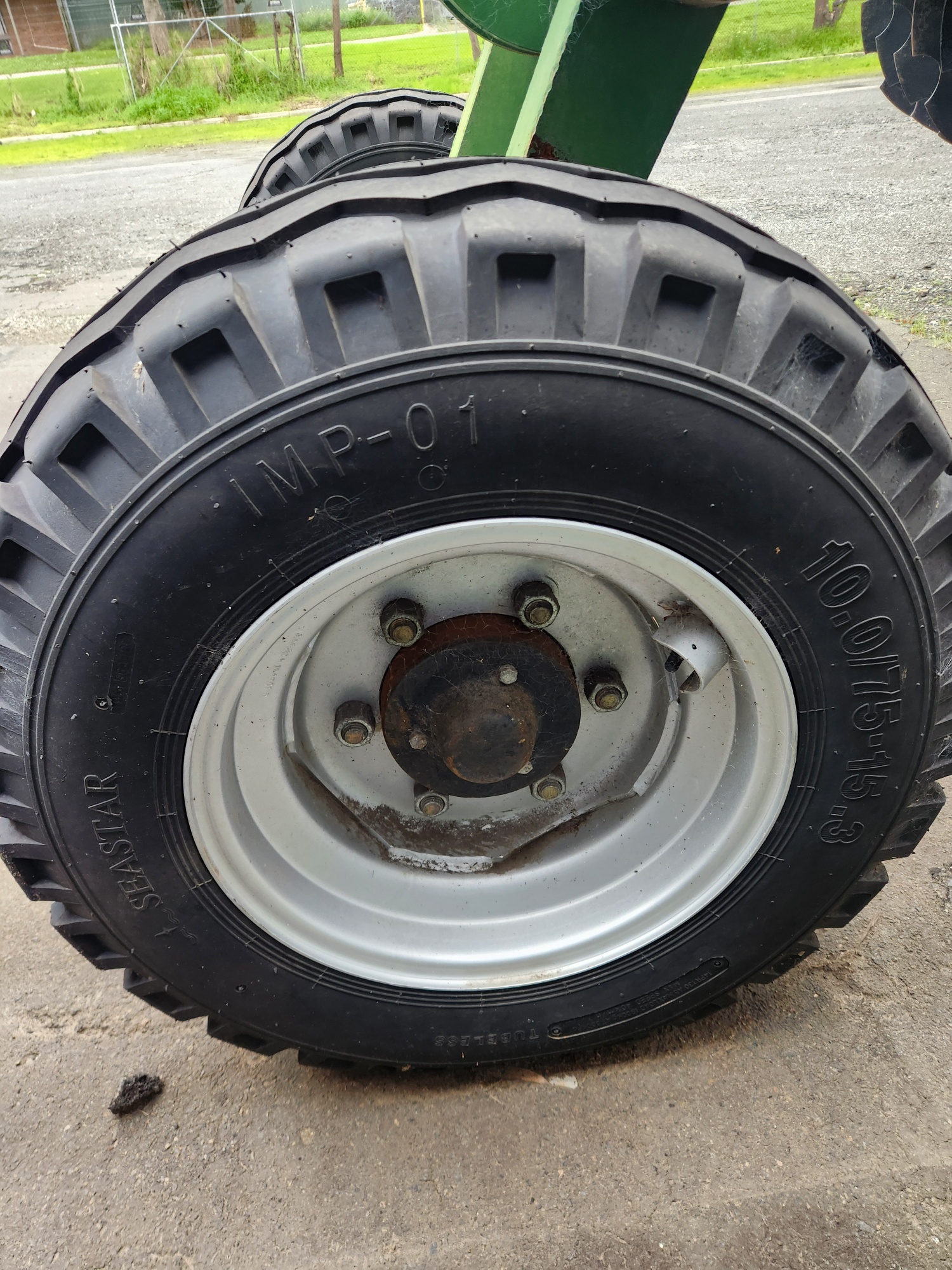

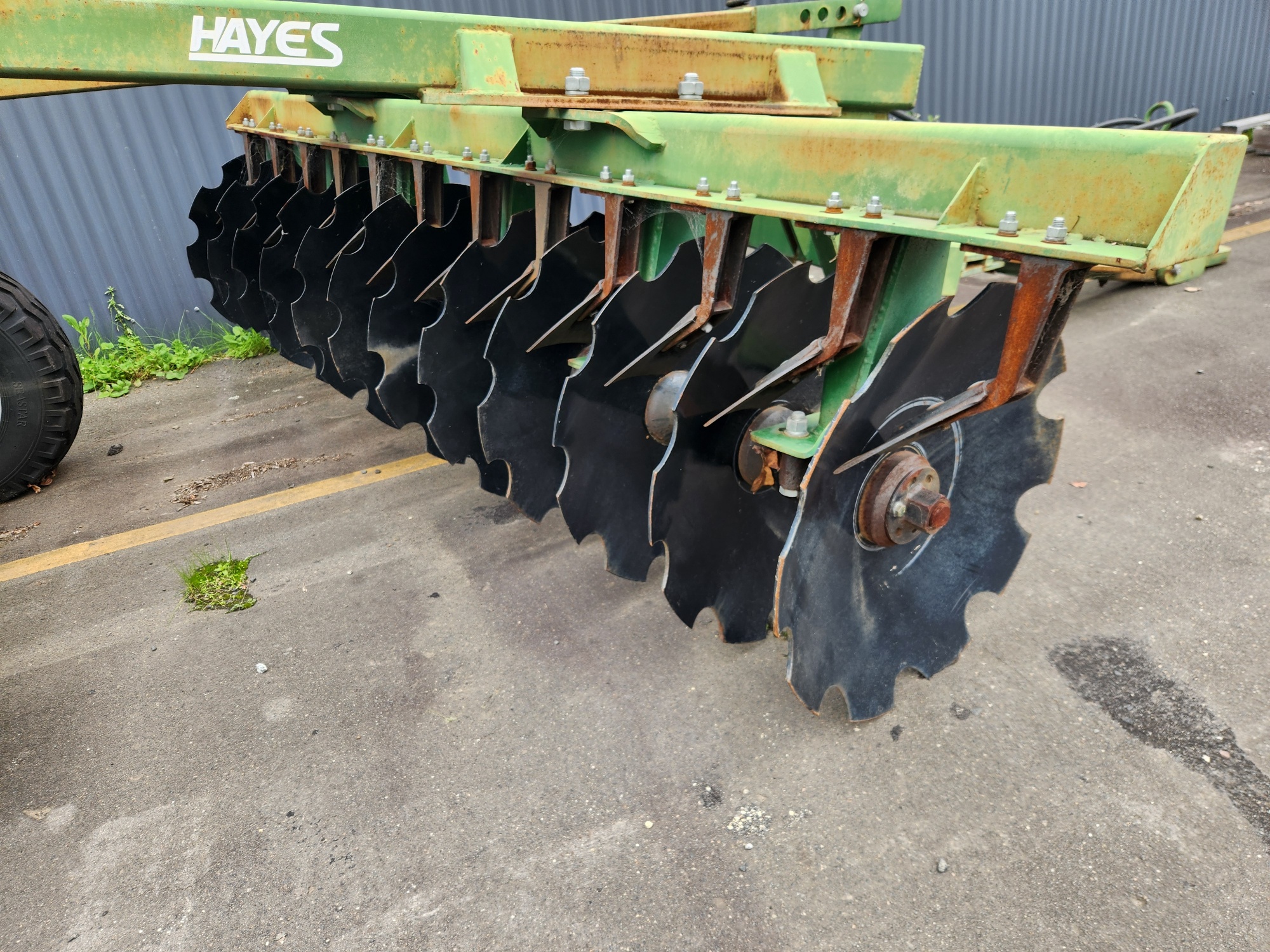

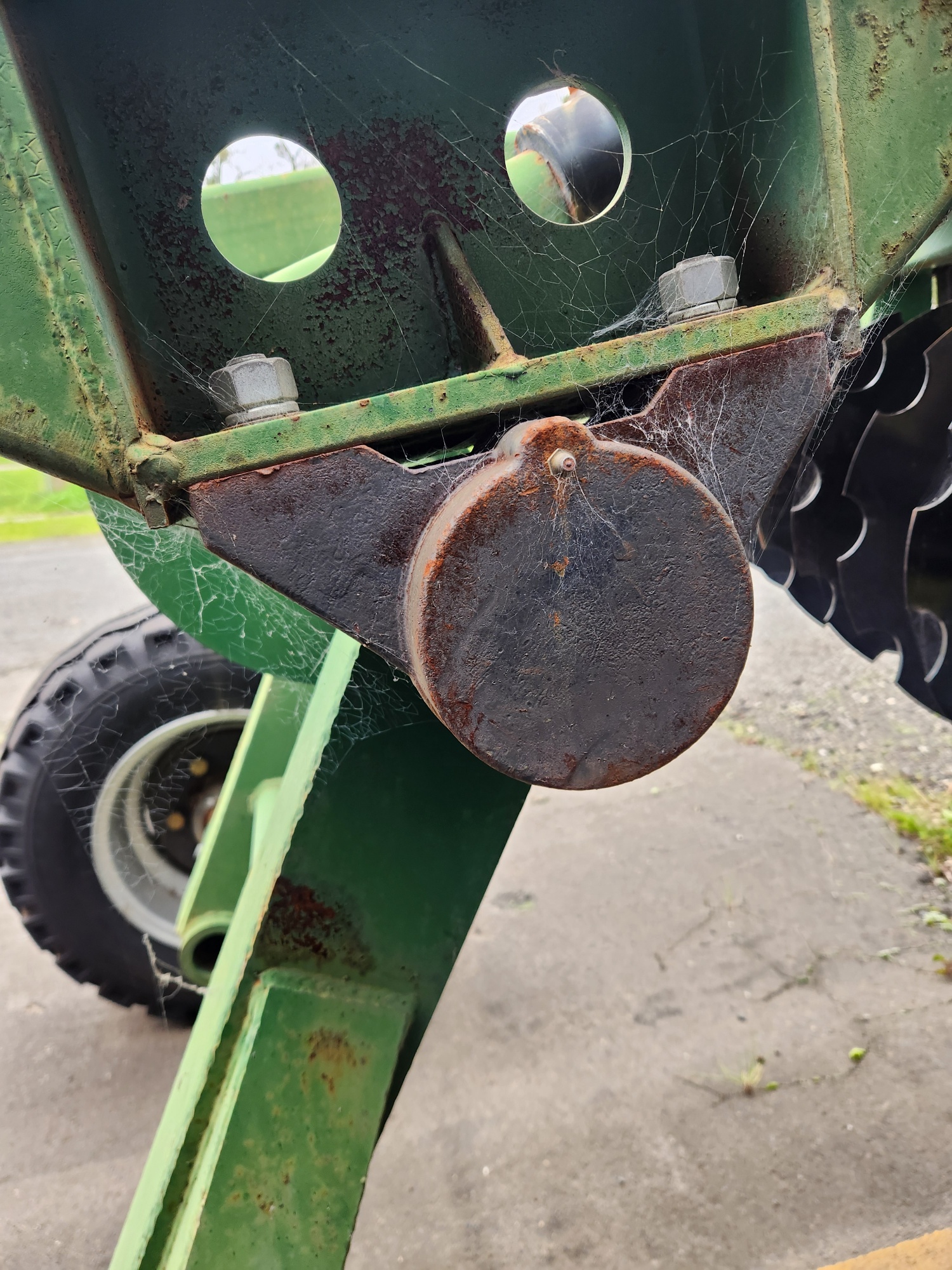

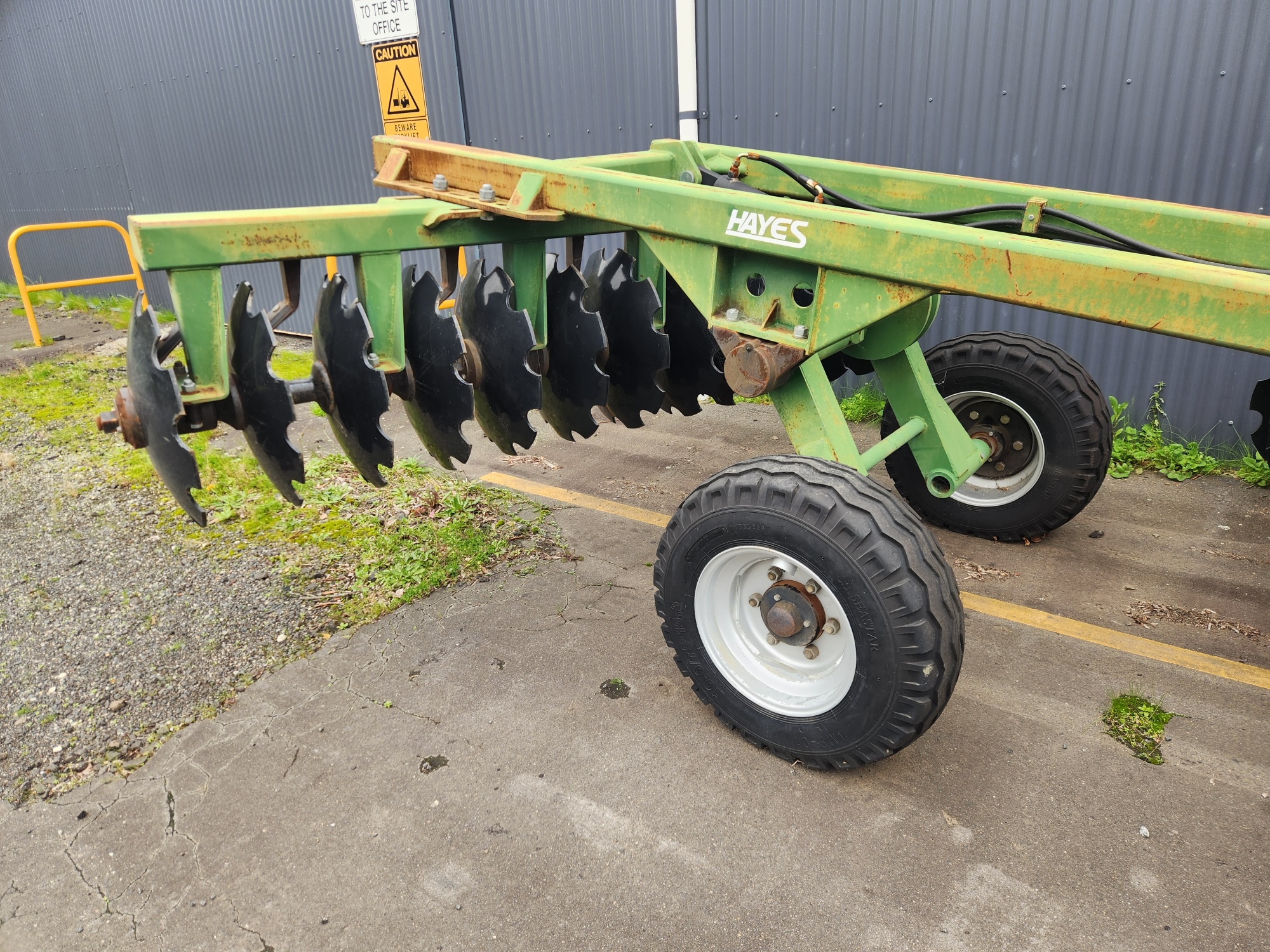

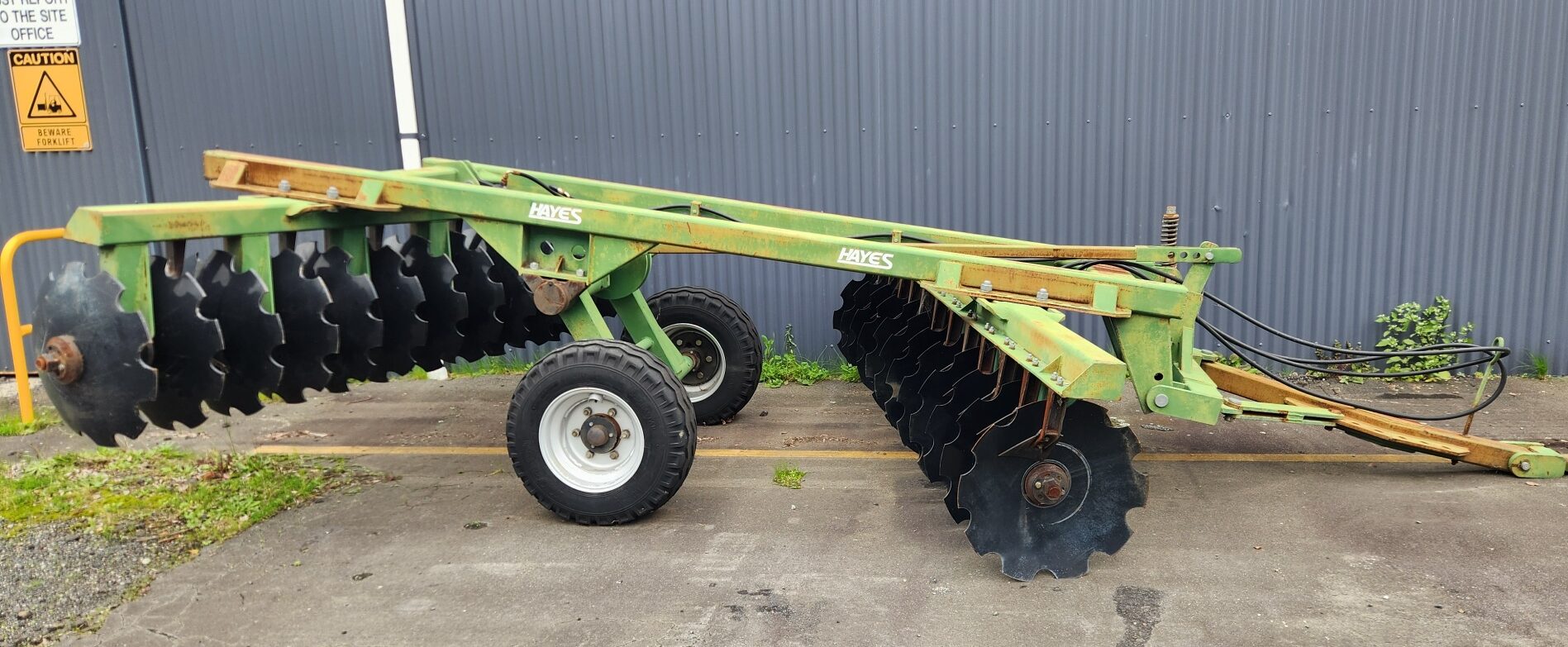

  • Weathered cosmetic condition, as shown in the photos.
  • Structurally sound and represents exceptional value at this below-cost clearance price.

Notes

  • Tractor horsepower recommendations are based on engine horsepower, not PTO horsepower.
  • Do not exceed the maximum recommended tractor horsepower of 165 HP.
  • Tractor weight, ballast and traction are just as important as horsepower when operating heavy tillage equipment.
  • Working depth, soil type and moisture content will all influence draft requirements.
  • The recommended horsepower ranges are intended as a guide only and assume a suitably ballasted tractor in good operating conditions.
  • Warranty 12 months – excluding consumables
