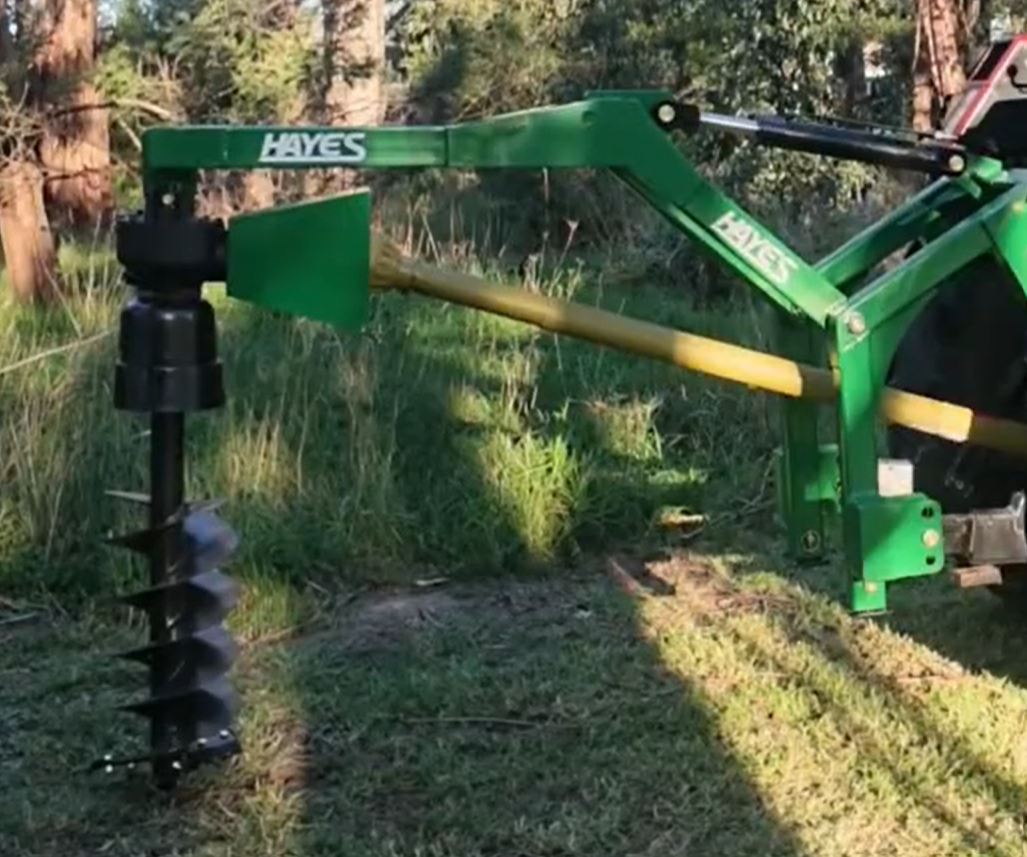

POST HOLE DIGGER – EXTRA HEAVY DUTY INDEPENDANT FRAME HYDRAULIC ASSIST 12 inch auger

Description



• PTO shaft fitted with a six inch slip clutch to protect the gearbox
• Digging depth of up to 1,050mm
• Multiple height settings to ensure the post hole digger will suit your tractor
• Full range of auger sizes available from 6 – 18inch Augers with replaceable cutting teeth and pilot tips

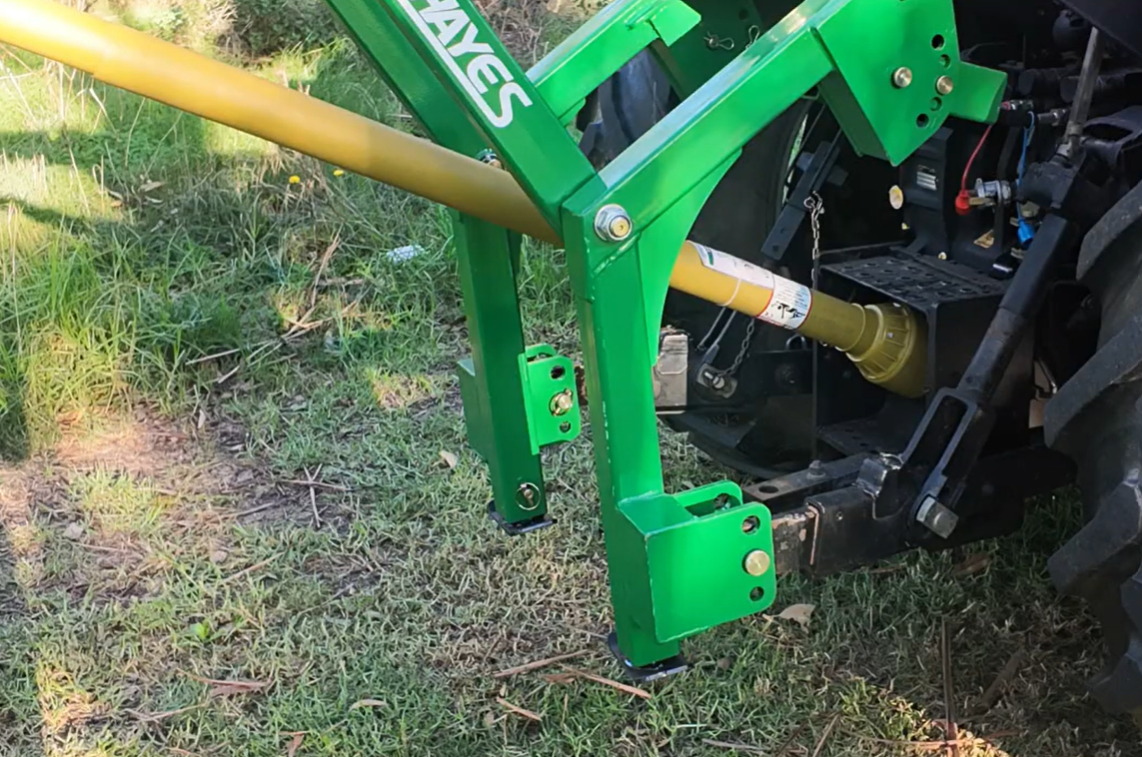

• Oversized RHS independent frame with additional reinforcement – a independent frame means once sent up on your tractor it doesn’t rely on your tractors’ 3PL geometry. This is suitable for all 3 point linkages weather you have traditional rock shaft hydraulics where your lower arms naturally float or tractors with external hydraulic rams on their lower arms. We have found tractors fitted with external hydraulic rams on their lower arms are slow react to geometry changes and struggle to keep up with the movement of the post hole digger.  This design solves this problem. If your tractor is fitted with external hydraulic rams on your lower arms, this is the only hydraulic digger in our range that is suitable for you.
• Backed by Hayes field knowledge, technical support and stock of consumables and spare parts



* Given the larger size of the extra heavy duty post hole diggers they are generally not compatible with the geometry of smaller sub compact tractors under 35hp, for these tractors the medium duty post hole digger will be ideal



Specifications



Horsepower	45-100hp
Digging depth	1,050mm
Auger fitting	2 inch round
Boom	100 X 100mm
Gearbox ratio	3:1
Hyd fittings	1/2 inch male
Hitch pins	CAT 1 & 2
PTO rpm	540
Weight





• The PTO shaft is included in the price
• The gearbox requires oil (we can supply a 2.5 litre bottle of  Penrite 85/140 for an additional $25)
• The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required
• 12 months manufacturing warranty (Excludes consumables such as cutting teeth, etc.) and 24 months gearbox warranty
