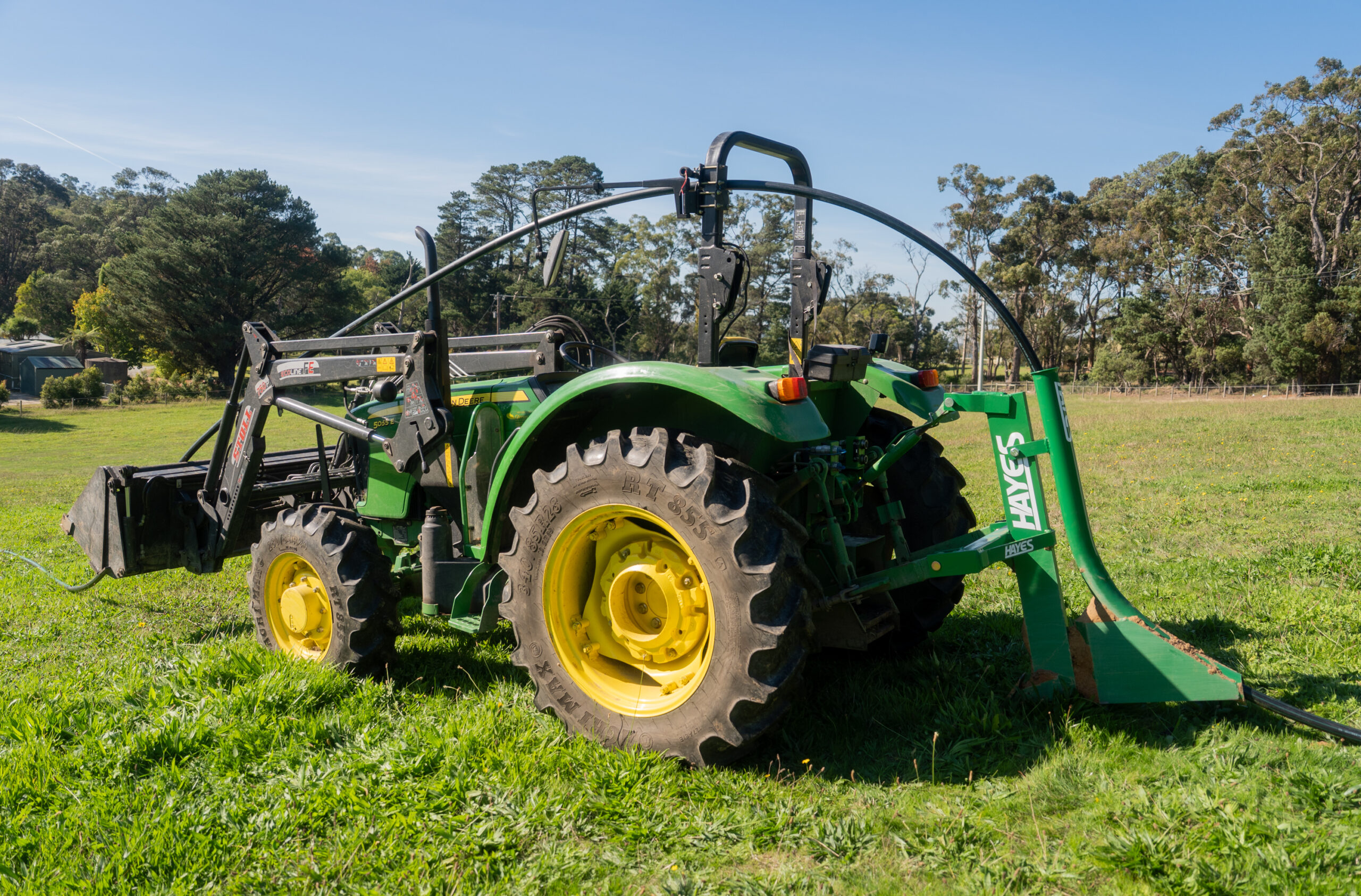

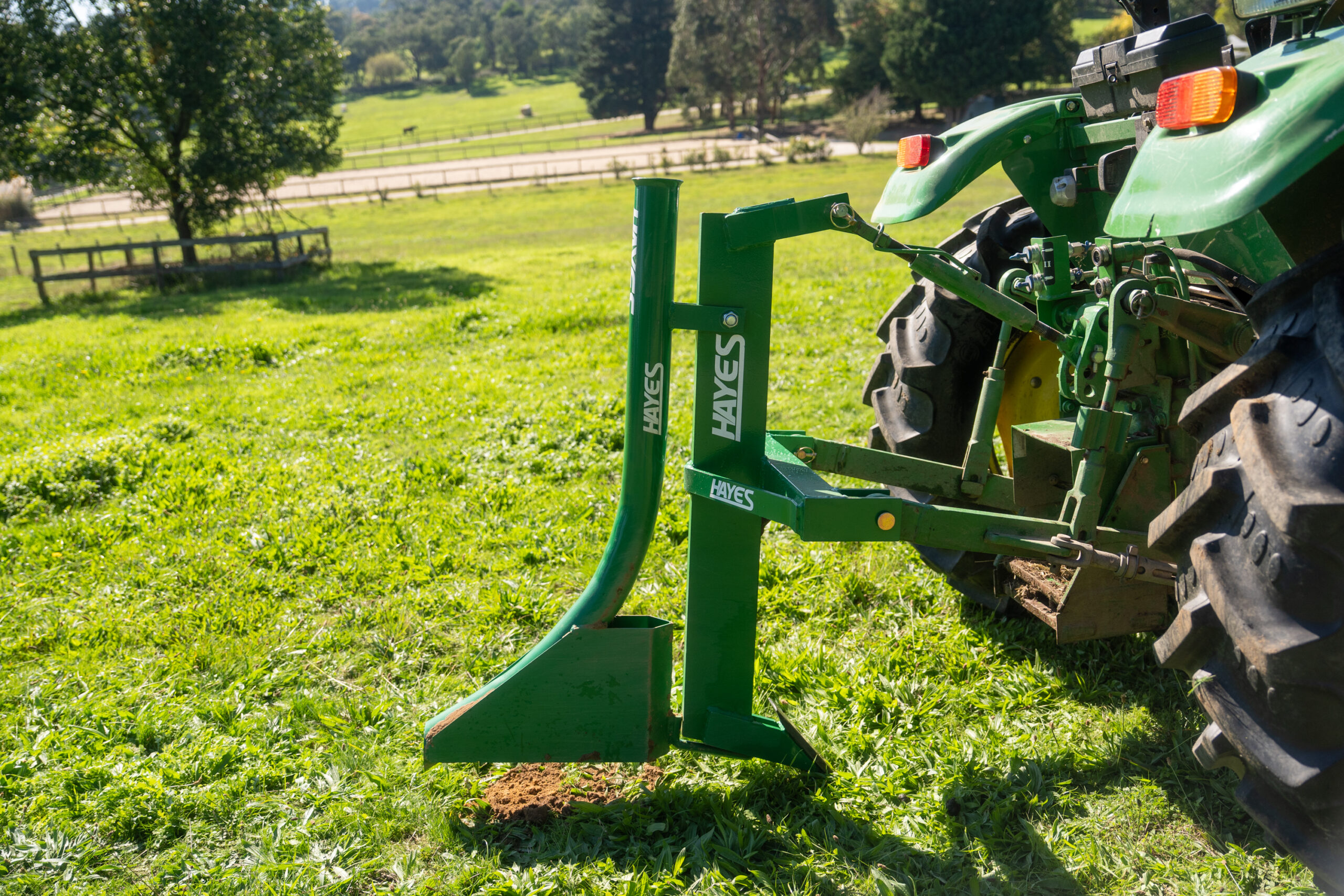

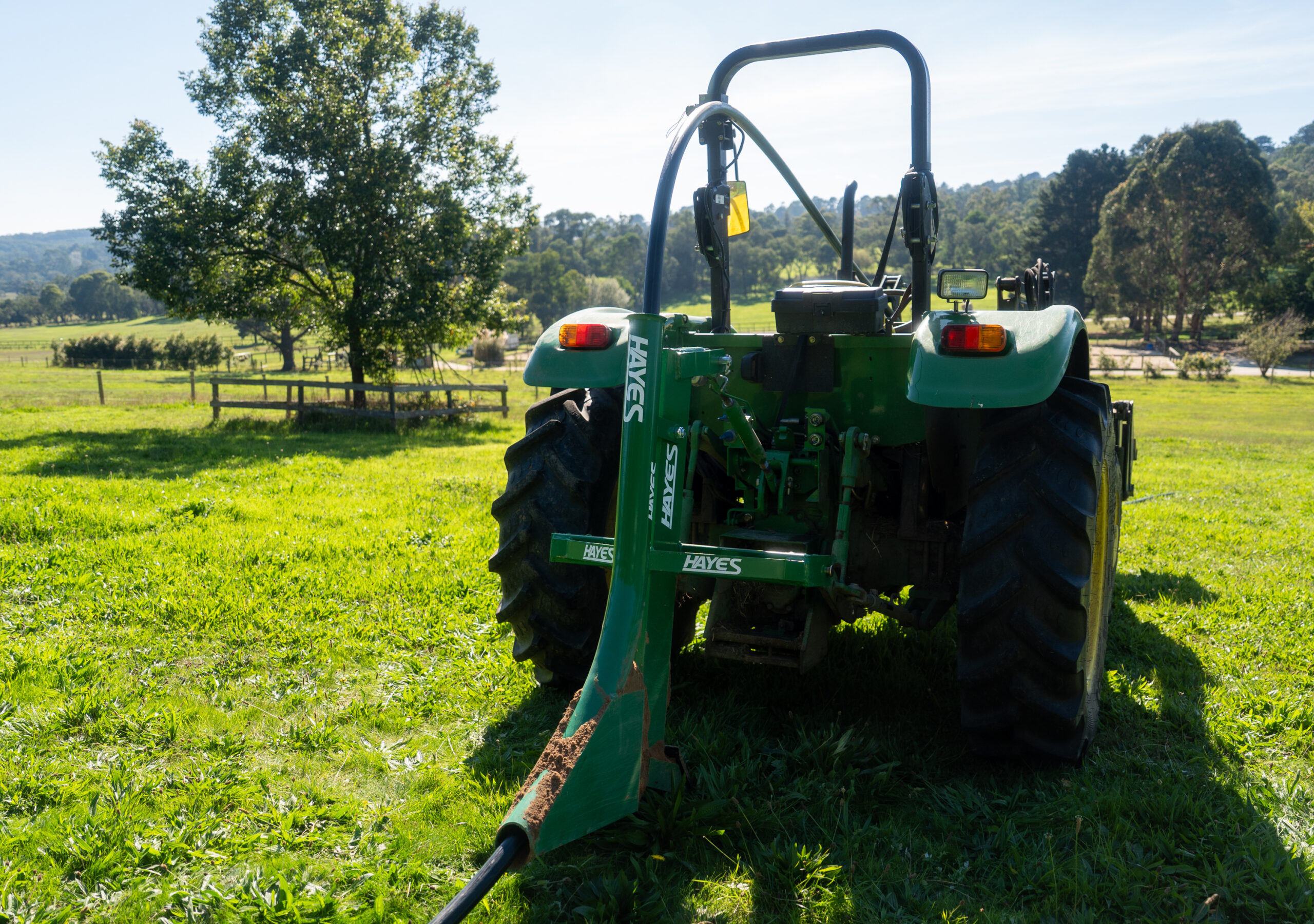

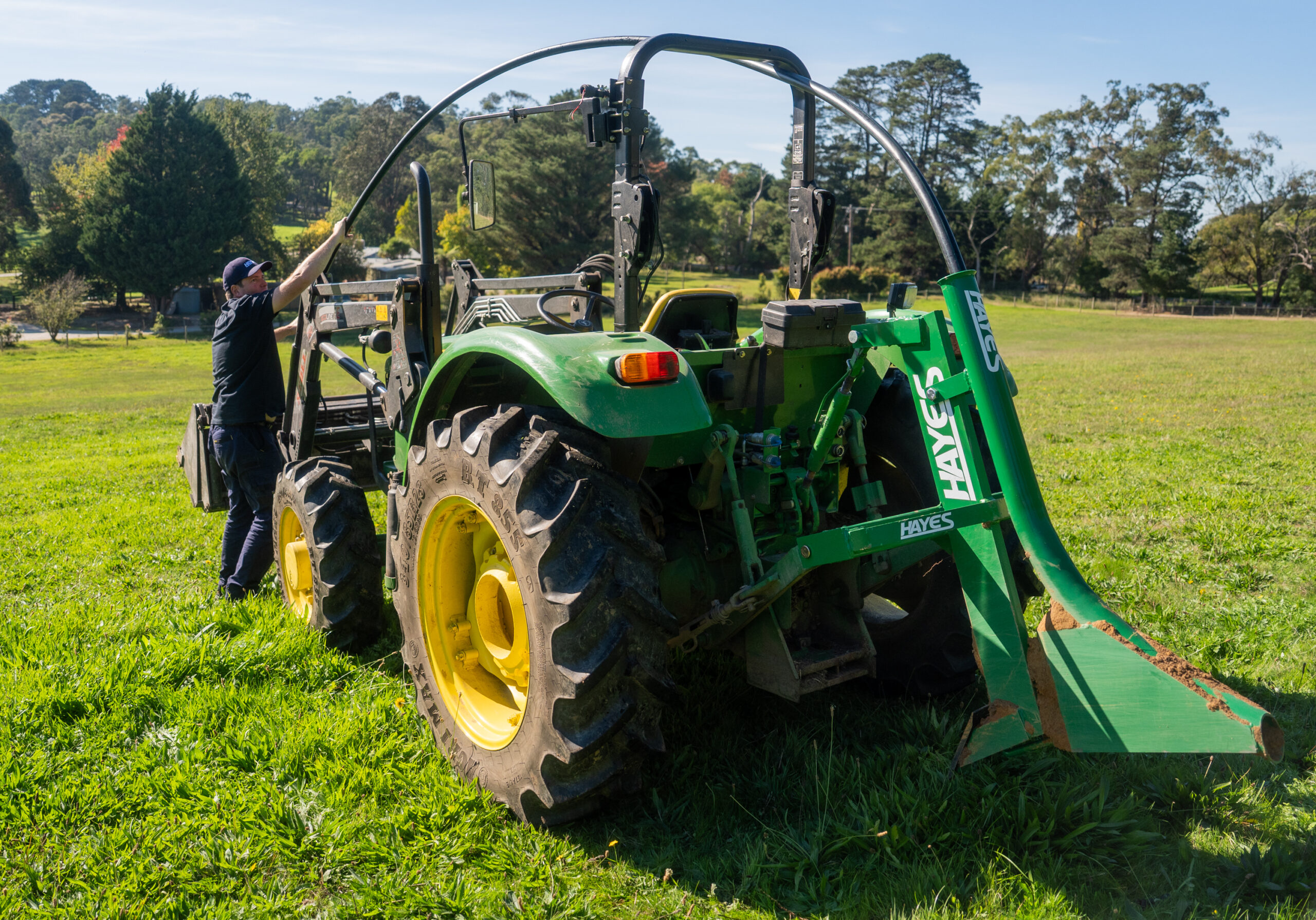

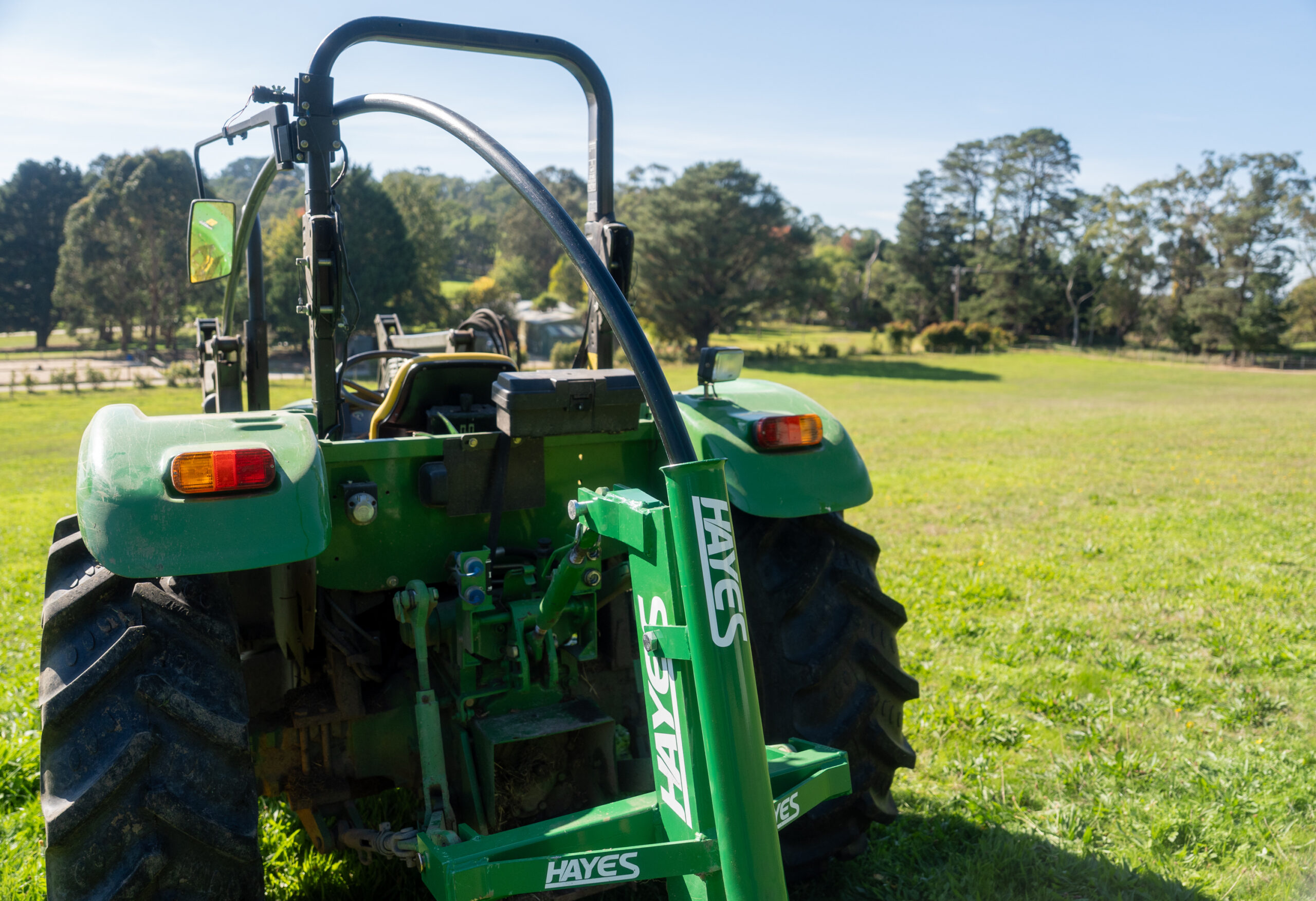

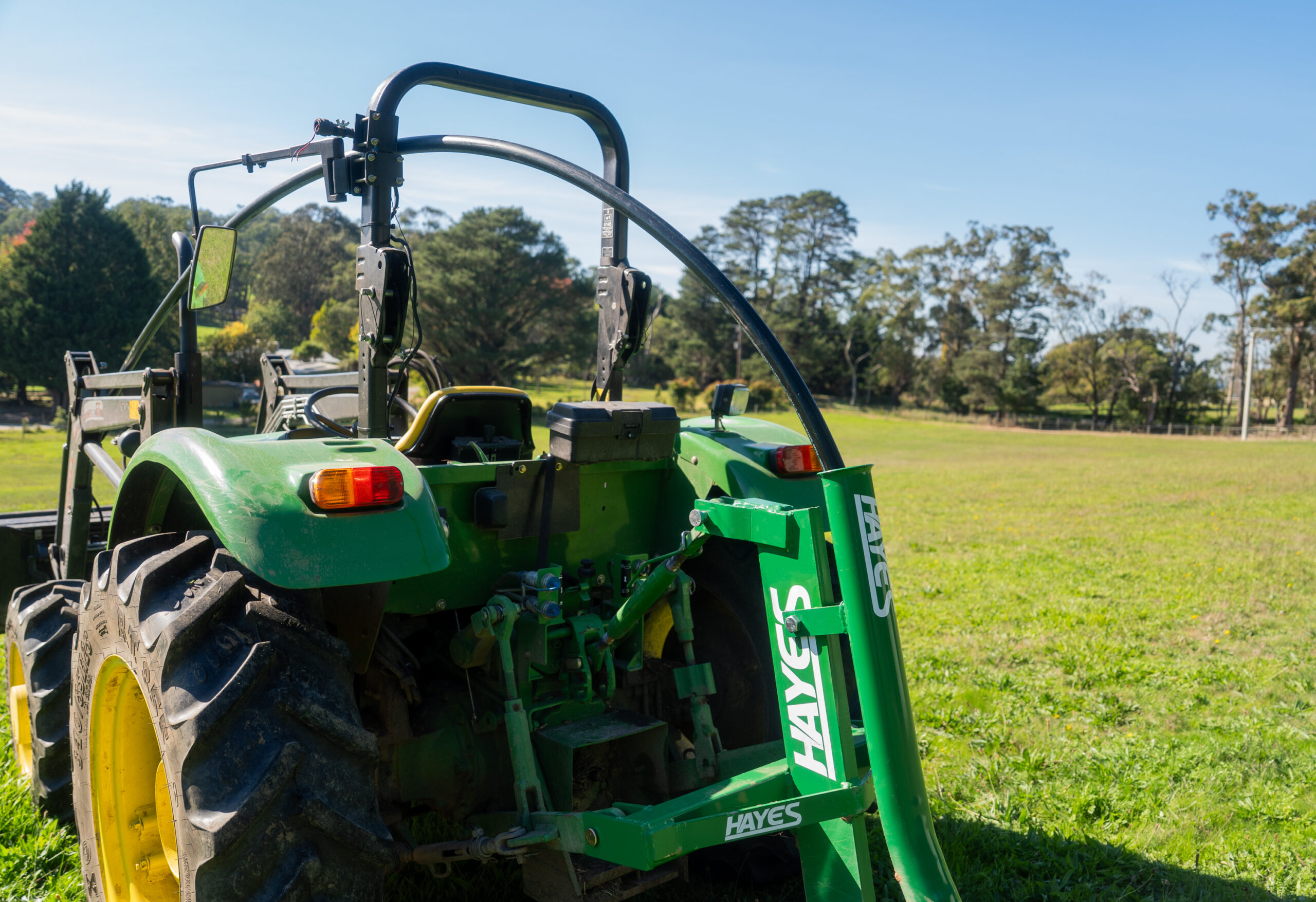

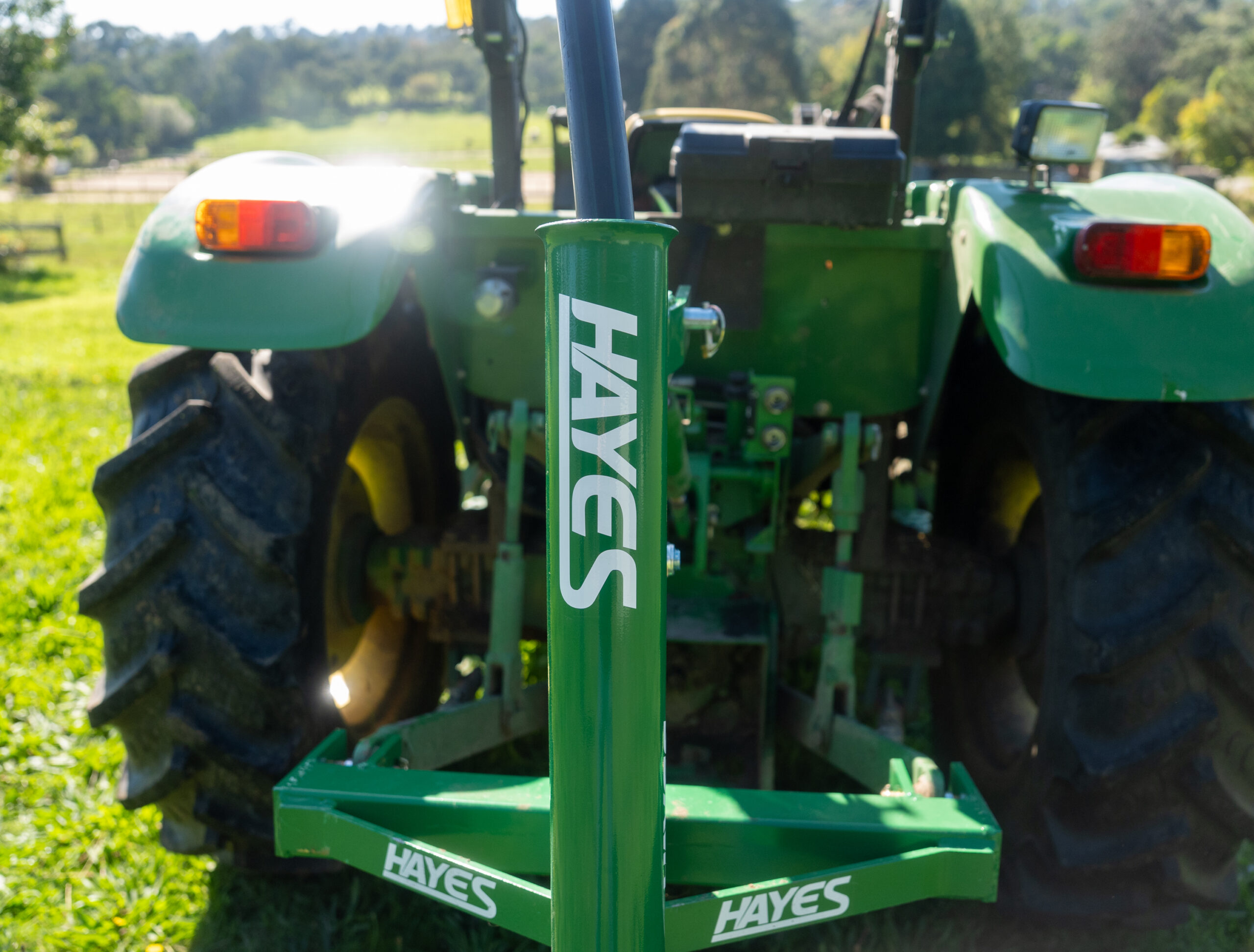

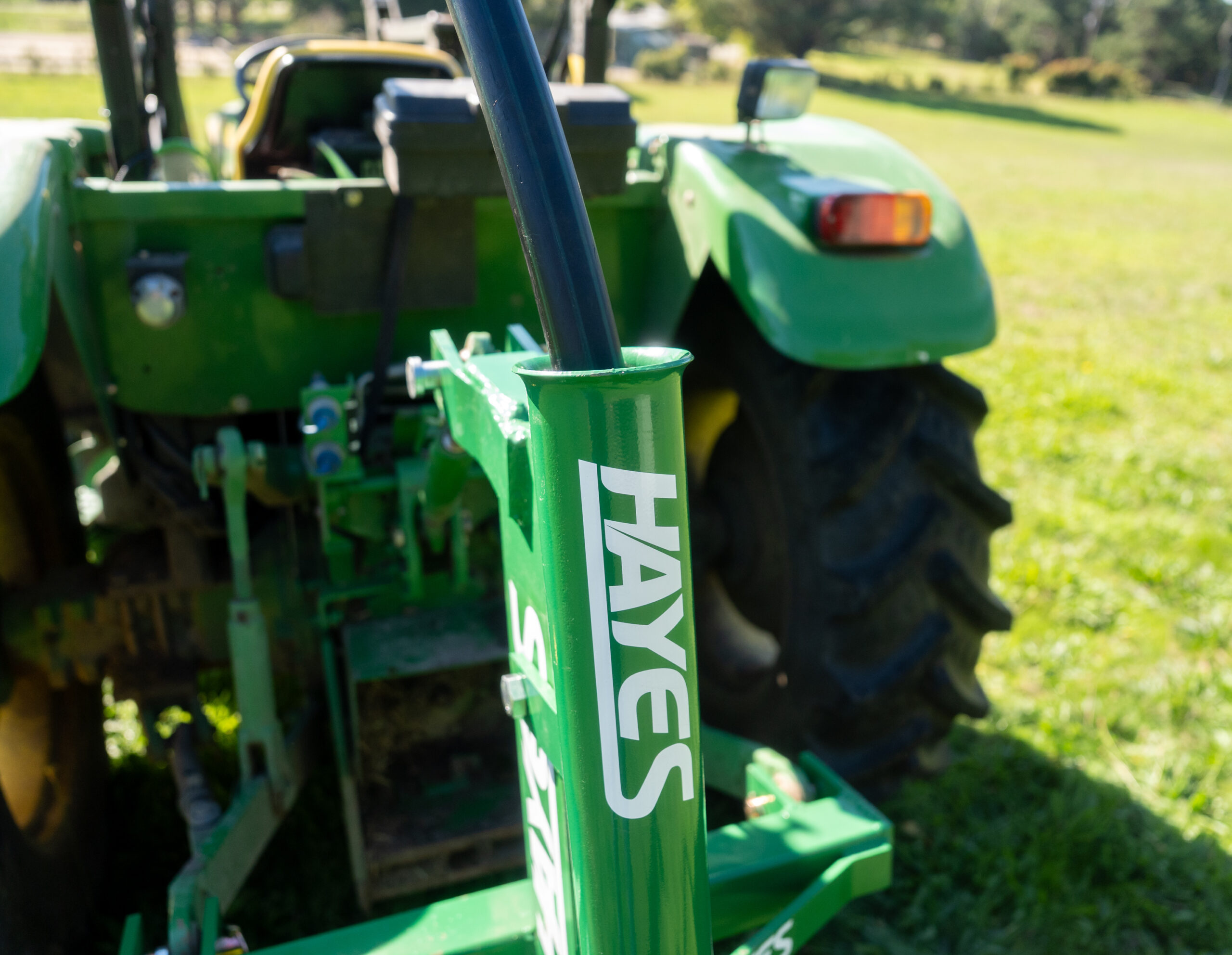

HEAVY DUTY RIPPER WITH PIPELAYER

Description

• Rated for tractors from 40-80hp
• Reversible cutting tooth
• Can be converted to Cat 2 using our Shim Kit
• Approx. ripping depth 580mm (Assuming tractors lower 3PL arms go down to 200mm)

Ripper with Pipe Layer Tractor Horsepower Guide

Tough Gear Built for Hard Work

Choosing the correct tractor size helps achieve the best ripping performance while maintaining good traction and safe operation. The recommendations below are based on average Australian soil conditions. Hard, dry or compacted ground may require a larger tractor.

Model	Maximum Horsepower	Pin Size	Solid Steel Billet Shank	Maximum Rip Depth (Lower Link Pin to Tooth Tip)	Total Height	Maximum Pipe Size OD	Pipe Layer Opening ID	Weight	Recommended Tractor Average Conditions	Hard, Dry or Compacted Soil
Medium Duty Ripper with Pipe Layer	40 HP	Category 1	100 × 25 mm	440 mm	1,010 mm	32 mm	50 mm	54 kg	15–35 HP	35–40 HP
Heavy Duty Ripper with Pipe Layer	80 HP	Category 1	150 × 35 mm	780 mm	1,320 mm	50 mm	80 mm	90 kg	40–60 HP	70–80 HP
Extra Heavy Duty Ripper with Pipe Layer	120 HP	Category 2	150 × 50 mm	900 mm	1,550 mm	50 mm	80 mm	155 kg	60–80 HP	90–120 HP

Notes

• Tractor horsepower recommendations are based on engine horsepower, not PTO horsepower.
• Do not exceed the maximum recommended tractor horsepower for each implement.
• Good traction is just as important as horsepower. Four-wheel drive and suitable ballast will improve ripping performance.
• Performance will vary depending on soil type, moisture content, ripping depth and available traction.
• The Recommended Tractor – Average Conditions column is intended as a guide for normal Australian soil conditions.
• The Hard, Dry or Compacted Soil column indicates the tractor horsepower recommended when working in more demanding ground conditions. These recommendations do not exceed the implement’s maximum horsepower rating.
• In softer or previously worked ground, many tractors can comfortably operate below the upper end of the recommended range.
• Choosing a tractor with adequate weight and traction will often improve ripping performance as much as additional horsepower.

Hayes Products
Tough Gear Built for Hard Work



* Due to its size please ensure that your tractors 3PL can lift over 780mm high



Specifications



Horsepower	40-80hp
Lower pin centers to ripping tip	780mm
Max Pipe Size (OD)	50mm OD
Solid Steel Billit Shank	150 x 35mm
Pipelayer opening (ID)	80mm ID
Weight	90kg
Total Height	1320mm



• Warranty – 12 months (excluding cutting tooth)
• Top Pin not supplied – can be purchased separately
