PIN WITH R CLIP – SUIT BOX BLADE AND MULTI TINE RIPPER

$12 inc gst

SKU: 35920 Categories: , , ,
Pin with R clip for Hayes box blade and multi tine ripper, SKU 35920

Description



Box Scraper / Multi Tine Ripper Pin with R Clip – SKU 35920

Heavy-duty replacement pin suitable for Hayes box scrapers and multi-tine rippers. The 90° L-shaped design provides a secure fit while allowing easy removal when required.

Manufactured from high-strength steel and zinc plated for corrosion resistance. Supplied complete with R clip.

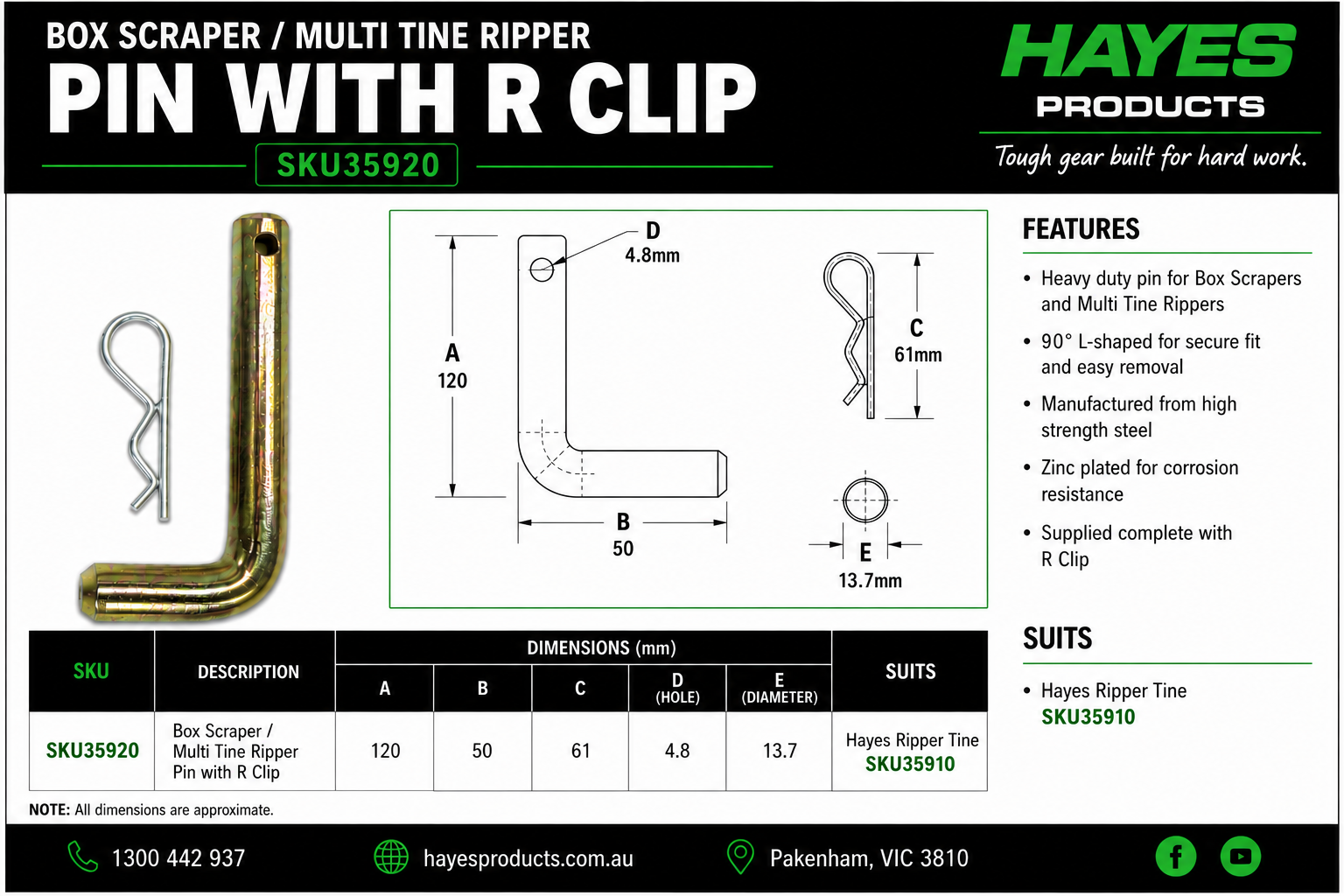

Specifications

  • Overall length (A): 120 mm
  • Leg length (B): 50 mm
  • R clip length (C): 61 mm
  • R clip hole diameter (D): 4.8 mm
  • Pin diameter (E): 13.7 mm
  • Material: High-strength steel
  • Finish: Zinc plated
  • Includes: R clip
  • SKU: 35920

Suits Hayes ripper tine SKU 35910.

All dimensions are approximate.

Weight 180gms each
